System Setup
3-40 LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 English Rev.8
3-7-3-8 ECG Installation
3-7-3-8-1 Tools
No special tools needed.
3-7-3-8-2 Manpower
One person 1 min.
3-7-3-8-3 Preparations
1. Unpack the ECG.
2. Ensure no physical damage.
3-7-3-8-4 Installation Procedure
1. Connect the ECG to the USB port on the LOGIQ V3/V5/V5
Expert system and the cables can be hang in the cable
hook.

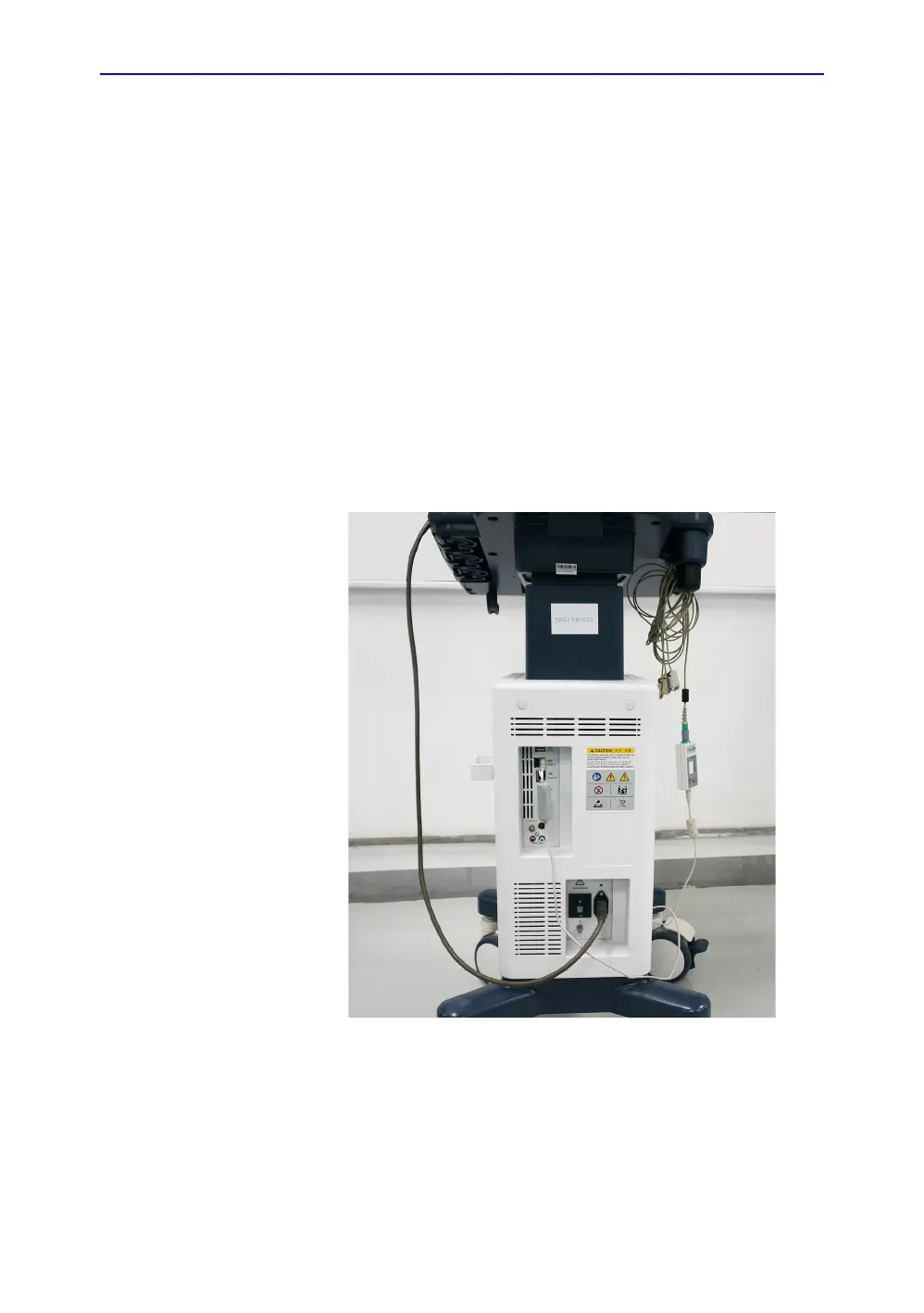

Figure 3-28. Connect ECG to the system
