Peripherals Installation
LOGIQ V3/V5/V5 Expert – Basic Service Manual 3-41
5726264-100 English Rev.8
3-7-3-9 DVDRW Installation
3-7-3-9-1 Tools
No special tools needed.
3-7-3-9-2 Manpower
One person 1 min.
3-7-3-9-3 Preparations
1. Unpack the DVDRW.
2. Ensure no physical damage.
3-7-3-9-4 Installation Procedure
1. Take out the DVDRW and USB Y cable and connect the
USB Y cable to the DVDRW.

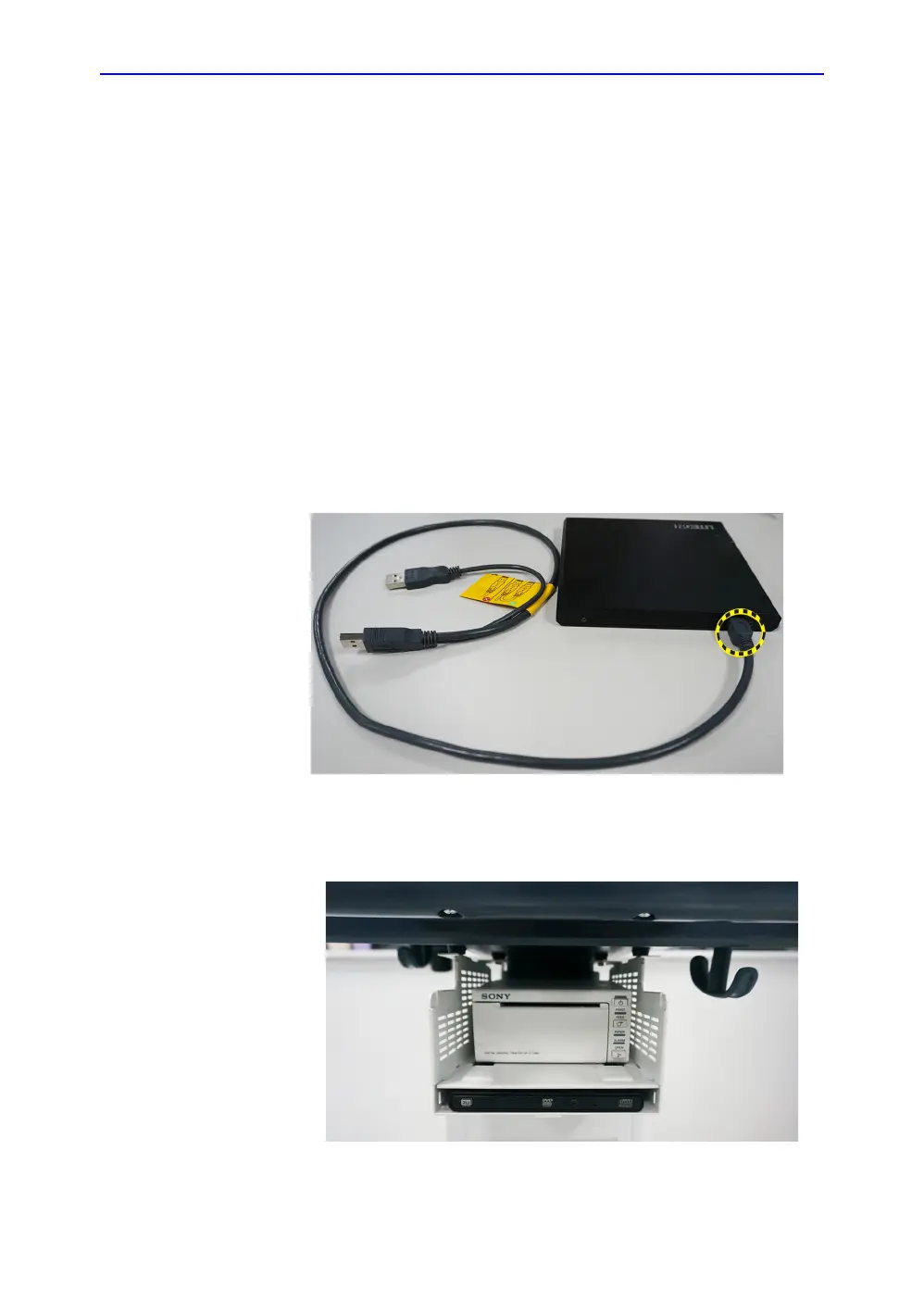

Figure 3-29. Connect Y cable
2. Insert the DVDRW in the printer shelf right below the printer.
Figure 3-30. Insert the DVDRW
To Next Page
