Positioning of the LP33 Series 20 & 30 Parallel System

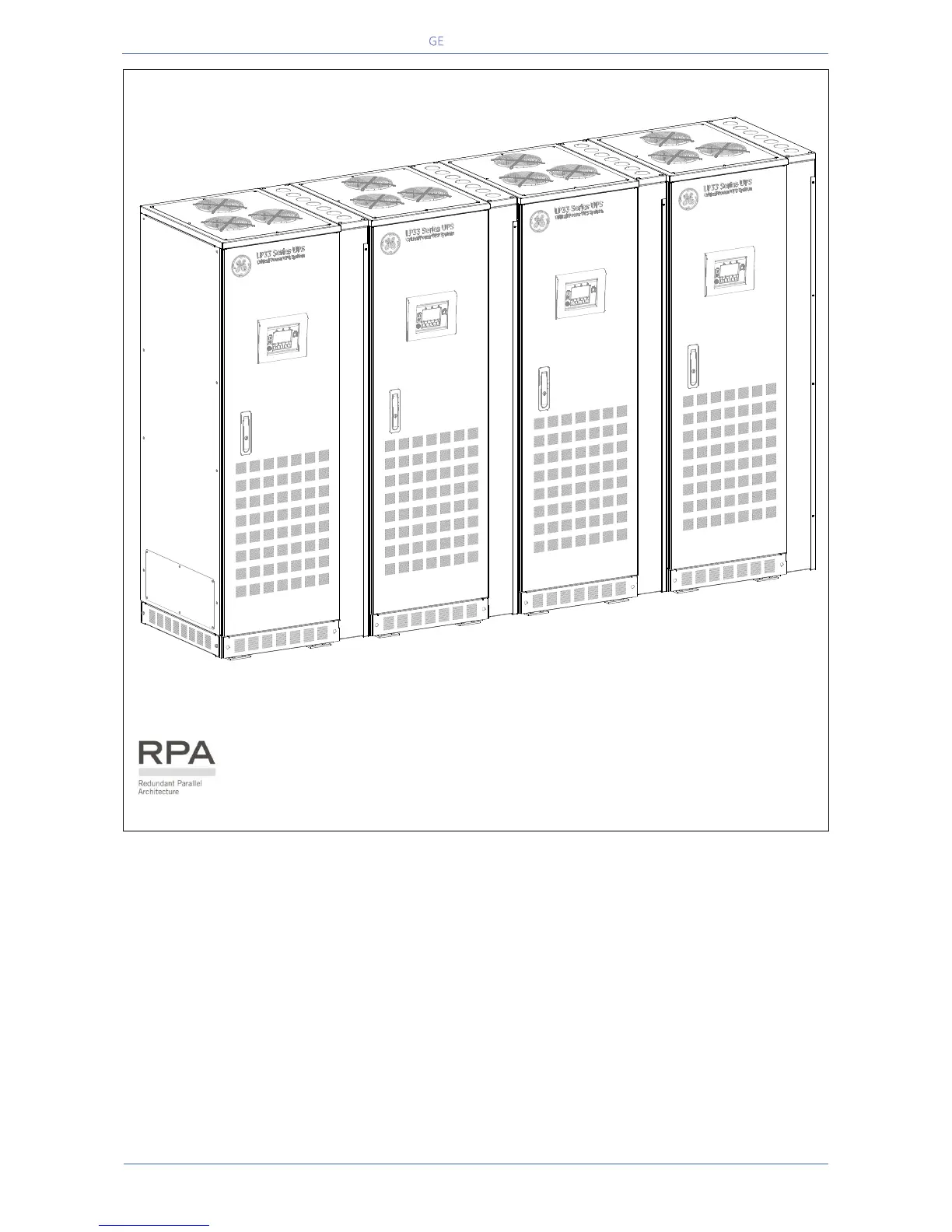

Fig. 4.4-4 RPA Parallel System disposition
In case of Parallel System, try to place the UPS modules in sequence of their
numbers (marked on the packing).
If the units are positioned “side by side”, the side panels must be mounted on
all units.
LPS33U_020-030_S2_RPA disposition_GE_01
1
2
3
4
