GE MAC 5000 Service Manual

Revision B MAC™ 5000 resting ECG analysis system 3-11
2024917-010
Installation: Preparation for Use
3. Route the cable around the trolley column towards the rear
as shown below.
4. At the front, hold the cable to the side so it clears the front panel
as you replace the panel.
5. Plug the cable connector into port A then replace the back panel.
6. Refer to the MAC 5000 Operator’s Manual for information on using
the Magnetic Card Reader.

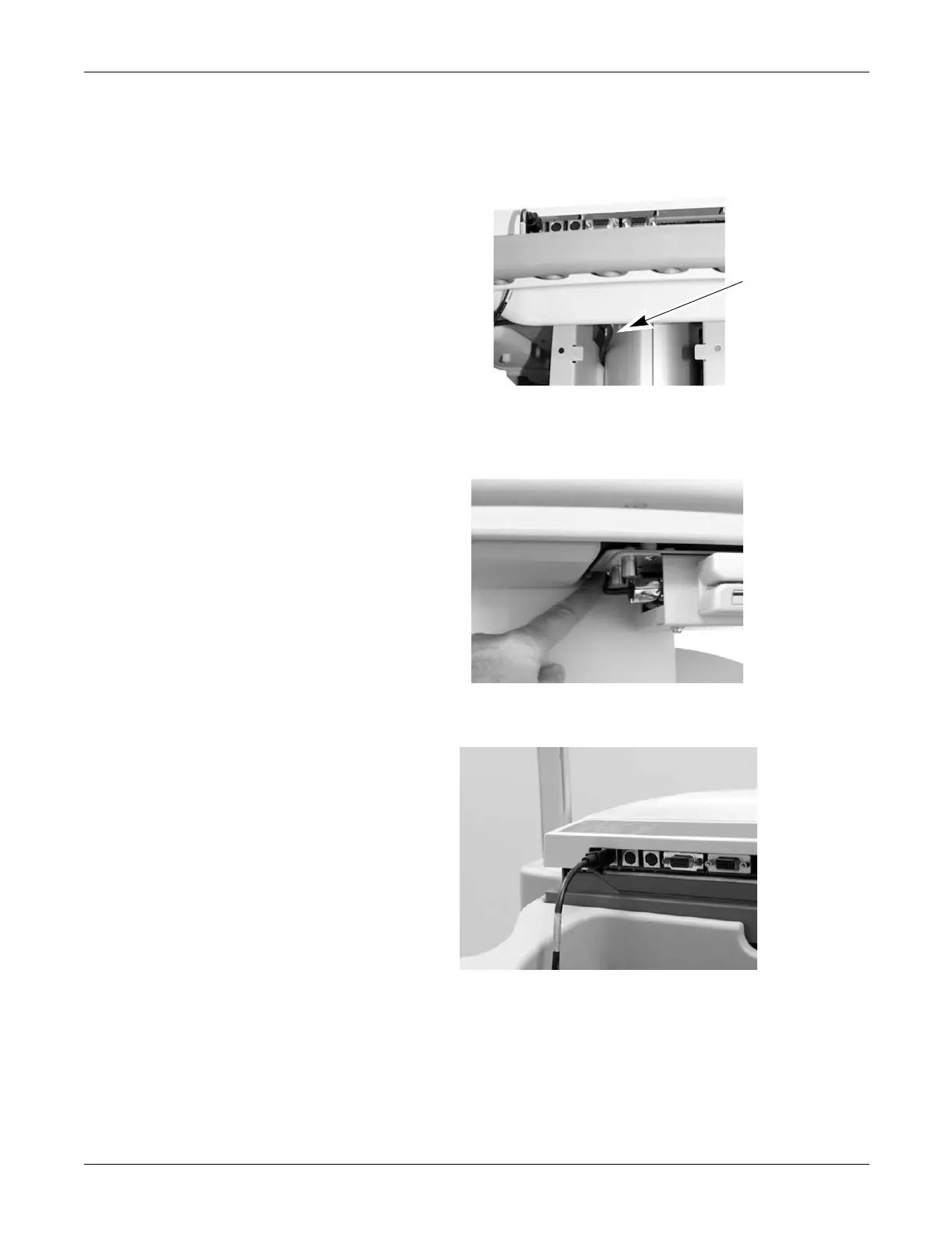

Cable Routing
Rear View
34A
77A
70A
