4-8 MAC™ 5000 resting ECG analysis system Revision B
2024917-010
Maintenance: Disassembly Guidelines
Type-S Trolley Disassembly

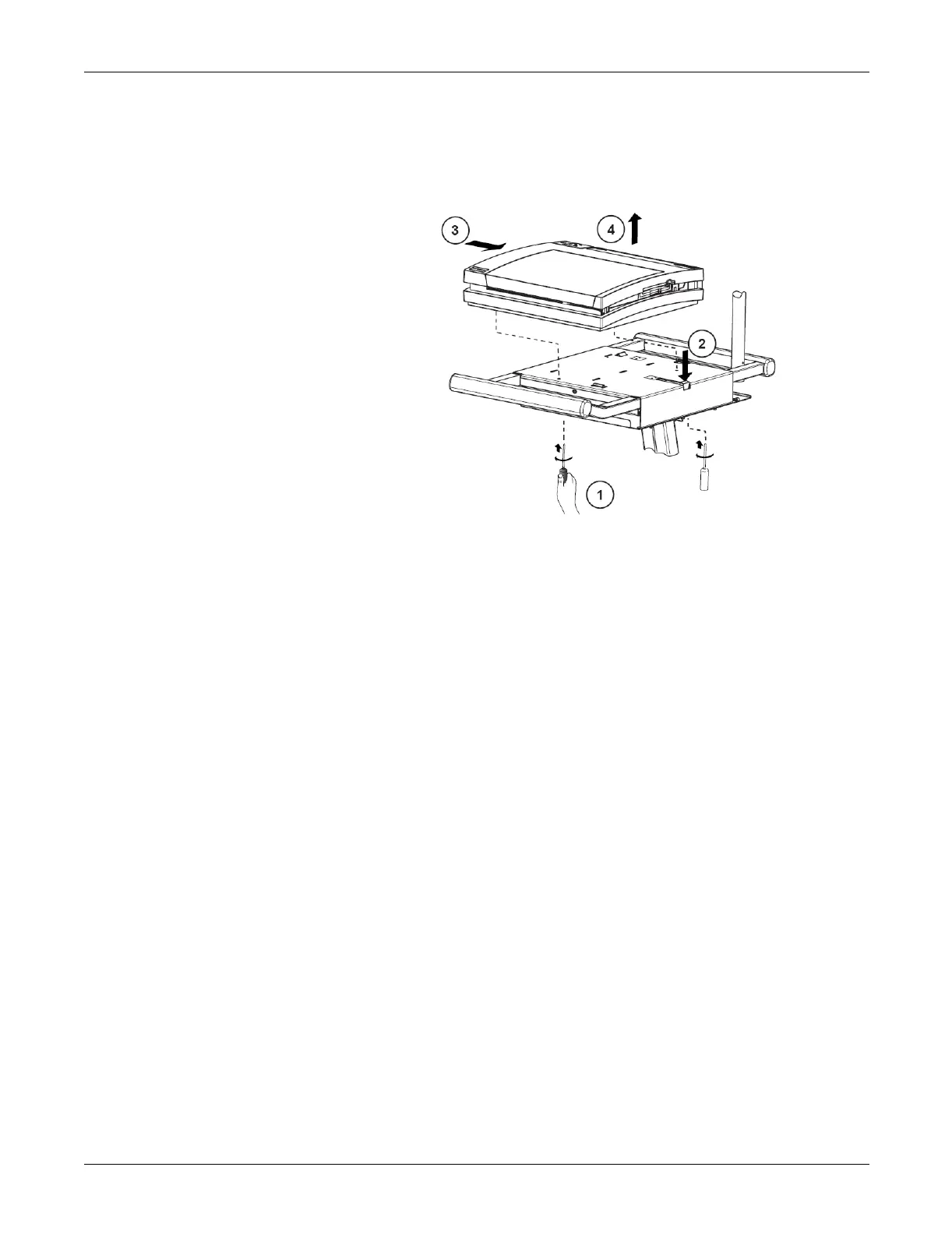

To dismount the MAC 5000 from the Type-S trolley, follow the steps
shown in the illustration below.
Power Supply
NOTE
A #10 TORX driver is required for disassembly and assembly of the
power supply.
Removal
1. Turn the unit over so the bottom side is up.
2. Using a #10 TORX driver, remove the three screws holding the power
supply in place.
3. Lift the power supply to expose the wiring harness and ground wire.
39A
