Revision B MAC™ 5000 resting ECG analysis system 4-7
2024917-010
Maintenance: Disassembly Guidelines
Disassembly Guidelines
Preliminary Steps
Prior to disassembly, perform the following:
If possible, process any ECGs remaining in storage.
If possible, print out set-up for future reference.
Disconnect the unit from the AC wall outlet and remove the power
cord from the unit.
Remove the battery.
Remove the chart paper.
Take strict precautions against electrostatic discharge damage.

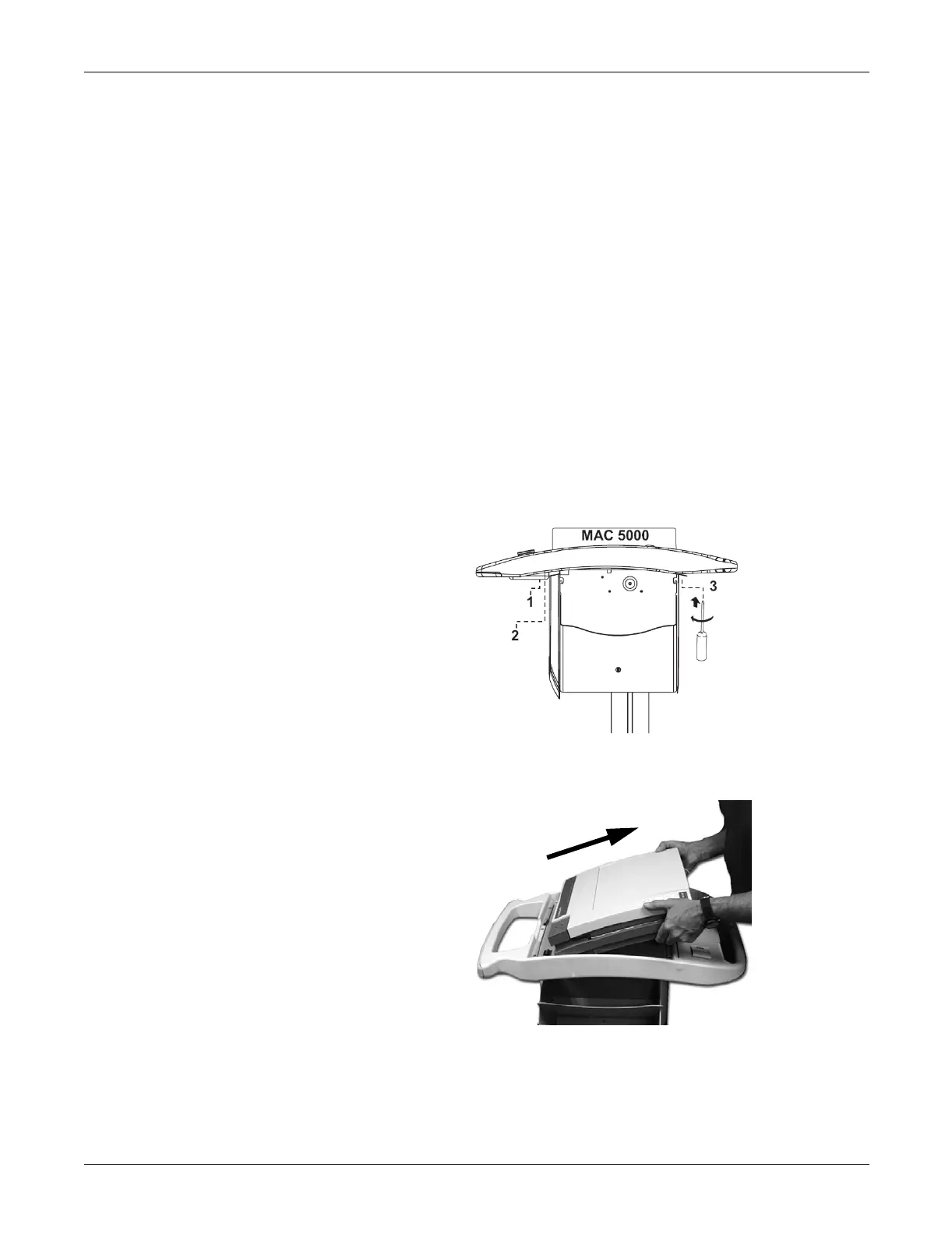

Trolley Disassembly
1. Lock the wheels, remove the rear trolley panel then loosen the three
captive screws located under the trolley.
2. Pull the MAC 5000 up and up toward you.
3. Lift the unit from the trolley.
21A
20A
To Next Page
