4-6 MAC™ 5000 resting ECG analysis system Revision B
2024917-010
Maintenance: Battery and Patient Cable Replacement
Battery and Patient Cable Replacement
Battery Replacement

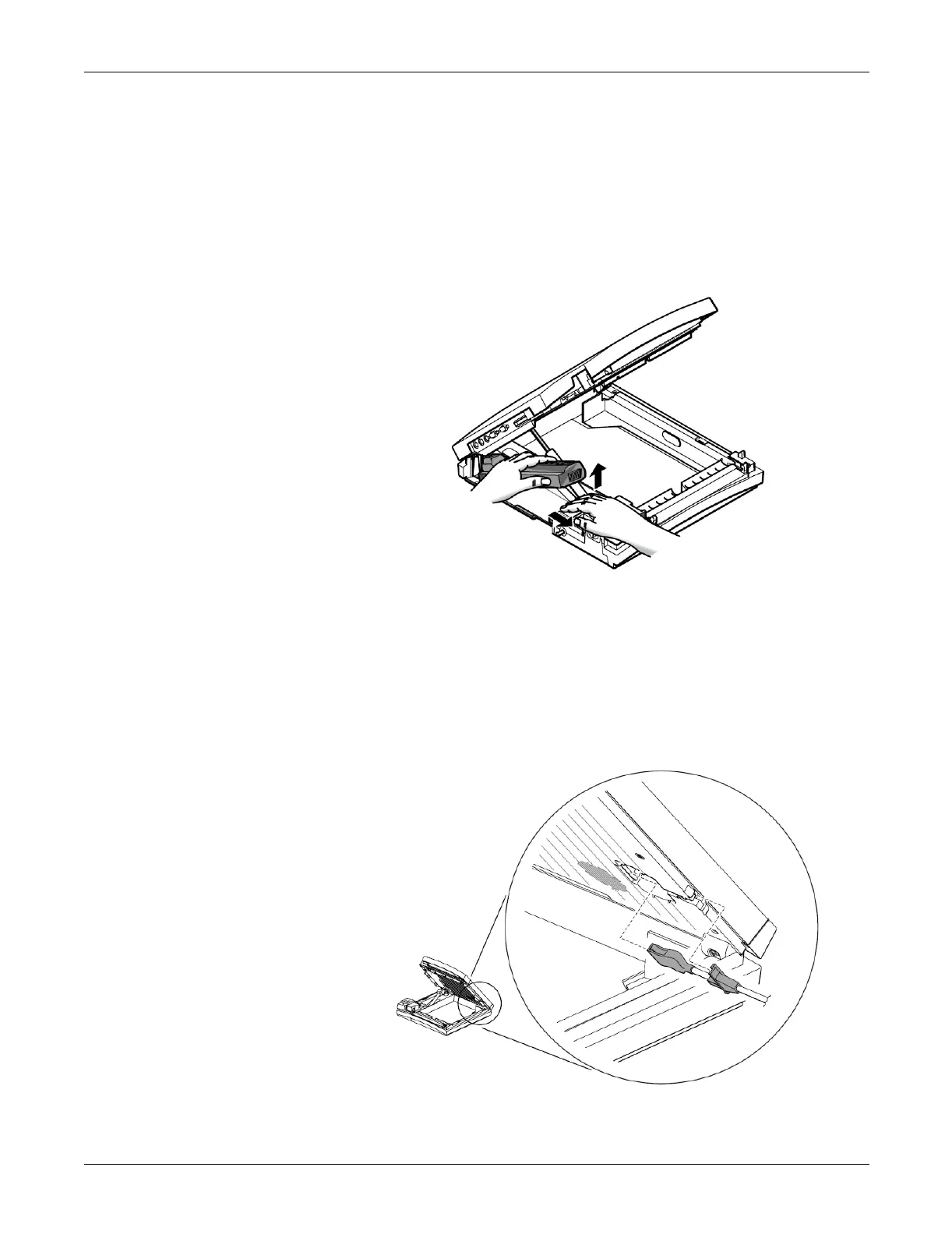

1. Press the internal access button to open the unit.
2. Slide the battery release button in the direction of the arrow and lift
the battery out.
3. Install a new battery and close the unit.
Patient Cable Replacement
1. Press the internal access button to open the unit.
2. Press the connector release tabs and pull the connector loose.
3. Pull the cable from the retaining tabs.
4. Reassemble the cable by reversing the above steps.
