Troubleshooting
3. Press each key on the keyboard and verify the value appears in the
corresponding representation of that key on the screen.
A key passes the test if its value appears on the screen when the
corresponding key is pressed.
4. To test for “sticky keys”, continue to press keys and verify that the
screen representation of the key is refreshing with each subsequent
key press.
A key passes if the key on the screen refreshing with each repeated
key press.
5. Press F1 > Stop when the test is complete.

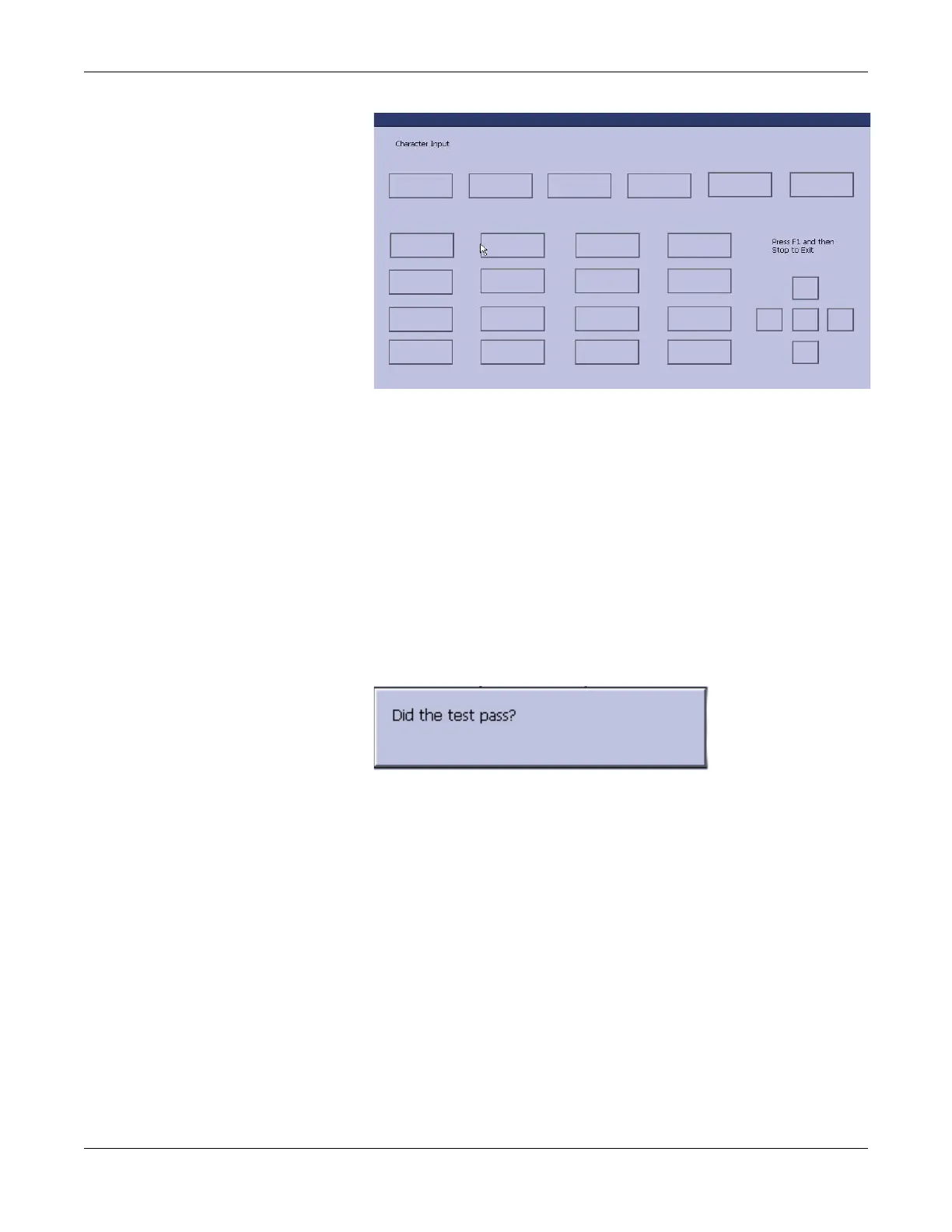

The following window opens.
6. Select Pass or Fail:
If every key passes the tests, press F4 to select Yes.
If any key fails a test, press F5 to select No.
Replace the keyboard assembly as described in “Replacing the
Keypad Assembly” on page 4-11.
Acquisition Module Test
The Acquisition Module Test can be used to determine if the acquisition
board is working properly.
1. Open the Diagnostic Tests window as described in “Accessing the
System Diagnostics Function” on page 3-6.
2. Select the Acquisition Module Test button.
The following window opens.
