Maintenance
2031504-159D
MAC™ 800
4-29

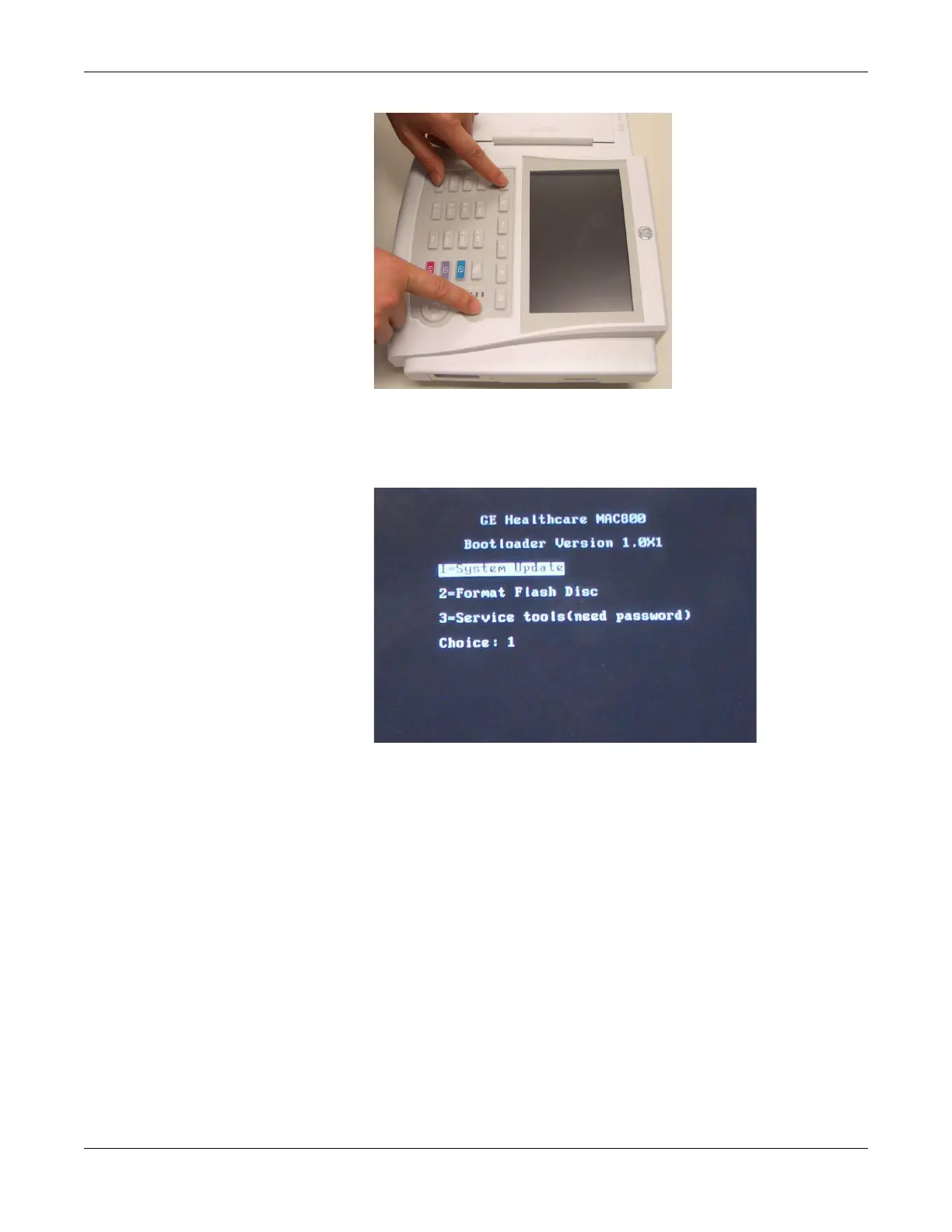

3.
Move the focus to
1=System Update
in the boot loader
Main Menu
and select by pressing
OK
to start the software update.
4.
Boot loader wi
ll read the software
from the
SD card and write into
Flash. Do not press any key until the
Writ
ing image complet
ed
message displays.
