GE MiCOM P141 Agile - Application Notes; Busbar Blocking Scheme; Figure 73: Blocked Earth Fault Logic; Figure 74: Simple Busbar Blocking Scheme

To Next Page

To Previous Page

Remove IN> Start

Enabled

CB Fail Alarm

Disabled

IN1>1 Start

IN1>2 Start

IN1>3 Start

IN1>4 Start

IN2>1 Start

IN2>2 Start

1 IN/SEF>Blk Start

V00649

IN2>3 Start

IN2>4 Start

ISEF>1 Start

ISEF>2 Start

ISEF>3 Start

ISEF>4 Start

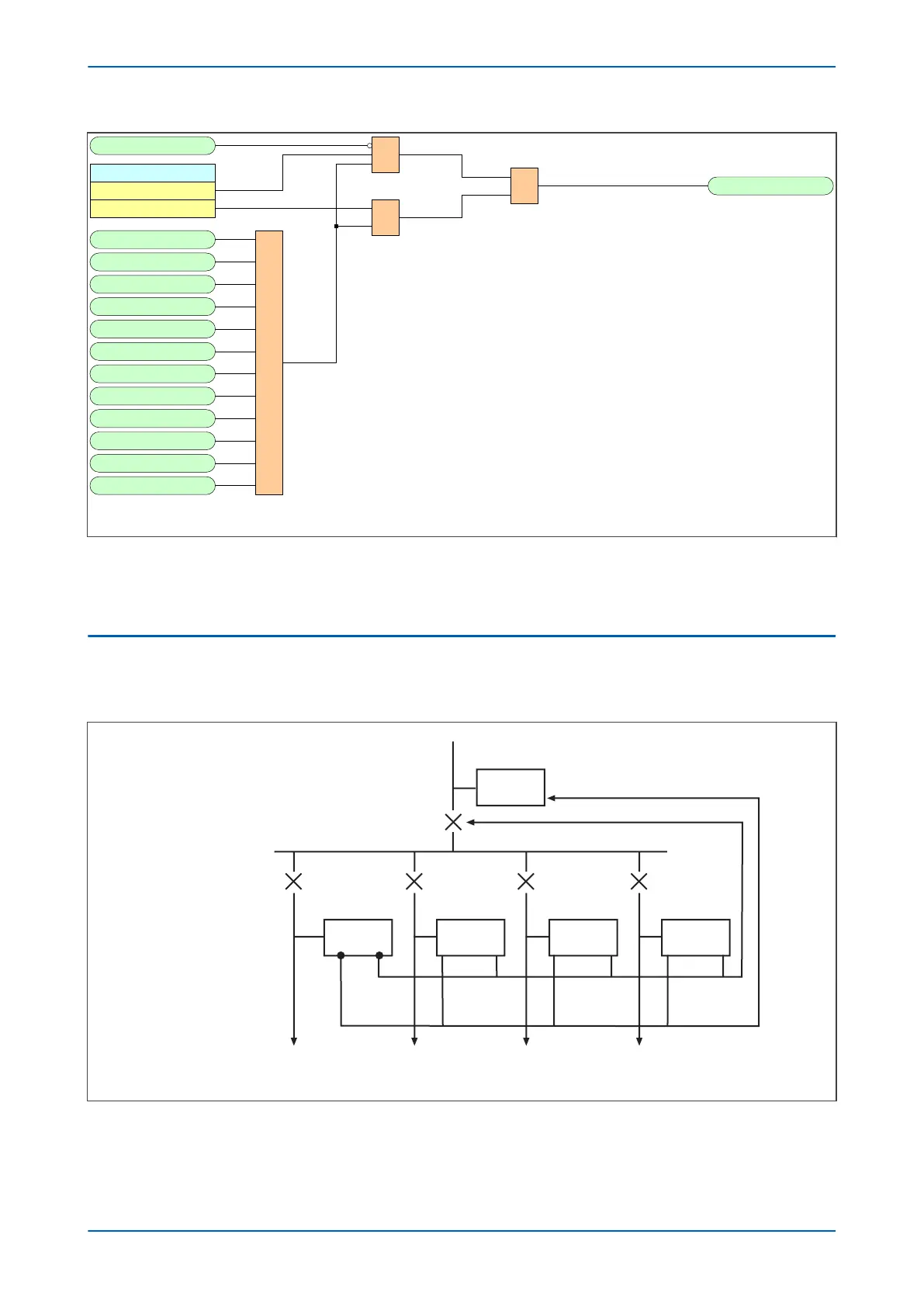

Figure 73: Blocked Earth Fault logic

The IN/SEF>Blk Star

t signal is derived from the logical OR of the phase overcurrent start outputs. This output is

then gated with the CB Fail Alarm DDB signal and the Remove IN> Start setting.

14.4 APPLICATION NOTES

14.4.1 BUSBAR BLOCKING SCHEME

E00636

IED

Incomer

Block highset element

CB fail backtrip

Feeder 4

Feeder 3

Feeder 2

Feeder 1

O/P

from

start

contact

fail

backtrip

Figure 74: Simple busbar blocking scheme

P14x Chapter 6 - Current Protection Functions

P14xEd1-TM-EN-1 147
