GE MiCOM P141 Agile - Figure 203: Manual Selection of a Disturbance Record

Start
Get number of
d
i
sturbances from
register 3x00800
Are there
di
sturbances?
Get oldest disturbance ID
fr
om register 3x00801
Select required disturbance
by
writing the ID value of
the required record to
register 4x00250
Get disturbance time stamp
from registers 3x00930 –
3x00933
End
Extract disturbance data
YesNo
V0
1003

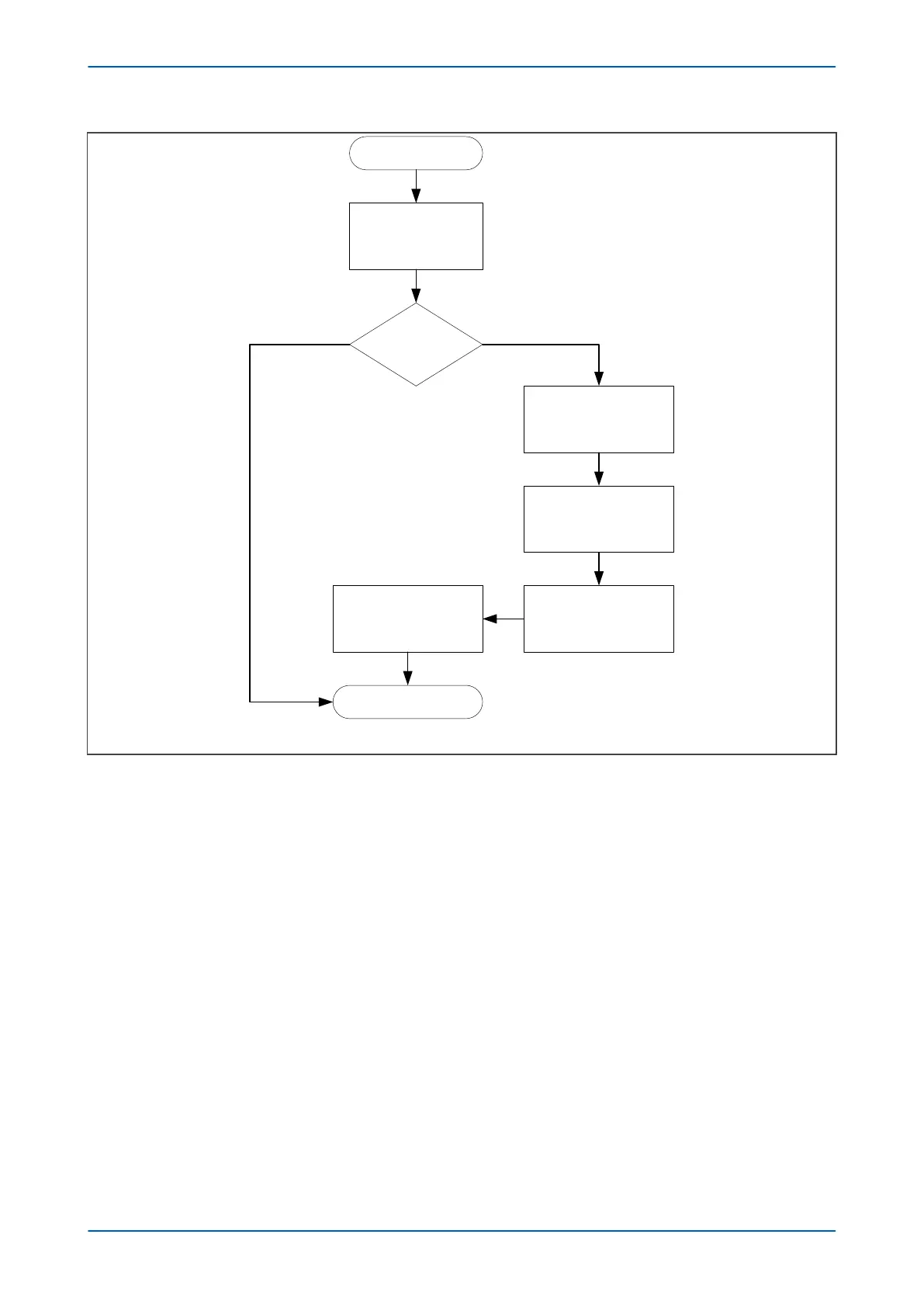

Figure 203: Manual selection of a disturbance record
7.4.6.2 AUTOMATIC EXTRACTION PROCEDURE
There are two methods that can be used for automatically extracting disturbances:
Method 1
Method 1 is simpler and is better at extracting single disturbance r
ecor
ds (when the disturbance recorder is polled
regularly).
