GE MiCOM P141 Agile - Figure 152: Blocking Instantaneous Protection for Selected Trips

To Next Page

To Previous Page

Trip 1 Main

No Block

Block Inst Prot

AR SeqCounter 0

Trip 2 Main

No Block

Block Inst Prot

AR SeqCounter 1

Trip 3 Main

No Block

Block Inst Prot

AR SeqCounter 2

Trip 4 Main

No Block

Block Inst Prot

AR SeqCounter 3

Trip 5 Main

No Block

Block Inst Prot

AR SeqCounter 4

Block Main Prot Trips

Trip 1 SEF

No Block

Block Inst Prot

AR SeqCounter 0

Trip 2 SEF

No Block

Block Inst Prot

AR SeqCounter 1

Trip 3 SEF

No Block

Block Inst Prot

AR SeqCounter 2

Trip 4 SEF

No Block

Block Inst Prot

AR SeqCounter 3

Block SEF Prot Trips

V00506

SC Count > 4

Trip 5 Main

No Block

Block Inst Prot

AR SeqCounter 4

SC Count > 4

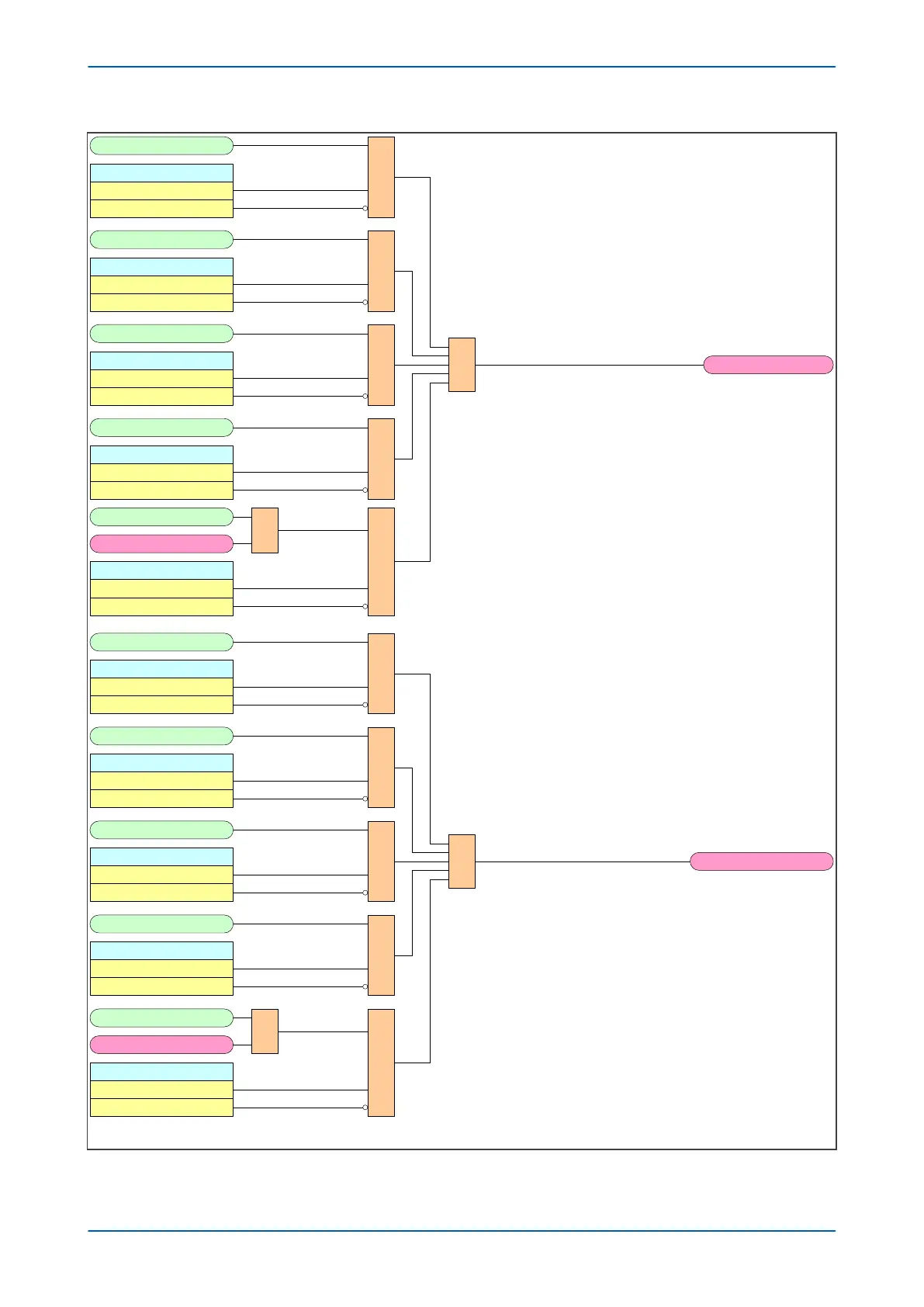

Figure 152: Blocking instantaneous protection for selected trips

Chapter 13 - Autoreclose P14x

294 P14xEd1-TM-EN-1
