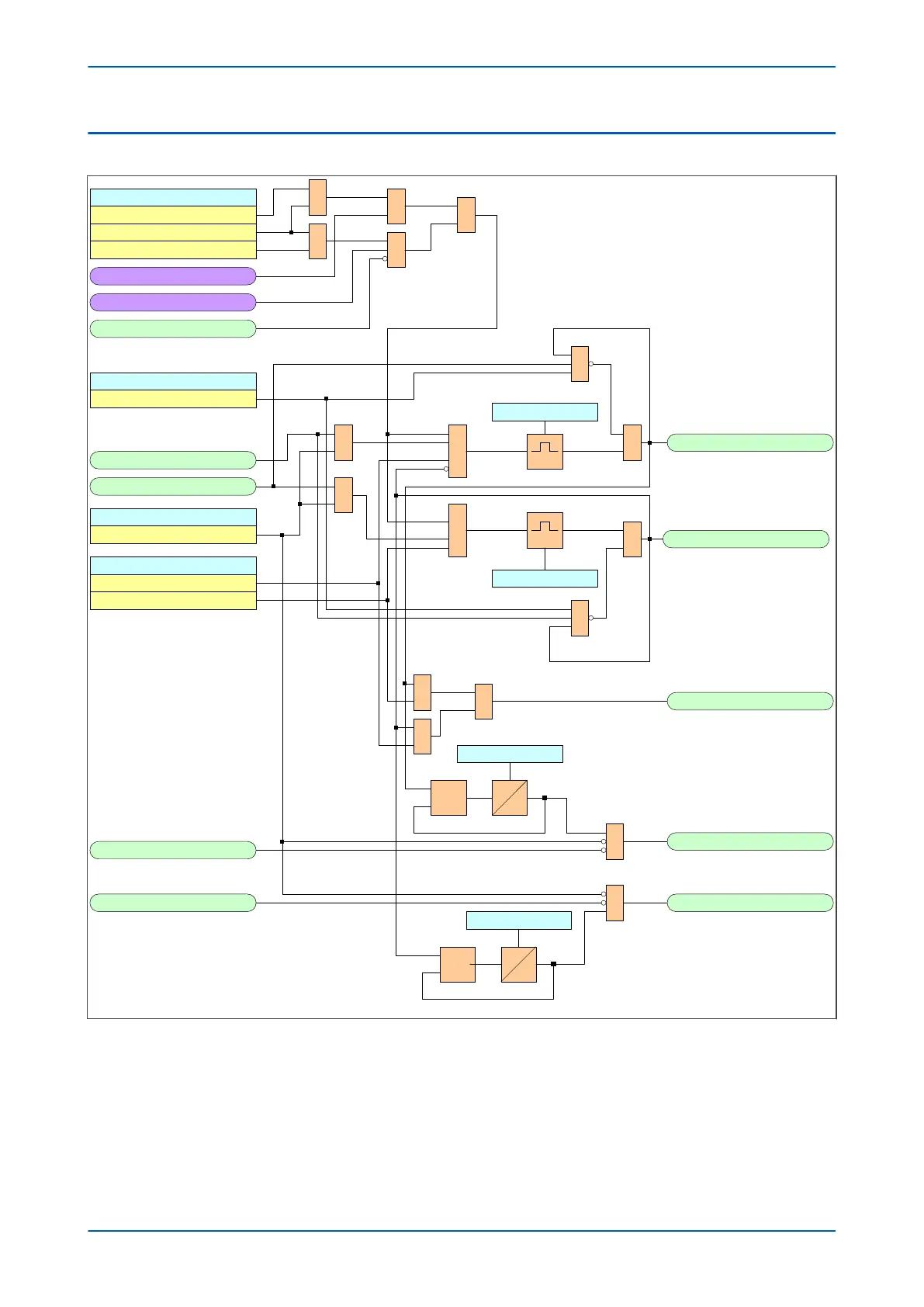

GE MiCOM P141 Agile - Switch Control Logic; Figure 173: Switch Control Logic

10.2 SWITCH CONTROL LOGIC
V01242
SWI1 Control by
Local
Remote
Local +Remote
1
Blk Rmt SWI1 Ops
Local
Remote
1
&
&
1
SWI1 Status Opn
SWI1 Status Cls
SWI1 Status Inpt
None
1
1
&
&
SWI1 Trip/Close
Close
Trip
SWI1 Control Trp
SWI1 Control Cls
SWI1 Trp Puls T
SWI1 Cls Puls T
&
&
&
&
1 SWI1 Control Alm
SWI1 Status Opn
SWI1 Status Cls
t
0
SWI1 Cls Fail T
SWI1 Trp Fail T
SWI1 Trip Fail
SWI1 Cls Fail
S
R
Q
S
R
Q
t
0
&
SWI1 Pulse Timer Ctrl
Enabled
&
&
&
Figure 173: Switch Control logic
