Terminal Number Opto-input

Terminal 17 Common

Terminal 18 Common

6.6 STANDARD OUTPUT RELAY BOARD

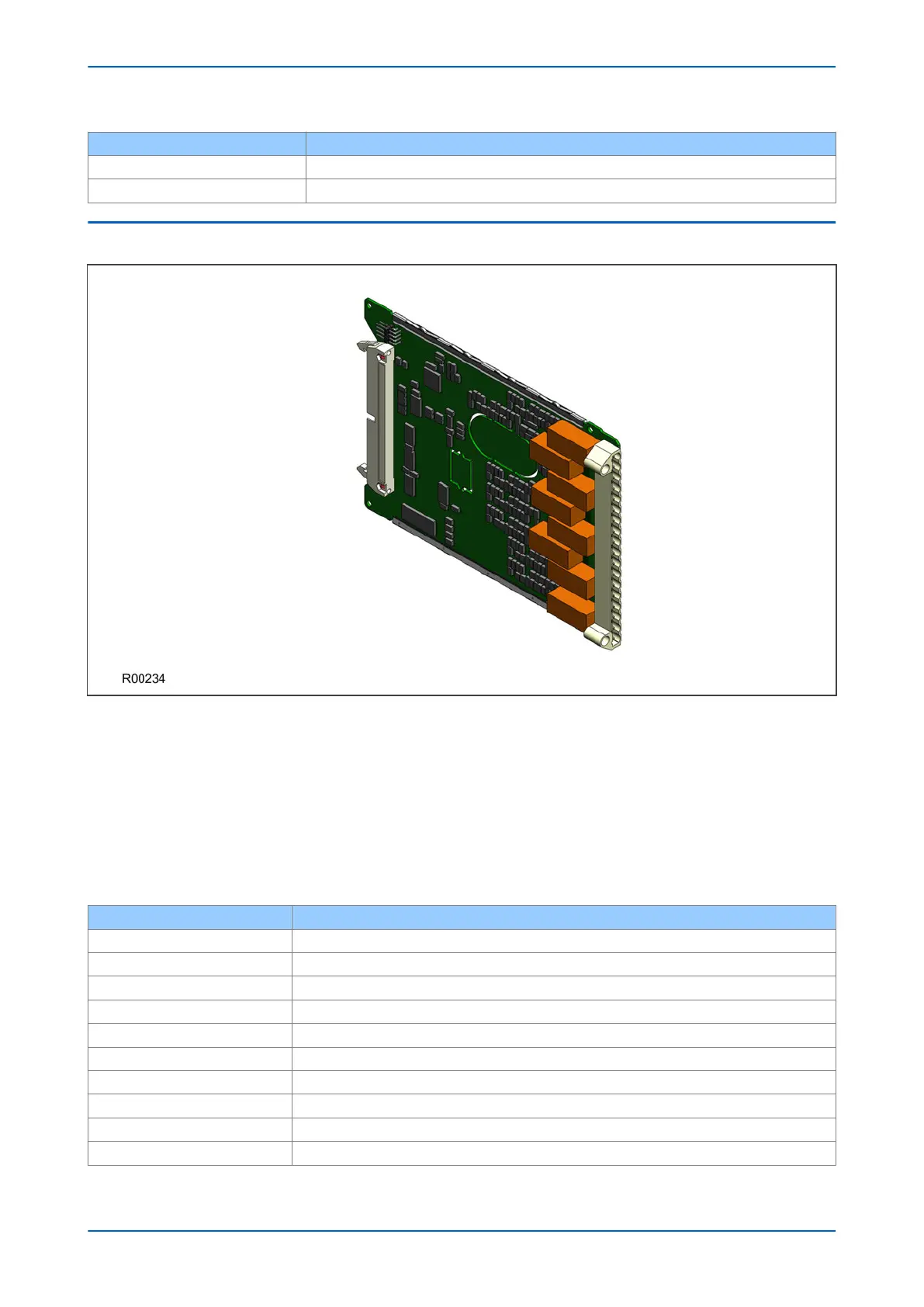

Figure 19: Standard output relay board - 8 contacts

This output relay boar

d has 8 relays with 6 Normally Open contacts and 2 Changeover contacts.

The output relay board is provided together with the power supply board as a complete assembly, or

independently for the purposes of relay output expansion.

There are two cut-out locations in the board. These can be removed to allow power supply components to

protrude when coupling the output relay board to the power supply board. If the output relay board is to be used

independently, these cut-out locations remain intact.

The terminal numbers are as follows:

Terminal Number Output Relay

Terminal 1 Relay 1 NO

Terminal 2 Relay 1 NO

Terminal 3 Relay 2 NO

Terminal 4 Relay 2 NO

Terminal 5 Relay 3 NO

Terminal 6 Relay 3 NO

Terminal 7 Relay 4 NO

Terminal 8 Relay 4 NO

Terminal 9 Relay 5 NO

Terminal 10 Relay 5 NO

P14x Chapter 3 - Hardware Design

P14xEd1-TM-EN-1 49
