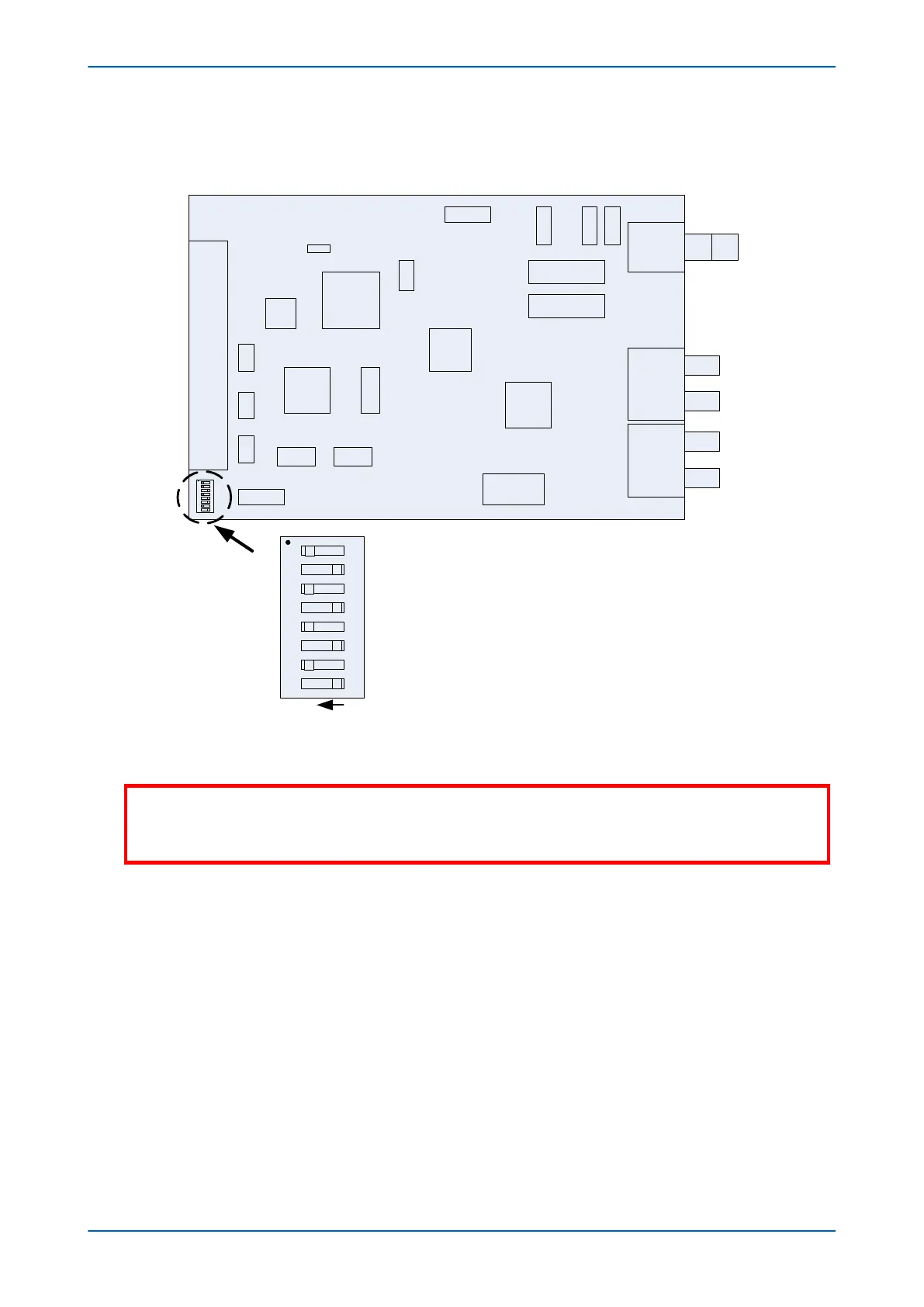

7. Remove the redundant Ethernet board. Set the last octet of IP address using the DIP switches. The available
range is 1 to 127.
V01022
1
2
4
8
16
32
64
Unused
SW2 Top view
ON
Example address
decimal 85
1 + 4 + 16 + 64 = 85
8. Once you have set the IP address, reassemble the IED, following theses instructions in the reverse order.
Warning:
T
ake care not to damage the pins of the ribbon cable connector on the front panel when reinserting
the ribbon cable.
