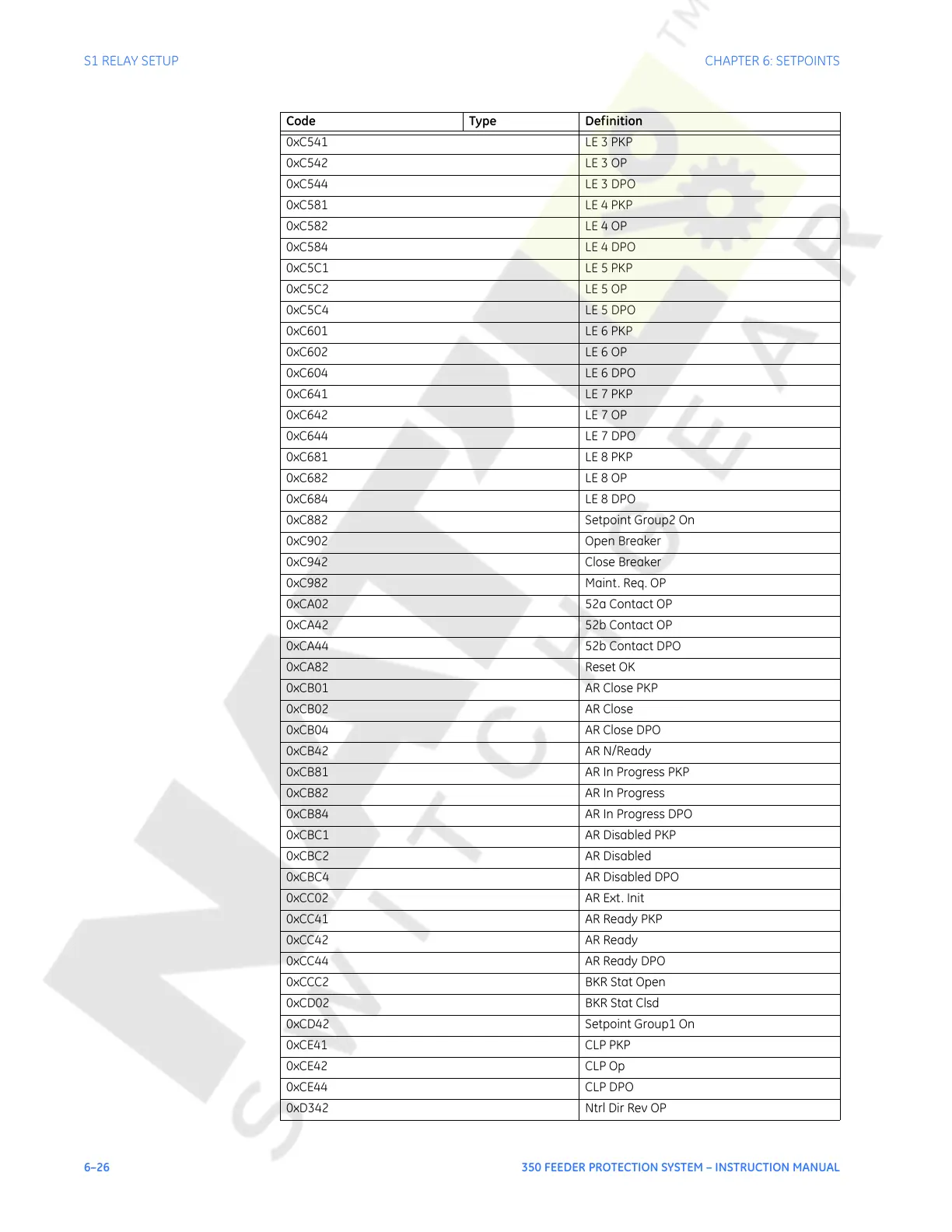

6–26 350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
S1 RELAY SETUP CHAPTER 6: SETPOINTS
0xC541 LE 3 PKP
0xC542 LE 3 OP
0xC544 LE 3 DPO
0xC581 LE 4 PKP
0xC582 LE 4 OP
0xC584 LE 4 DPO
0xC5C1 LE 5 PKP
0xC5C2 LE 5 OP
0xC5C4 LE 5 DPO
0xC601 LE 6 PKP
0xC602 LE 6 OP
0xC604 LE 6 DPO
0xC641 LE 7 PKP
0xC642 LE 7 OP
0xC644 LE 7 DPO
0xC681 LE 8 PKP
0xC682 LE 8 OP
0xC684 LE 8 DPO
0xC882 Setpoint Group2 On
0xC902 Open Breaker
0xC942 Close Breaker
0xC982 Maint. Req. OP
0xCA02 52a Contact OP
0xCA42 52b Contact OP
0xCA44 52b Contact DPO
0xCA82 Reset OK
0xCB01 AR Close PKP
0xCB02 AR Close
0xCB04 AR Close DPO
0xCB42 AR N/Ready
0xCB81 AR In Progress PKP
0xCB82 AR In Progress
0xCB84 AR In Progress DPO
0xCBC1 AR Disabled PKP
0xCBC2 AR Disabled
0xCBC4 AR Disabled DPO
0xCC02 AR Ext. Init
0xCC41 AR Ready PKP
0xCC42 AR Ready
0xCC44 AR Ready DPO
0xCCC2 BKR Stat Open
0xCD02 BKR Stat Clsd
0xCD42 Setpoint Group1 On
0xCE41 CLP PKP
0xCE42 CLP Op
0xCE44 CLP DPO
0xD342 Ntrl Dir Rev OP
