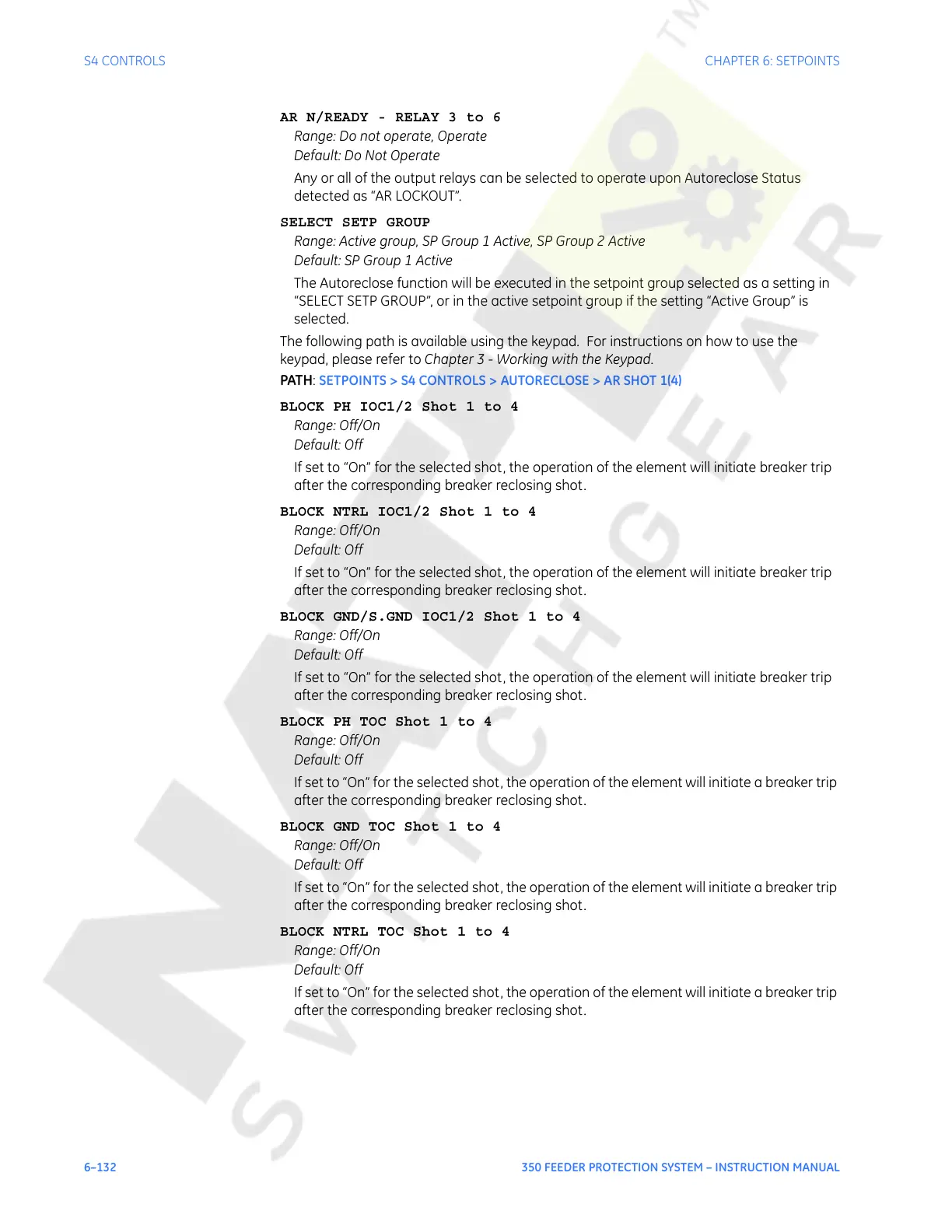

6–132 350 FEEDER PROTECTION SYSTEM – INSTRUCTION MANUAL
S4 CONTROLS CHAPTER 6: SETPOINTS
AR N/READY - RELAY 3 to 6
Range: Do not operate, Operate
Default: Do Not Operate
Any or all of the output relays can be selected to operate upon Autoreclose Status
detected as “AR LOCKOUT”.
SELECT SETP GROUP
Range: Active group, SP Group 1 Active, SP Group 2 Active
Default: SP Group 1 Active
The Autoreclose function will be executed in the setpoint group selected as a setting in
“SELECT SETP GROUP”, or in the active setpoint group if the setting “Active Group” is
selected.
The following path is available using the keypad. For instructions on how to use the
keypad, please refer to Chapter 3 - Working with the Keypad.
PATH:
SETPOINTS > S4 CONTROLS > AUTORECLOSE > AR SHOT 1(4)
BLOCK PH IOC1/2 Shot 1 to 4
Range: Off/On
Default: Off
If set to “On” for the selected shot, the operation of the element will initiate breaker trip
after the corresponding breaker reclosing shot.
BLOCK NTRL IOC1/2 Shot 1 to 4
Range: Off/On
Default: Off
If set to “On” for the selected shot, the operation of the element will initiate breaker trip
after the corresponding breaker reclosing shot.
BLOCK GND/S.GND IOC1/2 Shot 1 to 4
Range: Off/On
Default: Off
If set to “On” for the selected shot, the operation of the element will initiate breaker trip
after the corresponding breaker reclosing shot.
BLOCK PH TOC Shot 1 to 4
Range: Off/On
Default: Off
If set to “On” for the selected shot, the operation of the element will initiate a breaker trip
after the corresponding breaker reclosing shot.
BLOCK GND TOC Shot 1 to 4
Range: Off/On
Default: Off
If set to “On” for the selected shot, the operation of the element will initiate a breaker trip
after the corresponding breaker reclosing shot.
BLOCK NTRL TOC Shot 1 to 4
Range: Off/On
Default: Off
If set to “On” for the selected shot, the operation of the element will initiate a breaker trip
after the corresponding breaker reclosing shot.
