2.2.1. Editing the Setup
First, take a look at the Keypad Operations Table. Locate the Shaded, Bold display pages
below.
To enter “SET” and change a Setting value, the sequence (shown below) is: 1, 2, 3, 4. Along
the way, the following must be observed:
•
The Password Code must be entered to change the Setup. The code offered will read
“0000”. Edit (,) the blinking Digit to achieve “1000”. Press  when done with each
digit, to keep moving towards the “RUN” page. The Meter accepts each digit entered, but
masks it with “0000” so someone watching doesn’t steal the password.
After changing the desired Setup values (Step 4), the sequence to get back to the RMS page
is: 5, 6, 7, 8.
•
Exiting Setup requires you to Save the settings (Step 6). “SAVE Y”, press .
To Discard the changes, toggle Up or Down to get “SAVE N” before pressing.
•
Going forward from 7 (RUN) to 8 (PROG) does not require any Code. You go ,
straight through.
•
Entering into the setup on power up
1.1.1 During power on, press the Turbo key continuously for 2sec and displays SET.
1.1.2 Press the  key. Displays the desired value to be changed.
1.1.3 Follow the above procedure.

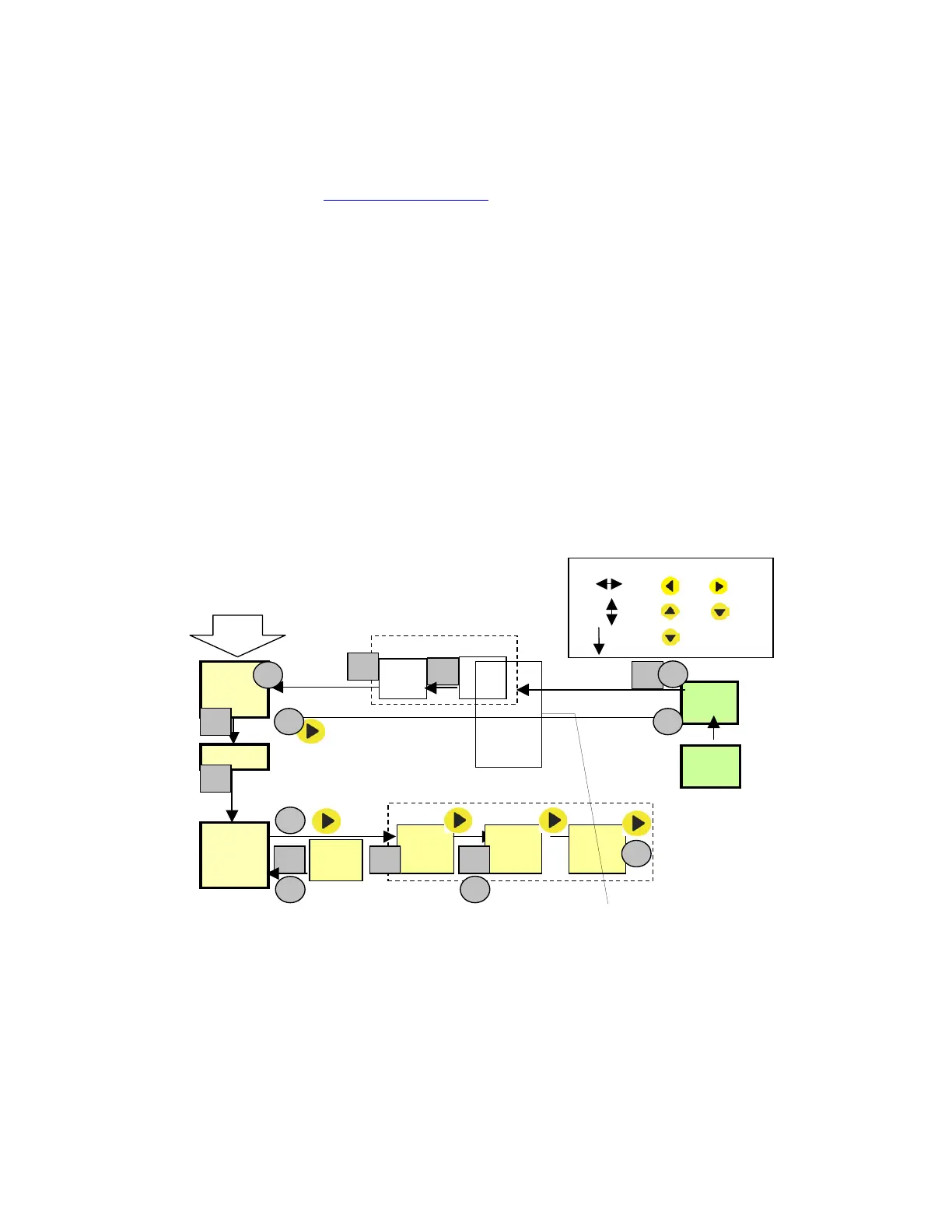

Figure 2-2a: Entering and Exiting Setup
Password
Prog
RMS
RUN
CLR
SET
Code
Y
Code
1000
Main
Menu
Name
Setup
Value
New
Value
Enter the New Value.
2
3
4
6
Save
Y
1
8
5
To Prog Mode
To Run Mode
7
Code Entry
Legend Use orkeys
Use orkeys
Use key only
EPM 2000 v
03.01.01.00
