5.7.1. EPM 2000 Rear Panel
The meter terminals are located on the rear panel. 14 terminals are provided, 7 terminals on
each side:
• Six terminals for current, one “in” and one “out” per phase,
•
Four terminals for voltage, for three phases and neutral
•
Two terminals for meter Auxiliary Power Supply and
• Two terminals for the RS 485 communications port.

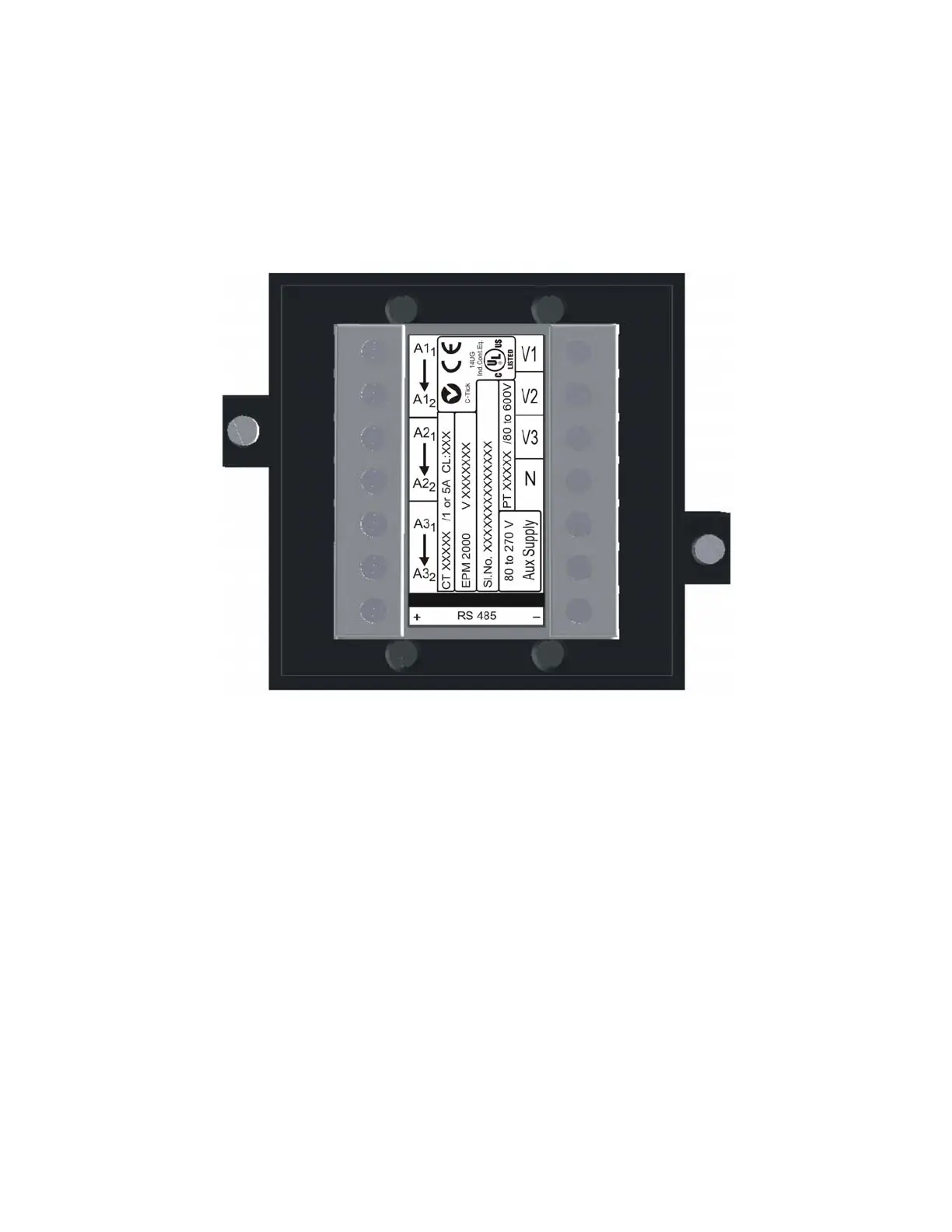

Figure 5-1: Meter Rear panel
