5.7.2. Three Phase 3 Wire Delta
With 2 CTs. Direct Voltage Connections if Voltages are less than 600v AC L-L. Otherwise, 3
PTs for Closed Delta or 2 PTs for Open Delta.
Note: Remember to make sure Delta is programmed in the meter Setup. Leave the Vn
terminal un-connected.

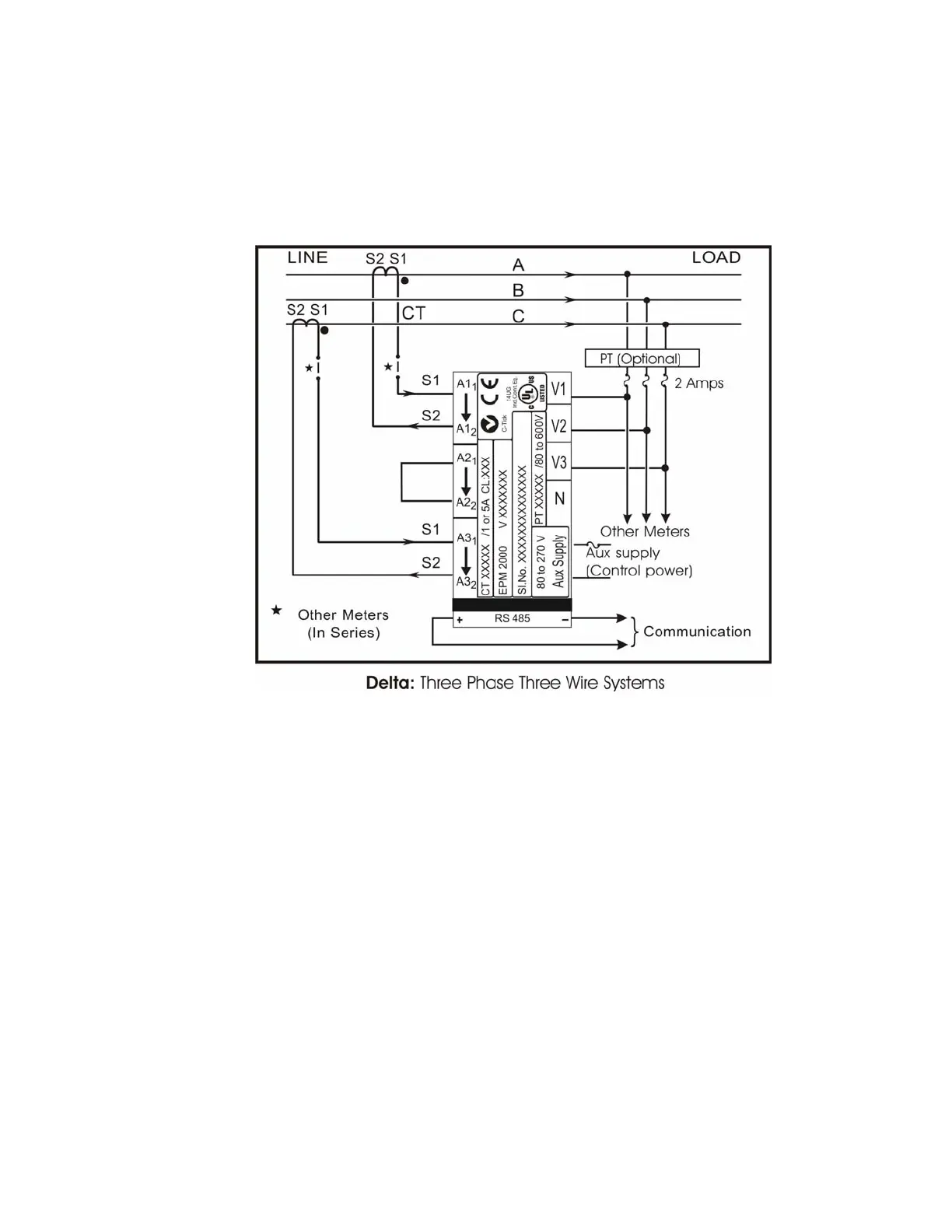

Figure 5-2: The Delta Connection Diagram
