GE NetworX NX-6V2 User Manual

34

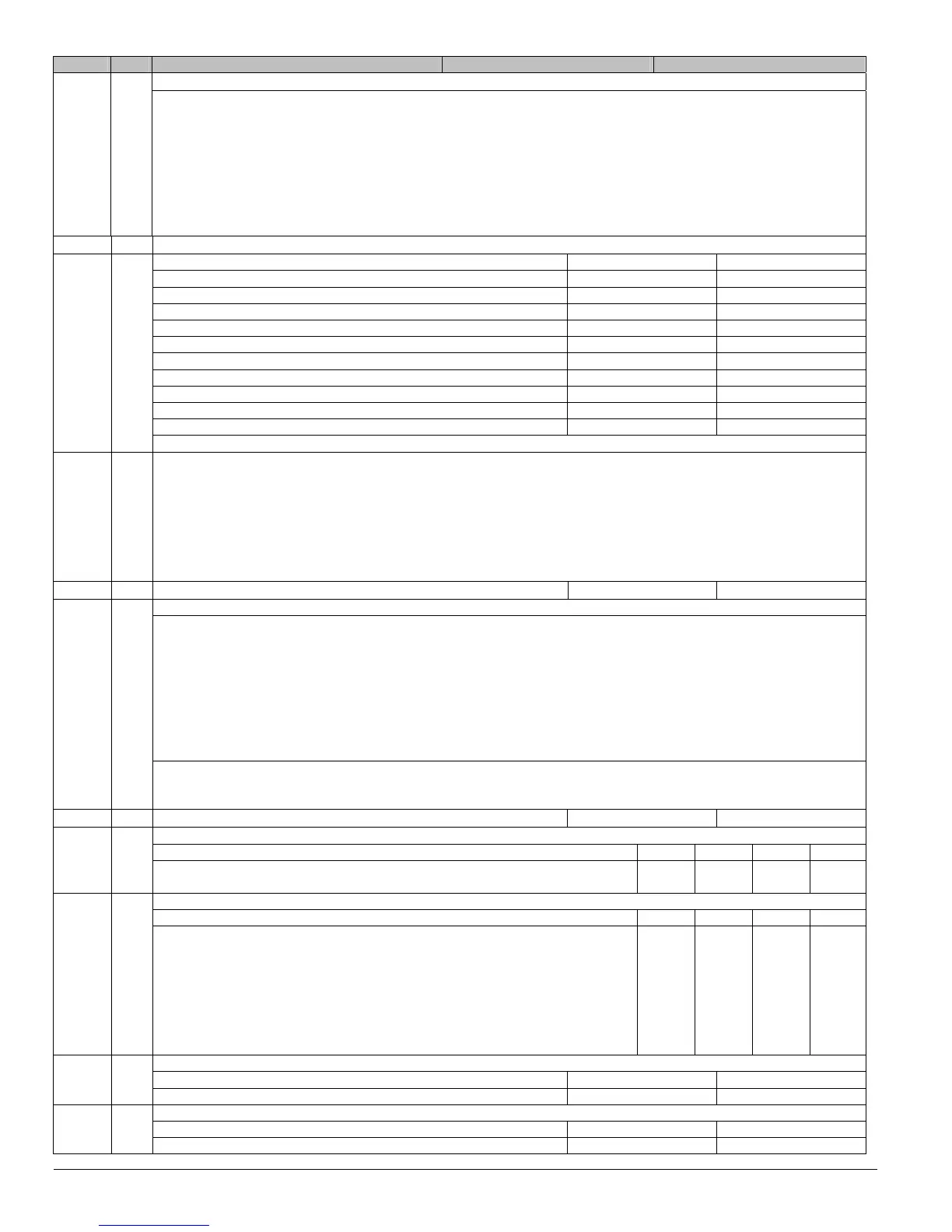

NX-6V2 Control
LOC PG DESCRIPTION DEFAULT PROGRAM DATA
L
39 19 KEYPAD SOUNDER CONTROL
Segment 1 (Circle numbers to program)
1 = Keypad sounds for Telephone Line Cut when in the Armed state.
2 = Keypad sounds for Telephone Line Cut when in the Disarmed state.
3 = Keypad sounds upon AC Power Failure.
4 = Keypad sounds upon Low Battery Detection.
5 = Keypad sounds during Cross Zone Trip Time.
6 = Keypad sounds for Tamper Alarm.
7 = Reserved.
8 = Keypad sounds for expander trouble (required for UL).
L
40 19 SYSTEM TIMERS
Segment 1 Dynamic Battery Test duration (0-255 minutes) 0 _
Segment 2 AC Failure report delay (0-255 minutes) 5 _
Segment 3 Power Up Delay (0-60 seconds) 60 _
Segment 4 Siren Time (1-254 minutes) 8 _
Segment 5 Telephone Line Cut delay (0-255 seconds) 0 _
Segment 6 Cross Zone Time (0-255 minutes) 5 _
Segment 7 Chime Time in 50 mS increments (0-255) 3 _
Segment 8 Dialer delay (15-255 seconds) 30 _
Segment 9 Fire Alarm Verification Time (120-255 sec.) 0 _
Segment 10 Listen-In Time (0-255 seconds) 0 _
Segment 11 Zone Monitor Timer (0-255 Days) 0 _
Segments 12 – 14 Reserved
41 20 SPECIAL FEATURES
Segment 1 (Circle numbers to program)
1 = Enables 6-digit code option. All arm/disarm/Go To Program codes require six digits.
2 = Requires valid user code entry for [r]-[9]-[8] and [r]-[9]-[9] functions to work.
3 = Enable Auto Cancel / Abort.
4 = Enable Walk-Test Mode.
5 = Enables Auto Force-Arming with keyfob or keyswitch
6-8=Reserved. (Do not program!)
L
42 20 GO TO PROGRAM CODE 9-7-1-3-0-0 _ _ _ _ _ _
43 20 GO TO PROGRAM CODE PARTITION AND AUTHORIZATION
Segment 1 (Circle numbers to program)
1 = Reserved.
2 = Enables "Go To Program Code" as an arm only code.
3 = Enables "Go To Program Code" as an arm only after closing.
4 = Enables "Go To Program Code" as a master arm/disarm code (can change user codes)
5 = Enables "Go To Program Code" as an arm/disarm code.
6 = Enables "Go To Program Code" to bypass zones.
7 = Enables "Go To Program Code" opening and closing reports.
8 = Reserved.
Segment 2 (Circle numbers to program)
1 = Enables "Go To Program Code" for partition 1
2 = Enables "Go To Program Code" for partition 2
L
44 20 DURESS CODE 15-15-15-15-15-15 _ _ _ _ _ _
45 20 AUXILIARY OUTPUTS 1-4 PARTITION SELECTION
Segments (Aux Out) 1 2 3 4
1 = Partition 1
2 = Partition 2
1
2
1
2
1
2
1
2
46 21 AUXILIARY OUTPUTS 1-4 SPECIAL TIMING
Segments (Aux Out) 1 2 3 4
1 = Aux output timed in minutes.
2 = Aux output to latch.
3 = Aux output to stop timing upon user code entry.
4 = Aux output to activate only between closing & opening time.
5 = Aux output to activate only between opening & closing time.
6 = Invert auxiliary output (0 Volts going to 12V when activated).
7 = Reserved
8 = Reserved
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
47 21 AUXILIARY OUTPUT #1, EVENT & TIME
Segment 1: Event number for output # 1 0=Burglary alarm
Segment 2: Timing for output # 1 10 seconds
48 21 AUXILIARY OUTPUT #2, EVENT & TIME
Segment 1: Event number for output # 2 1=Fire alarm
Segment 2: Timing for output # 2 10 seconds

GE NetworX NX-6V2 Specifications

Power

operating power	16.5 VAC 40, or 50 VA Transformer
auxiliary power with 25 VA Transformer	12 VDC Regulated 500 mA
auxiliary power with 40 or 50 VA Transformer	12 VDC Regulated 1 AMP
auxiliary power with NX-320E Power Supply	12 VDC Regulated 2 AMPS + Control Panel Power

Loop Specifications

loop resistance standard loop	300 Ohms Maximum
loop resistance 2-wire smokes	30 Ohms Maximum
loop response	Selectable 50mS or 500mS

Operating Environment

operating temperature	32 to 120 degrees F

Keypad Specifications

LED keypad current draw	130 mA max.
LED keypad zones normal without sounder	55 mA
LED keypad dimensions	6.4" Wide, 4.0" High, 1.1" Deep
NX148E LCD keypad current draw	110 mA max.
NX148E LCD keypad without sounder	75 mA
NX148E LCD keypad dimensions	6.4" Wide, 5.3" High, 1.0" Deep

Dimensions and Weight

metal enclosure dimension	11.25" Wide, 11.25" High, 3.50" Deep
shipping weight	9 lbs.
