GE P54E - 1-Phase Dead Time Logic Diagram; Figure 74: Single-Phase Dead Time Logic Diagram (Module 24)

To Next Page

To Previous Page

5.11.2 1-PHASE DEAD TIME LOGIC DIAGRAM

V03342

CB1LSPAR 1P DTime&

Seq Counter = 1

CB1LSPAR

DTOK CB 1P

DTOK All

& OKTimeSP

DT Start by Prot

Protection Reset

AR Start

CB1LSPAR

CB1OP2/ 3P

CB1LSPAR

Logic 1

1 Pole Dead Time

CB1SPDTCOMP

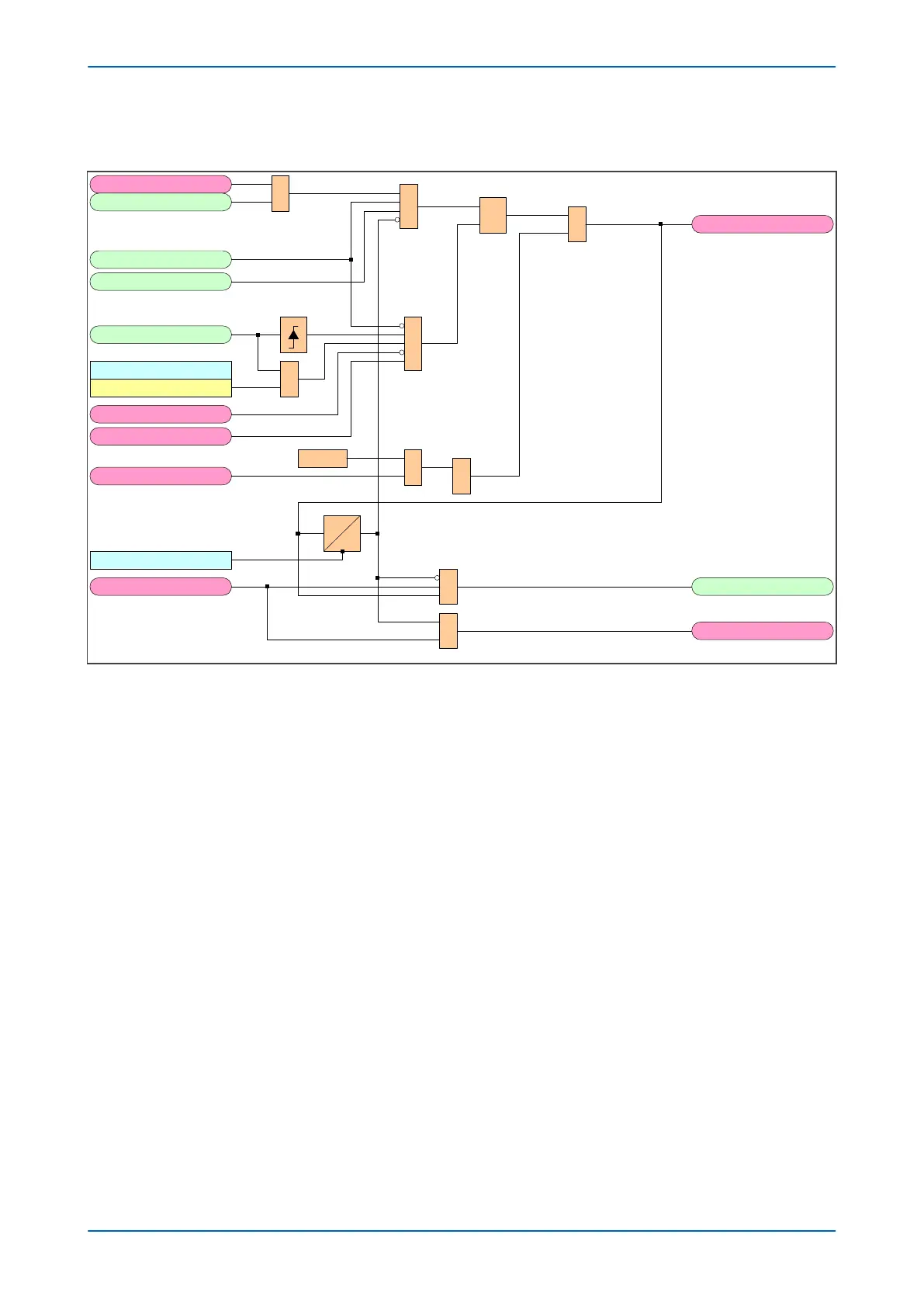

Figure 74: Single-phase Dead Time logic diagram (Module 24)
