GE P54E - Three-Phase Autoreclose System Check Logic Diagram; Figure 91: Three-Phase Autoreclose System Check Logic Diagram (Module 45)

To Next Page

To Previous Page

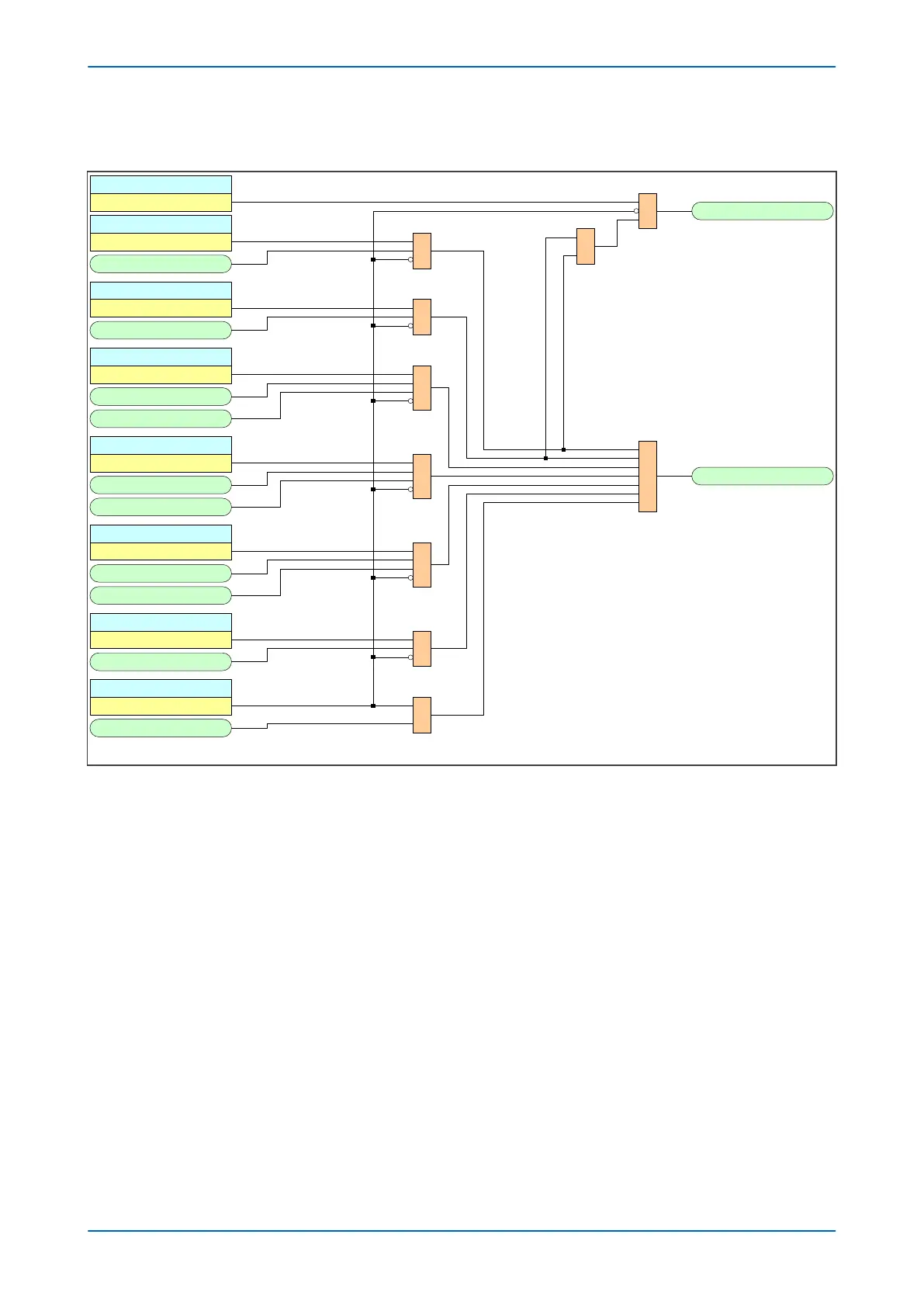

5.23.1 THREE-PHASE AUTORECLOSE SYSTEM CHECK LOGIC DIAGRAM

V03372

CB SC ClsNoDly

Enabled

CB SC CS1

Enabled

CB SC CS2

Enabled

Check Sync 1 OK

CB SC DLLB

Enabled

CB SC LLDB

Enabled

CB SC Shot 1

Disabled

CB SC all

Disabled

Check Sync 2 OK

Dead Line

Live Bus

Live Line

Seq Counter = 1

& CB Fast SCOK

CB SCOK

CB SC DLDB

Enabled

Dead Bus

Dead Line

Dead Bus

Ext CS OK

Note: If the DDB signal Ext CS OK is not mapped in PSL , it defaults to High.

Figure 91: Three-phase Autoreclose System Check Logic Diagram (Module 45)

P54A/B/C/E Chapter 7 - Autoreclose

P54xMED-TM-EN-1 177
