GE P54E - Voltage Monitor for CB Closure; Figure 136: Voltage Monitor for CB Closure (Module 59); System Checks

To Next Page

To Previous Page

9.2 VOLTAGE MONITOR FOR CB CLOSURE

V01257

VAN

Select

VBN

VCN

VAB

VBC

VCA

VBus

Live Line

Dead Line

Live Bus

Dead Bus

System Checks

Enabled

Voltage Monitors

& Live Line

Dead line

Dead Bus

Live Bus

Inhibit LB

Inhibit DB

Inhibit LL

Inhibit DL

MCB/VTS

MCB/VTS CB CS

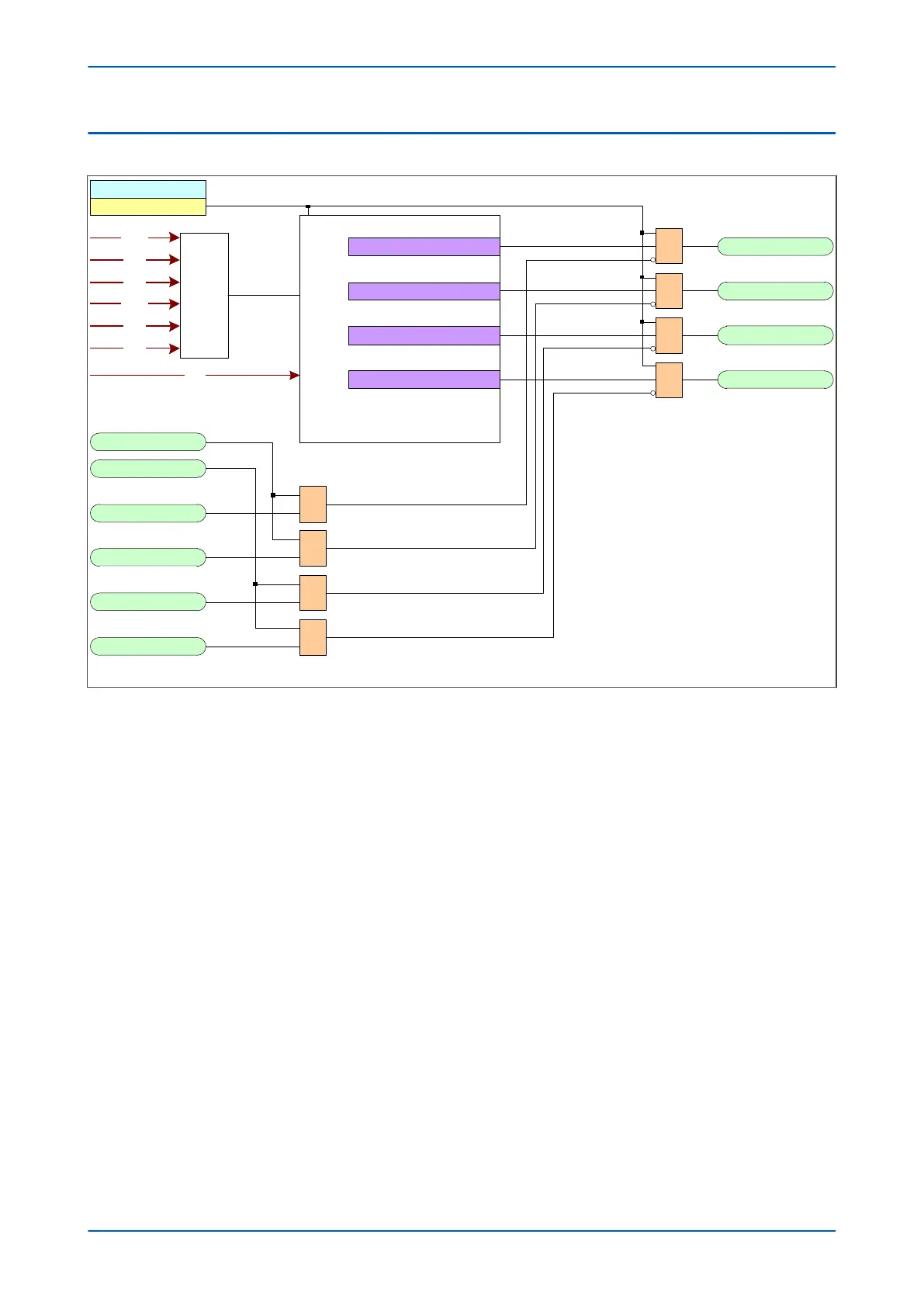

Figure 136: Voltage Monitor for CB Closure (Module 59)

Chapter 12 - Monitoring and Control P54A/B/C/E

270 P54xMED-TM-EN-1
