2.3 POC LOGIC

I>1 Timer Block

I>1 Start A

I>1 Start B

I>1 Start C

I>1 Trip A

I>1 Trip B

I>1 Trip C

I>1 Start

I>1 Trip

V00735

Timer Settings

I>1 Current Set

VTS Fast Block

I> Blocking

VTS Blocks I>1

Directional

check

I>1 Direction

VBC

VTS Fast Block

I> Blocking

VTS Blocks I>1

Directional

check

I>1 Direction

VCA

VTS Fast Block

I> Blocking

VTS Blocks I>1

Directional

check

I>1 Direction

VAB

Note: For the purpose of clarity , this diagram shows the first

relevant stage number for each signal and setting name .

832

401

762

656

763

657

764

658

761

655

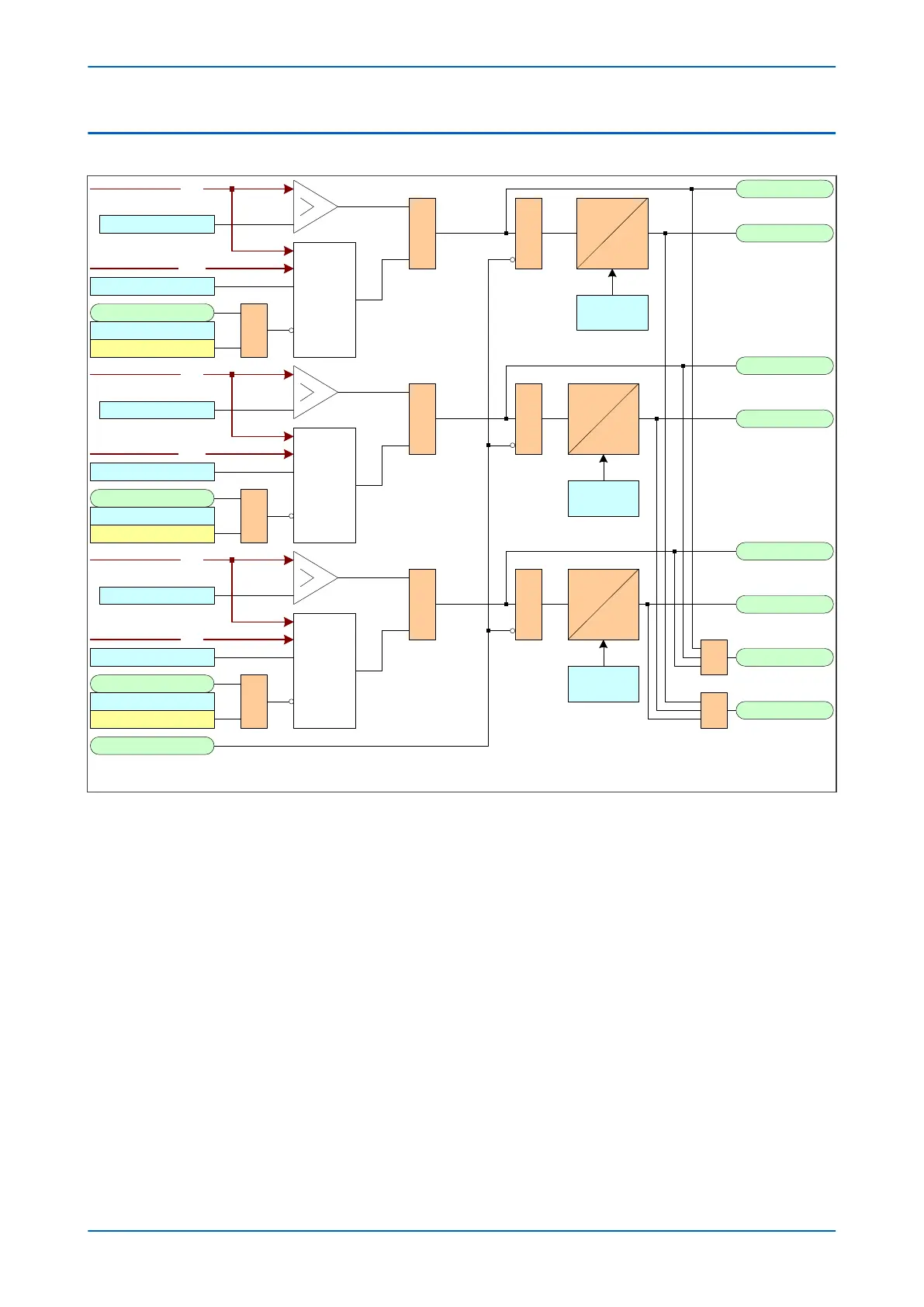

Figure 98: Phase Overcurrent Protection logic diagram

Chapter 9 - Current Protection Functions P54A/B/C/E

198 P54xMED-TM-EN-1
