5.2 RESIDUAL OVERVOLTAGE LOGIC

VN>1 Voltage Set

VN>1 Trip

V00802

VN>1 Start

VN>1 Timer Blk

VTS Fast Block

IDMT/DT

832

418

804

700

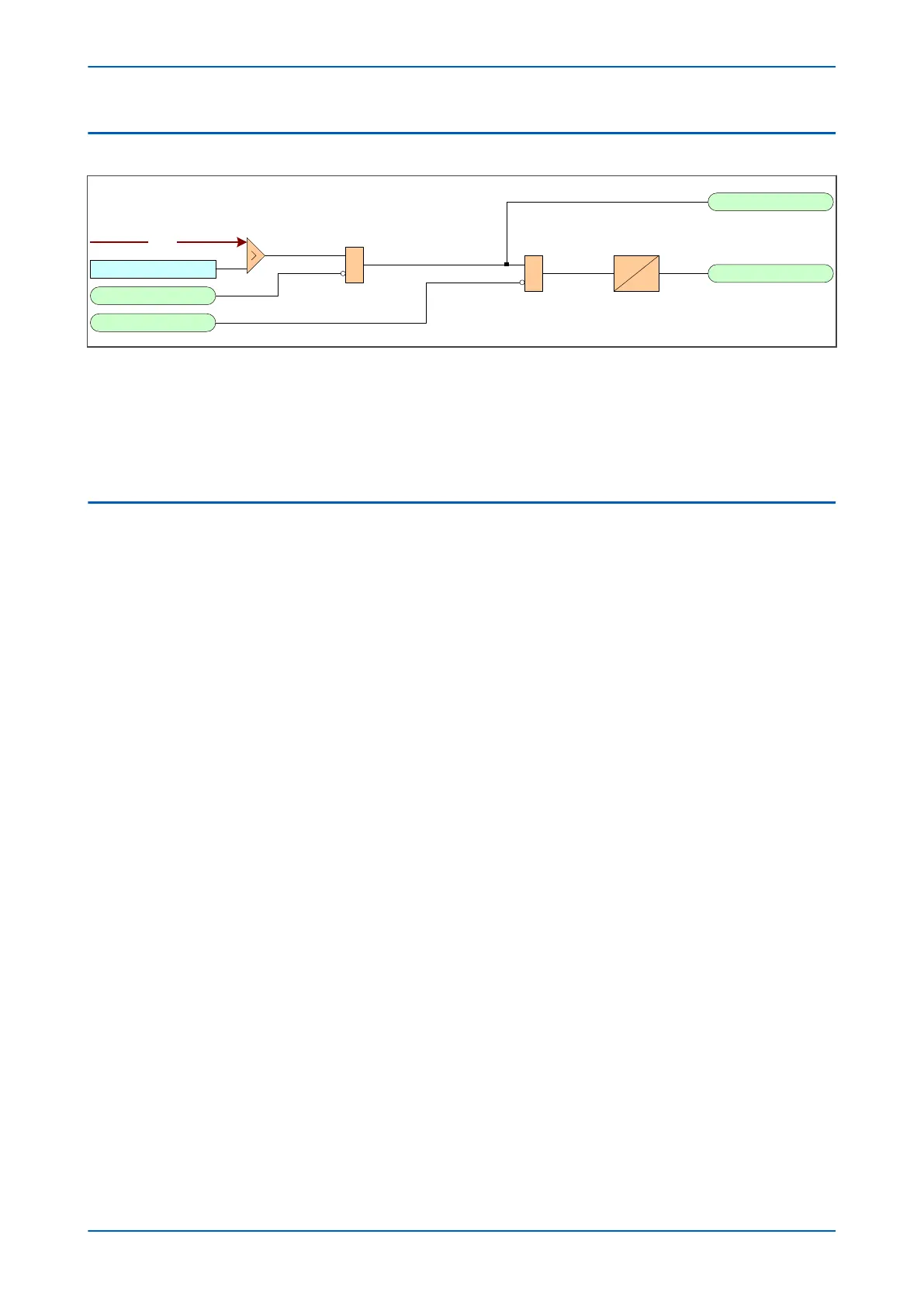

Figure 115: Residual Overvoltage logic

The R

esidual Overvoltage module (VN>) is a level detector that detects when the voltage magnitude exceeds a set

threshold, for each stage. When this happens, the comparator output produces a Start signal (VN>(n) Start), which

signifies the "Start of protection". This can be blocked by a VTS Fast block signal. This Start signal is applied to the

timer module. The output of the timer module is the VN> (n) Trip signal which is used to drive the tripping output

relay.

5.3 APPLICATION NOTES

5.3.1 CALCULATION FOR SOLIDLY EARTHED SYSTEMS

Consider a Phase-A to Earth fault on a simple radial system.

Chapter 10 - Voltage Protection Functions P54A/B/C/E

232 P54xMED-TM-EN-1
