7-14 Patient Data Module 2030047-001A
Field Replaceable Units
478A
7. Before installing the NBP assembly with manifold:
a. Make sure the pump and manifold are fully seated together.
b. Make sure the gasket is in place.
c. Position the manifold and pump in the bottom housing and carefully press to
seat connector.
d. Install the screw, then connect the hose. Slide hose all the way onto the
manifold fitting so that the hose lays flat.
e. Make sure the pump is resting between the positioning protrusions.
8. After replacing the NBP assembly with manifold, use the GEHC MS service tool
to clear all NBP statistics and perform the checkout procedures in the Solar
8000M/i service manual, Maintenance and checkout chapter.

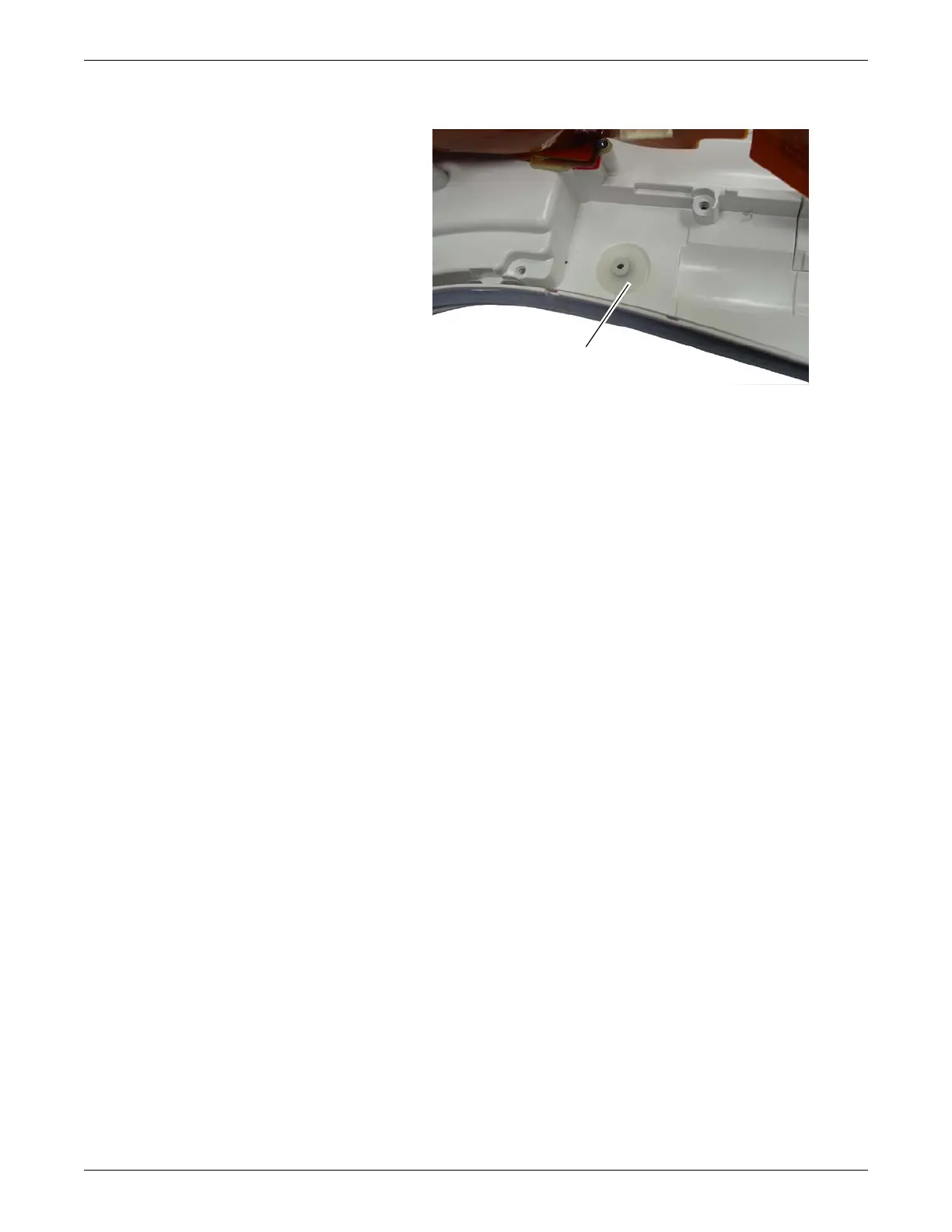

Interface gasket
To Next Page
