GE PDM - Mount Rail and Pull Tab

Field Replaceable Units
2030047-001A Patient Data Module 7-7
468A

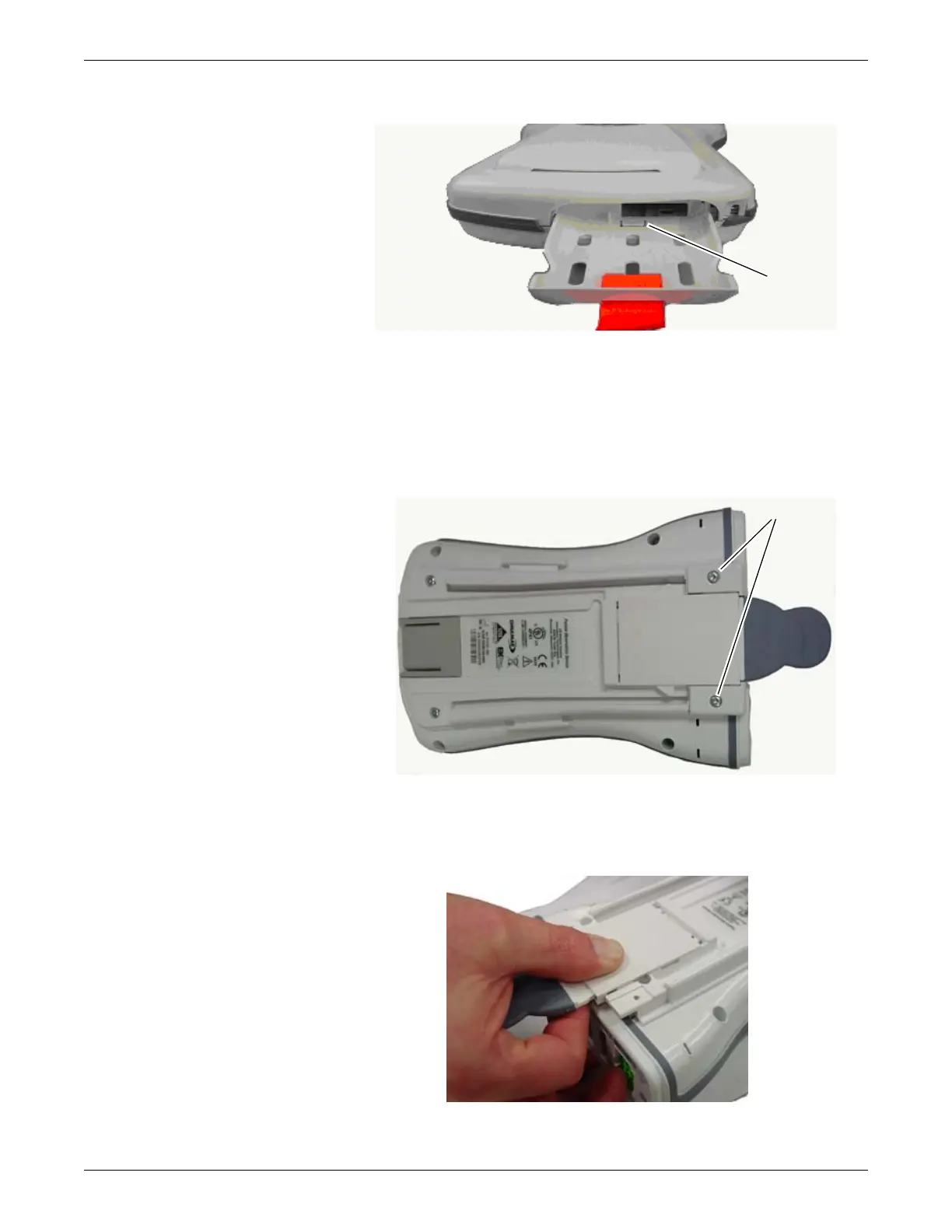

Mount rail and pull tab
1. Remove 2 screws on the latch stop. Remove the latch stop.
463A
2. Grasp the pull tab between thumb and index finger as shown and gently pull it
straight out about a half inch. Lift the assembly out of the rail slot.
catch tab
Latch stop
screws
