– 29 –

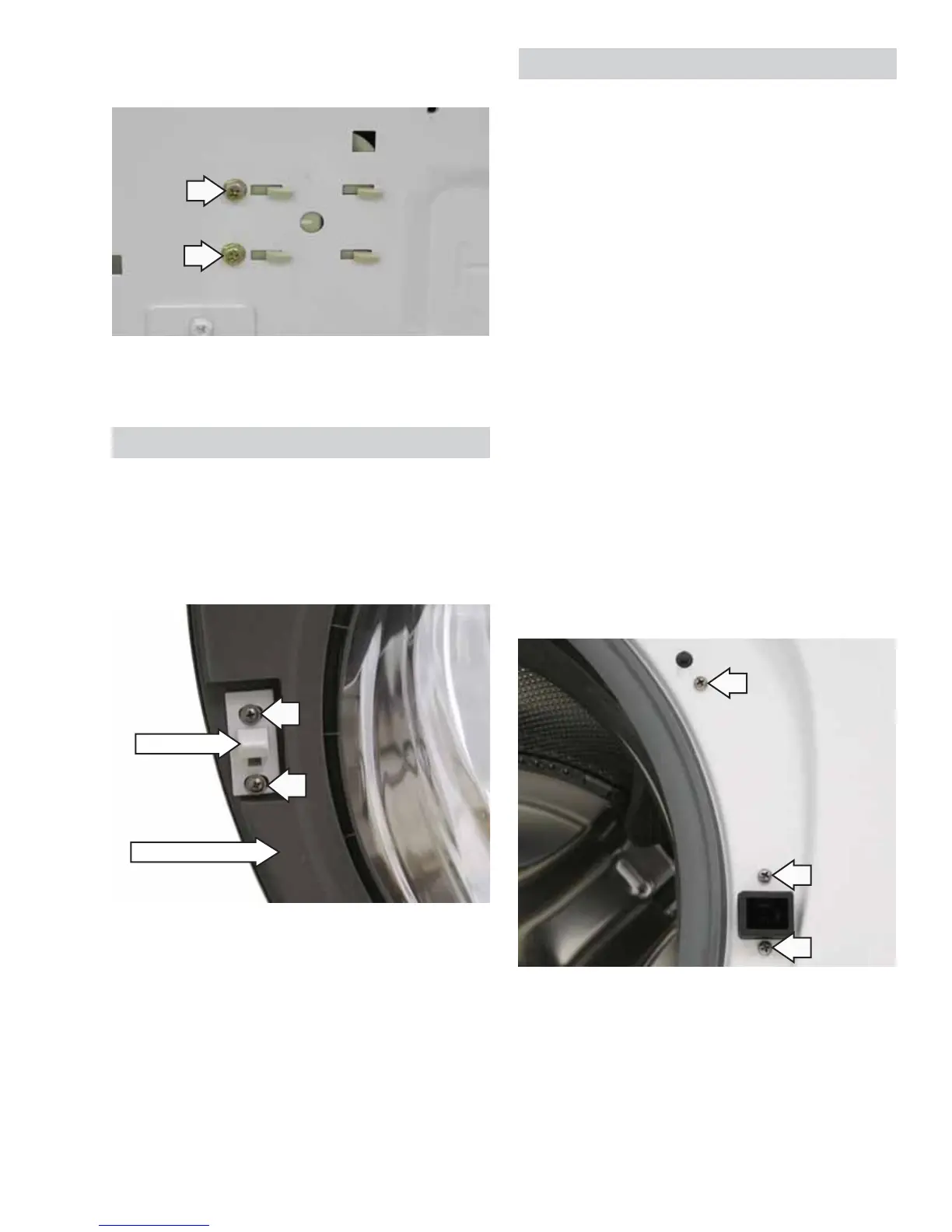

5. Remove the two 7-mm hex-head screws that
holds the line fi lter to the frame.
6. Slide the line fi lter to the right to disengage the
tabs.
Door Lock
The door lock contains a door switch and solenoid-
operated locking and unlocking mechanism.
The door locks when a cycle is entered (wake-up
routine) and during every cycle. The door unlocks at
the completion of a cycle.
The door will not open when:
• The foam switch is open.
• Water temperature is above 130°F (54°C).
• Wash basket is rotating.
Specifi c failures associated with the door lock can
initiate error codes E11, E12, E13, and E28. (See Error
Codes.)
The door lock is held to the front panel with 3
Phillips-head screws. The door lock is accessed from
the front of the washer when the right side of the
gasket is partially pulled back.
To remove the door lock:
1. Open the door and remove the 3 Phillips-head
screws that hold the door lock to the front panel.
(Continued Next Page)
Door Strike
To remove the door strike:
1. Open the door.
2. Remove the 2 Phillips-head screws that hold the
door strike to the door frame cover.
3. Remove the door strike.
Note: The door strike position on the door can be
horizontally adjusted 1/8 inch. Adjust the position of
the door strike for best door closure.
Door Frame Cover
Door Strike
To Next Page
