– 39 –
Overnight Ready Fan Motor
The overnight ready fan motor is attached to an air
compartment and vent that draw air out of the tub
thru a fi lter in the tub gasket. The fan motor is 120
VAC with a resistance of 32 . The blower motor,
blade, and housing come as an assembly (Part #
WH01X10515).

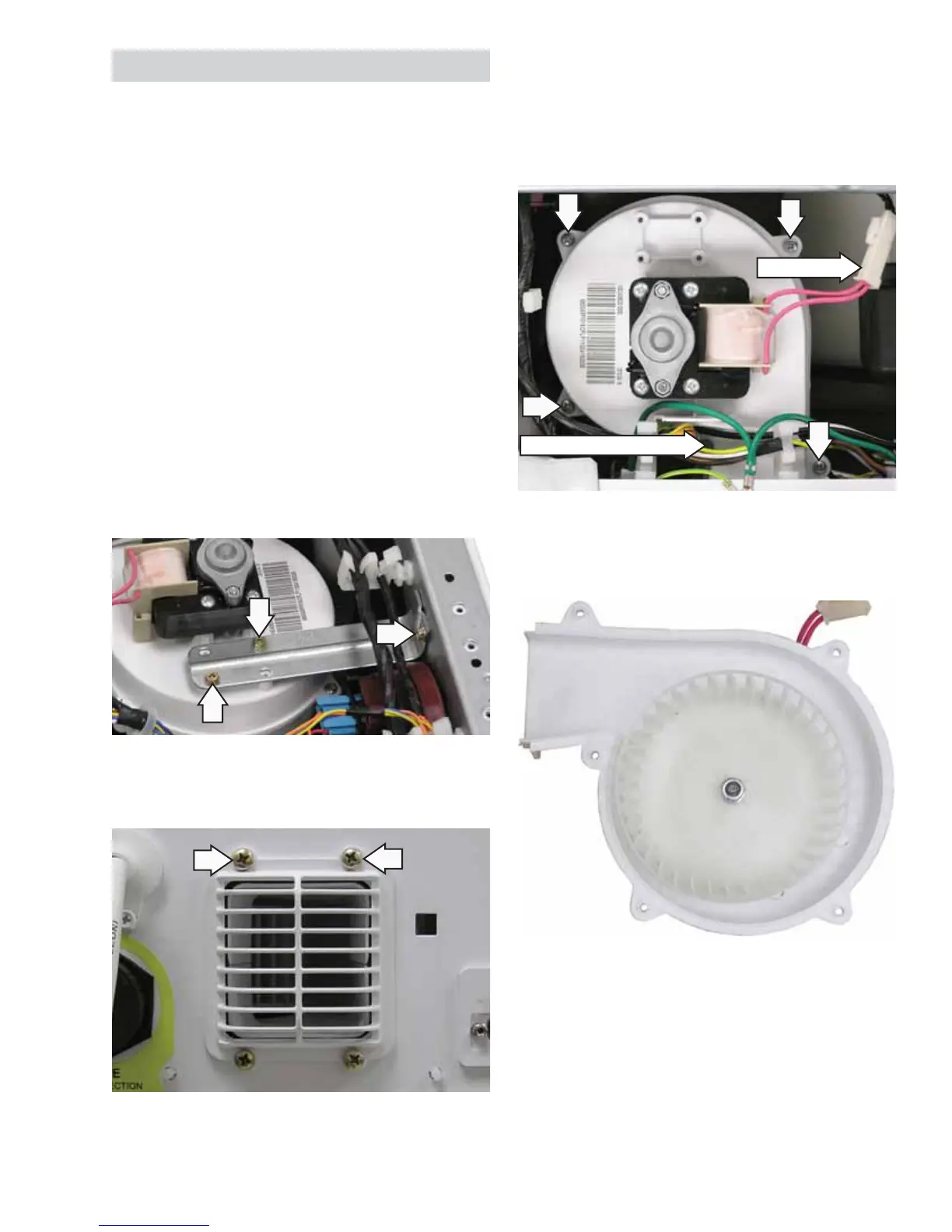

To remove the overnight ready fan motor:
1. Remove the top panel. (See Top Panel.)
2. Remove the two 6-mm hex-head screws holding
the overnight ready fan bracket to the overnight
ready fan housing.
Note: The fan bracket is attached to the washer
frame with 1 screw and a tab.
3. Remove the 6-mm hex-head screw from the
overnight ready fan bracket and remove the
bracket by sliding it up and out to release the
tab.
4. Remove 2 Phillips-head screws from the
overnight ready fan inlet vent.
5. Disconnect the overnight ready fan motor
wiring harness.
6. Remove the 5 Phillips-head screws from the
overnight ready fan housing (1 not shown).
Remove the top half of the housing.
(Continued Next Page)
7. Remove the 10-mm nut, lock washer, and
washer from the overnight ready fan to remove
the fan from the motor.
Disconnect
Screw (Underneath Wires)
To Next Page
