ā 32 ā
Dispenser
Vent Hose
Bulk Dispenser
Inlet Hoses
(Continued Next Page)
Note: An inlet tube is located between the inlet hose
and the dispenser tank. The inlet tube provides the
proper water pressure to the dispenser and nozzle.
When removing the inlet hose, the inlet tube may
remain in the hose. Ensure the inlet tube is fully
inserted into the tank inlet upon reassembly.

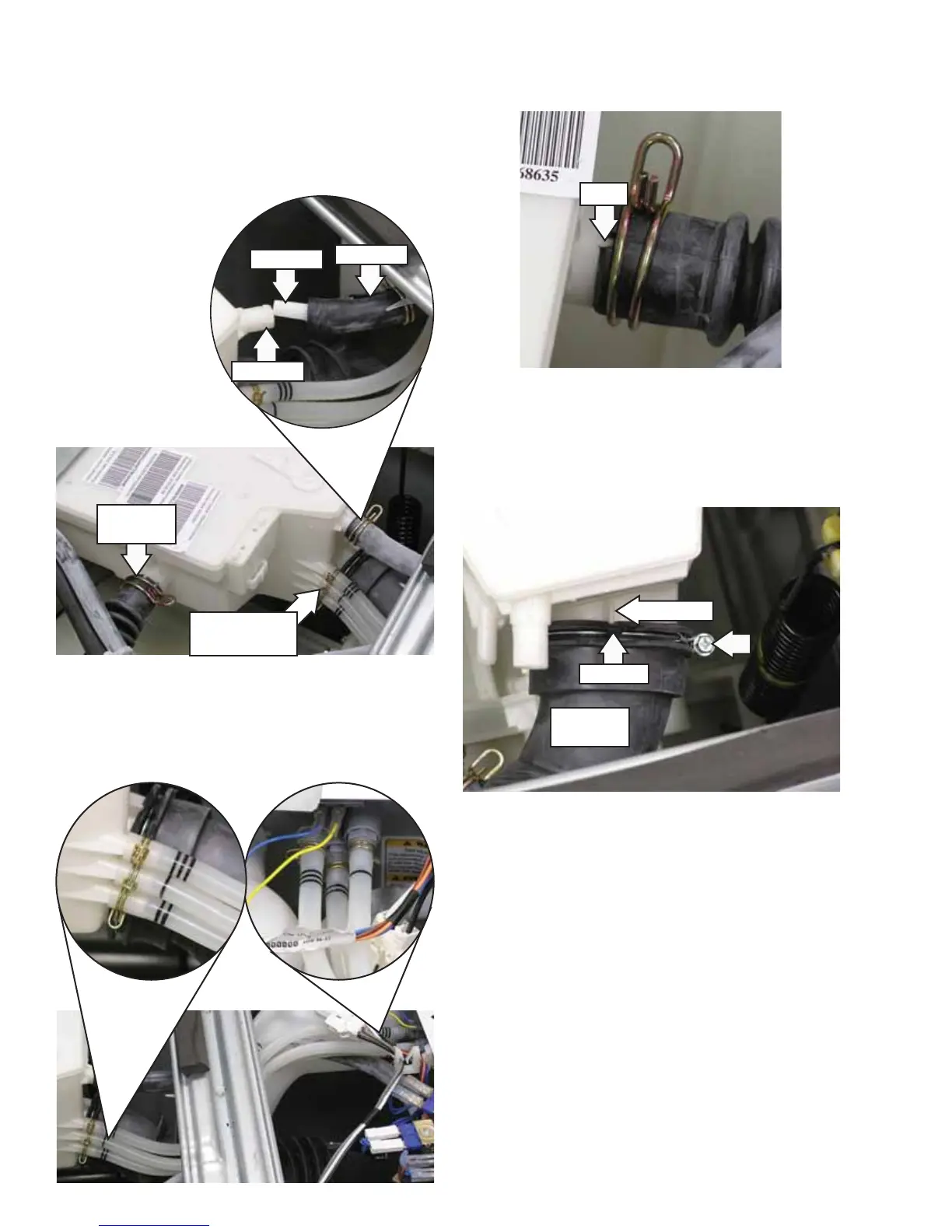

Bulk Hose Connections to Dispenser Tank
5. Using either a Phillips-head screwdriver or a
7-mm hex-head nut driver, loosen the clamp
screw , loosen the clamp, and remove the
dispenser outlet hose from the dispenser.
Note: Install the dispenser vent hose with the notch
aligned with the tab on the dispenser tank tube.
Tank Inlet
Inlet Tube
Inlet Hose
Tab
Protrusion
Indicator
Dispenser
Outlet Hose
Note: Install the dispenser outlet hose with the hose
indicator aligned with the dispenser tank protrusion.
To Next Page
