– 48 –

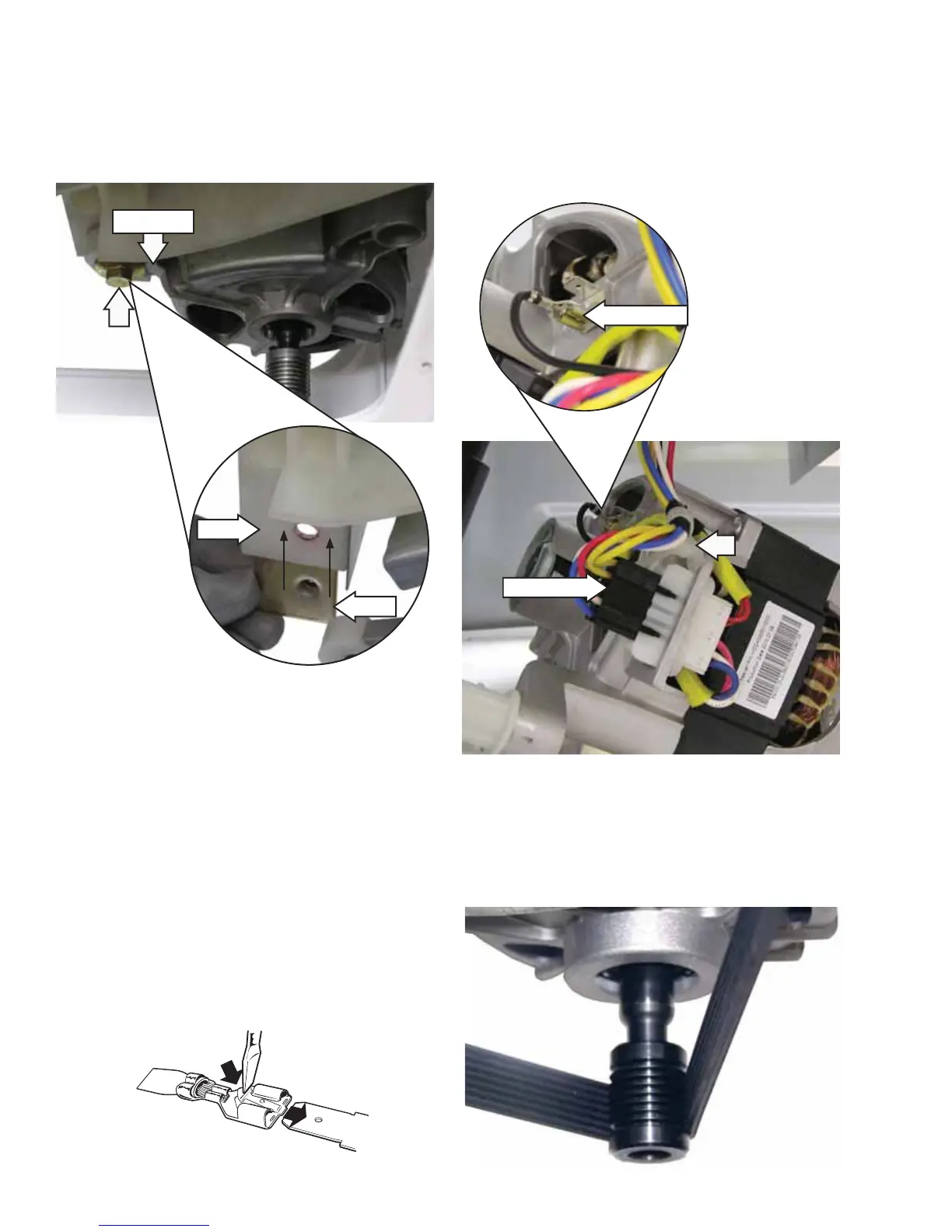

To remove the motor:
1. Remove the belt. (See
Belt.)
2. Remove the 1/2-in. bolt from the threaded plate
that holds the motor arm to the outer tub.
Slot
Plate
Note
• The threaded plate can fall out of the recessed
slot in the motor mount. Ensure this plate is
reinserted in the slot upon reassembly.
• When installing the bolt, apply Loctite (Part
# WX5X1005) to the bolt threads. Ensure the
motor arm is at the lowest position under the
motor bolt before tightening.
3. Rock the motor rearward to clear the motor
mounts from the outer tub. Place the motor on
the washer chassis.
Note: The motor ground wire connector has a
release/locking tab.
ELECTRICAL TERMINAL
RELEASE/LOCKING TAB
7. Lift the motor out of the washer.
Note: When reinstalling the belt, ensure it is
positioned to track in the 7 outer grooves of the
motor pulley.
Motor Arm
4. Press the locking tab and remove the motor
ground wire.
5. Disconnect the motor wire harness.
6. Remove the plastic wire tie that holds the motor
wire harness and ground wire to the motor.
Disconnect
Disconnect
To Next Page
