4. Conventional Operation: Menu System, Keypad, and Displays
PHASOR XS Operating Manual
Page 49

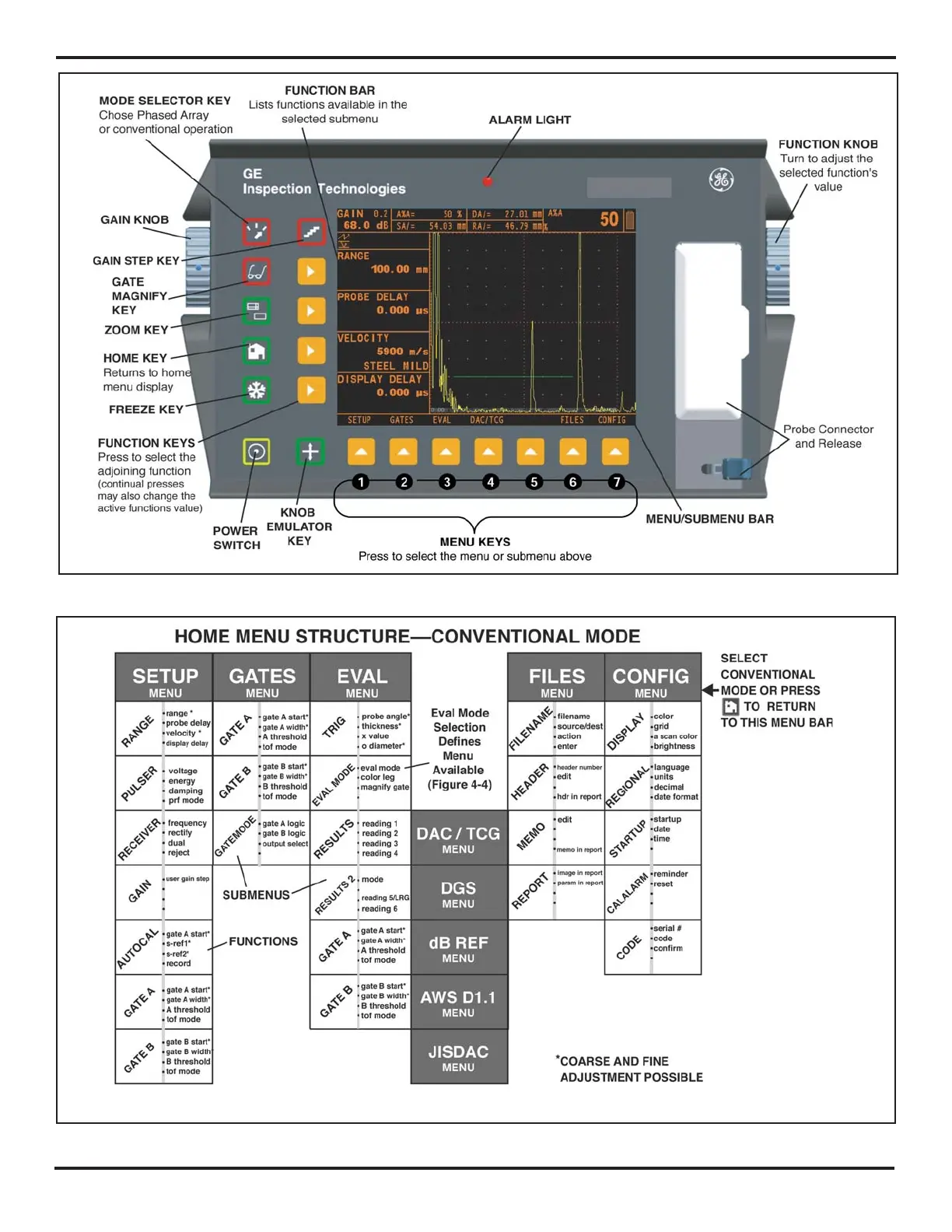

FIGURE 4-2—Some of the keypad and knob functions are shown here.
FIGURE 4-3—These conventional menus, submenus, and functions are accessed through the Home Menu.
