4. Conventional Operation: Menu System, Keypad, and Displays
Page 54 PHASOR XS Operating Manual
Turn on the instrument by pressing
. First press
to select Conventional Mode. The Home Menu will be
activated. This menu’s structure was shown in
Figure 4-3.
Activate the Setup Menu by pressing
below it. Some
submenus and functions from the Setup Menu are shown in
Figure 4-7.
4.6.1 Language, Units of Measurement,
Date, and Time
Use the procedures below to adjust the unit of measure-
ment, the date, the time, and the language that appears
on the instrument’s display screens and data output.
The adjustments will require access to the REGIONAL
and STARTUP Submenus. These are accessed from the
CONFIG Menu (shown in
Figure 4-7).
Setting the Operating Language
(CONFIG-REGIONAL-LANGUAGE)
Step 1: Activate the REGIONAL Submenu (located in the
CONFIG Menu) by pressing
below it. Four functions
will appear down the left side of the display screen.

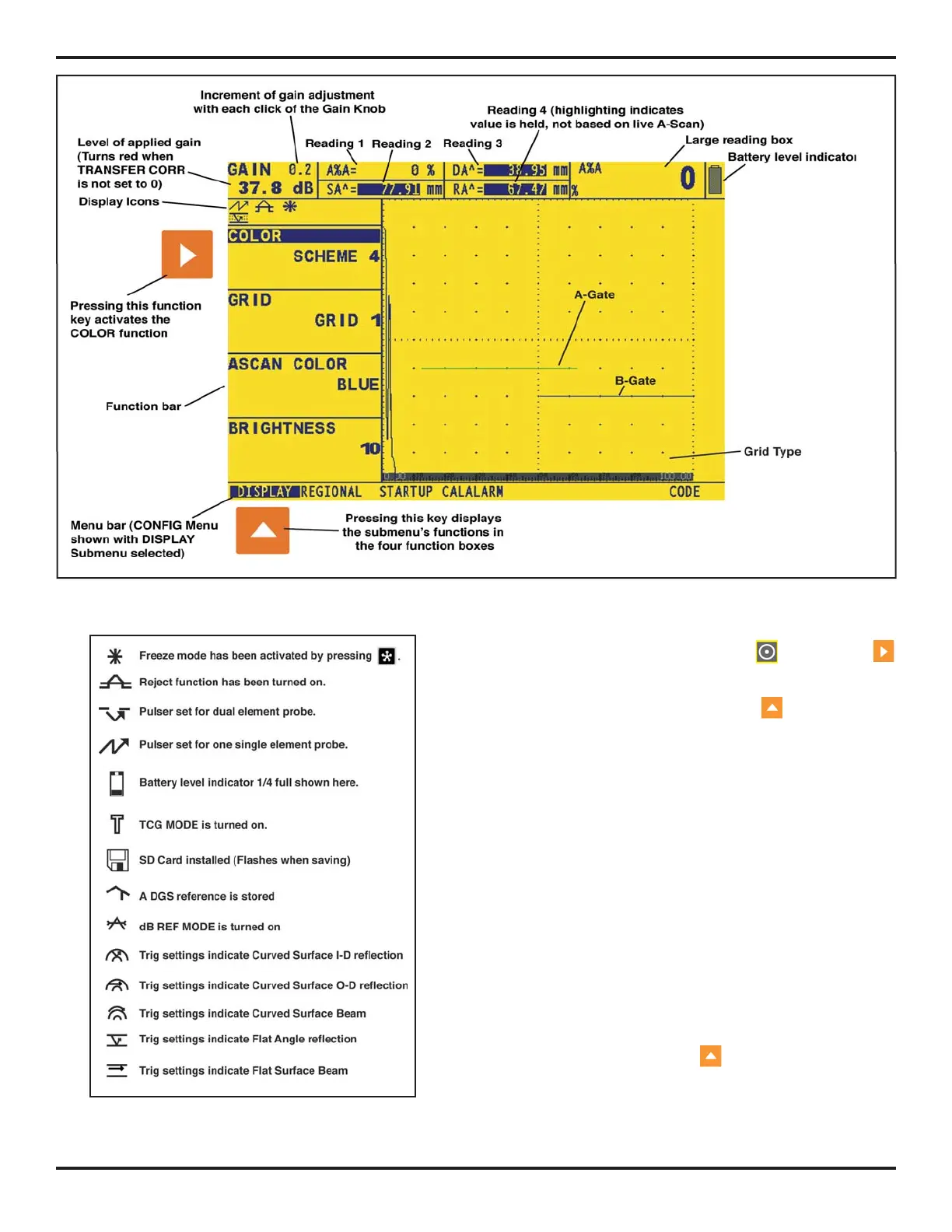

FIGURE 4-5—Display Screen Features
FIGURE 4-6—These icons appear on the
display at various times.
