Washer Components
2. Place a towel over the lid of the washer to
prevent scratches to the surface. Lift each
corner of the backsplash vertically while
pulling back to disengage the 2 tabs. Roll the
backsplash forward so it rests on top of the
washer.

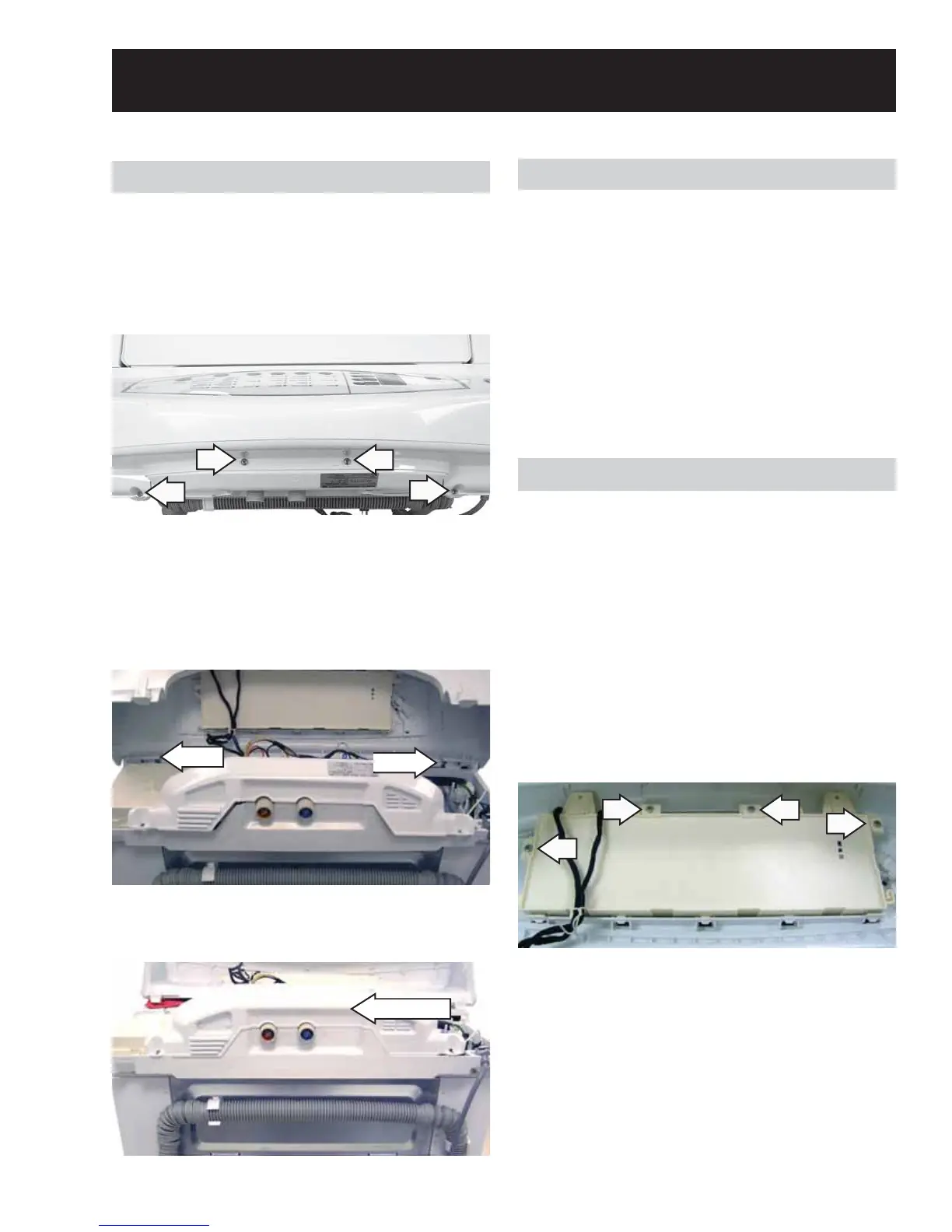

Backsplash
The backsplash must be removed to access the
control system components.
To remove the backsplash:
Remove the 4 Phillips-head screws that hold the 1.
backsplash in place.
Tab
Tab
3. Lift the backsplash rear panel vertically and
remove.
Control System
The washer control system consists of two main
components:
Main PCB•
Inverter PCB•
Caution: To prevent electrostatic discharge from
damaging any electronic components, use an ESD
wristband or touch a grounded metal surface before
servicing.
Main Control Board and LCD
The main control board and LCD are attached to the
backsplash as one unit. The main control board and
LCD are only available as a complete assembly.
To remove the main control board and LCD
assembly:
Remove the backsplash. (See 1.
Backsplash.)
Remove the 4 Phillips-head screws that hold 2.
the main control board and touch screen LCD
assembly in place. Remove the assembly.
Rear Panel
