– 21 –

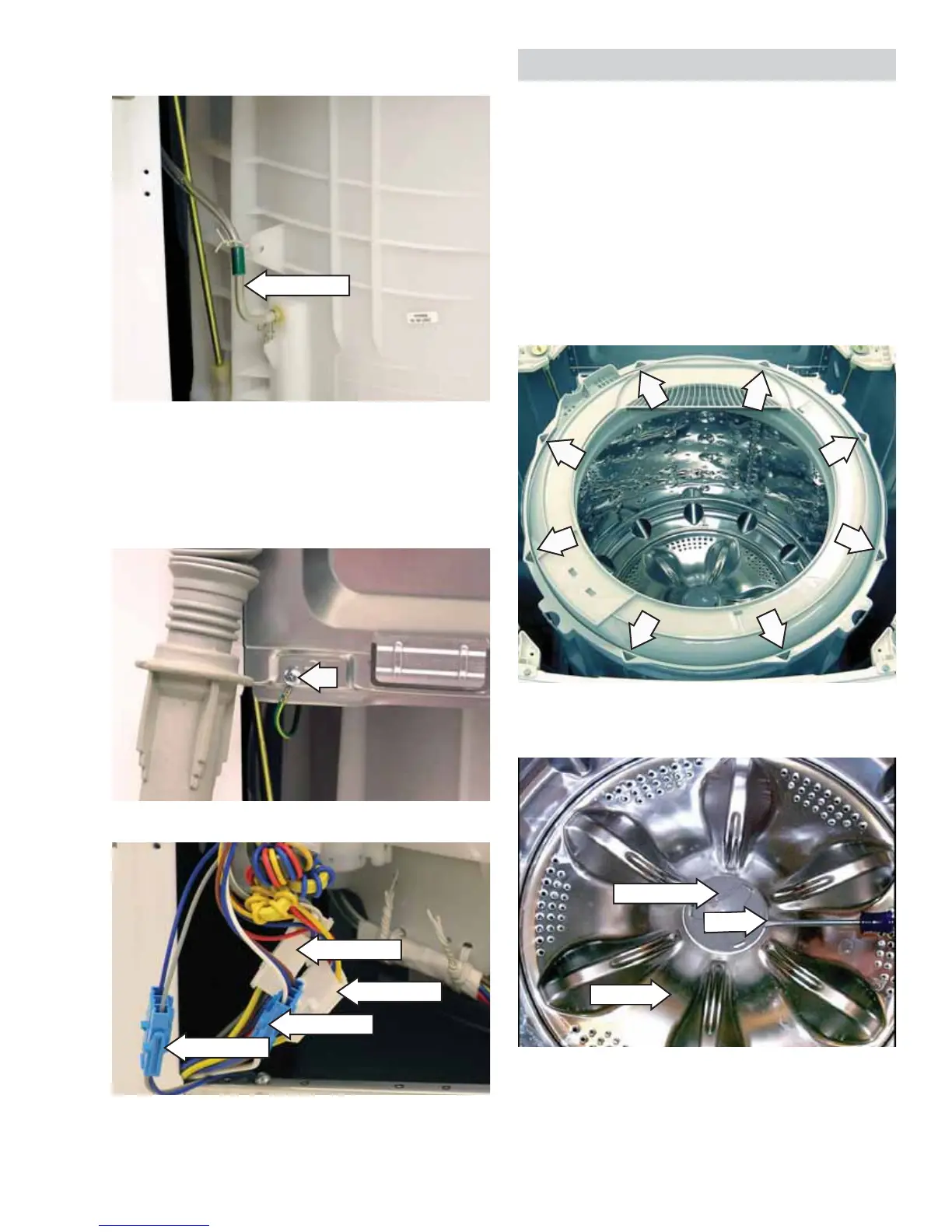

4. The main wiring harness is held in place by
plastic clips on the inside corner of the washer
cavity. Remove the wiring harness from the
holding clips.
5. Remove the screw that holds the ground wire to
the upper back cover.
3. Disconnect the pressure sensor hose from the
outer tub.
7. Lift the back of the top cover and slide it forward
to clear the front tabs.
6. Disconnect the four wiring harness connectors.
Disconnect
Disconnect
Disconnect
Disconnect
Disconnect
Wash Basket
Caution: If the basket is not free to rotate, damage
to the clutch coupler can occur. Ensure that the
washer is in the spin mode before removing the
wash basket. The wash basket will rotate freely
when it is in spin mode. Do not attempt to remove
the hub nut if the basket is not free to rotate.
To remove the wash basket:
Remove the top cover. (See 1.
Top Cover.)
Remove the 8 Phillips-head screws that hold the 2.
outer tub cover in place.
3. Place a fl at blade screwdriver in the slot under
the infusor cap and gently pry off.
Infusor Cap
(Continued Next Page)
Infusor
Slot
To Next Page
