5. Disconnect the wiring harnesses from the stator
and the Hall sensor.
IMPORTANT: The motor connector and Hall sensor
connector are very fragile, handle with care.
Note: When reassembling, be sure to put the motor
and Hall sensor wires back in the wiring guard away
from the motor.

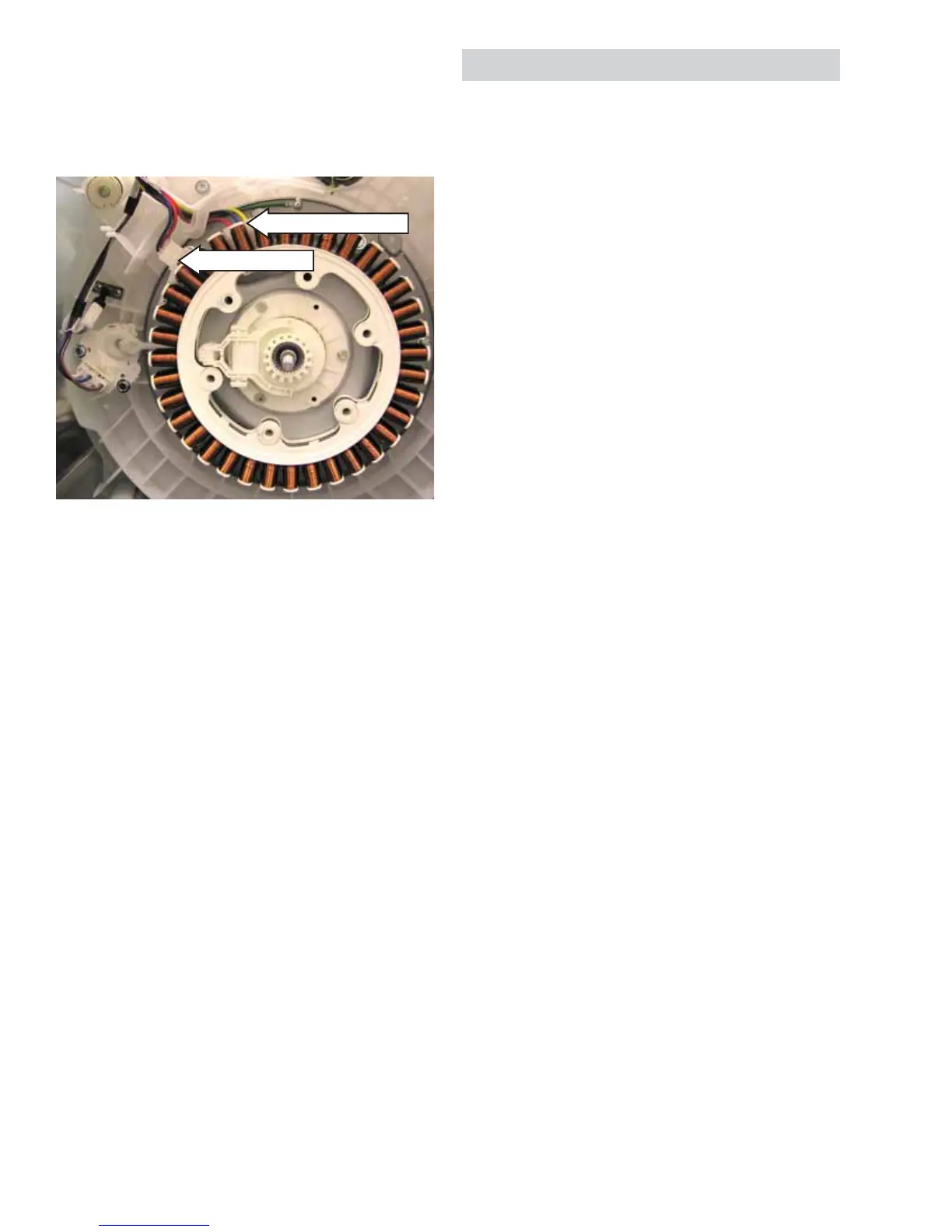

Stator Connector
Hall Sensor Connector
Clutch Shifter Assembly
The clutch assembly locks or unlocks the basket
and infusor together, depending on the wash cycle
pattern. (See Basic Wash Cycle for a brief description
of wash cycles.)
The infusor is connected directly to the motor •
shaft. Whenever the motor is rotating, the
infusor is rotating.
The clutch only locks or unlocks the wash •
basket.
When the washer fi rst starts a cycle, the infusor
moves back and forth several times to make sure
the basket and infusor are in the unlocked position
before starting. This action is called “clutching” and
confi rms that the clutch motor is in the unlocked
position.
Note: Wash cycle patterns will vary depending on
user time adjustments, soil level adjustments, fabric
types, and wash-load weights.
The infusor and basket are in the locked position
during the following cycles:
Water Fill•
Wet Load Sensing•
Basket Wash•
Centrifusion Wash•
Spin•
Spray Rinse•
The infusor and the basket are in the unlocked
position during the following cycles:
Dry Load Sensing•
Infusor Wash•
(Continued Next Page)
