– 23 –

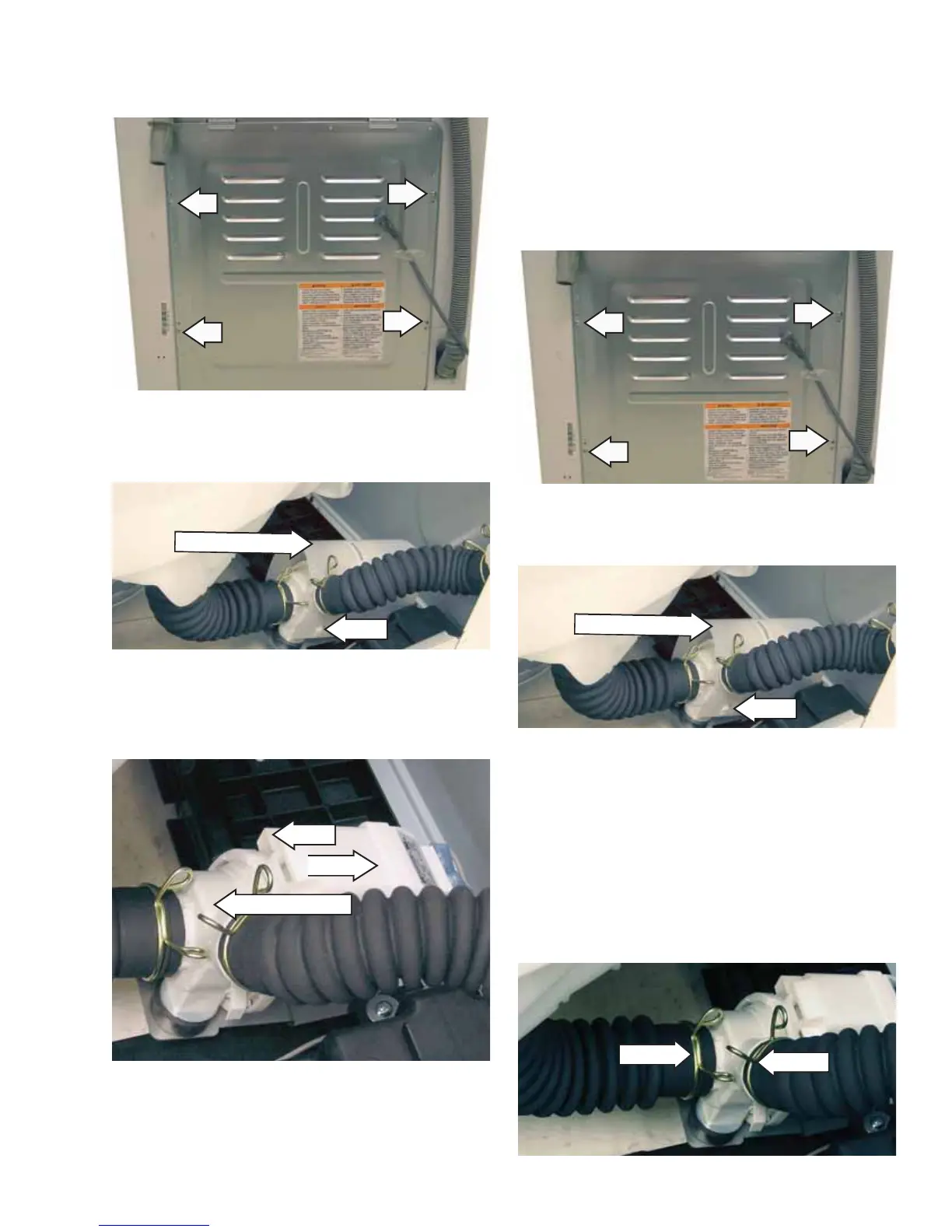

4. Lift up the tab on the impeller housing with a
fl at blade screwdriver. When viewed from the
impeller housing end, rotate the motor in a
counterclockwise direction to remove.
(Continued Next Page)
Impeller Housing
Tab
3. Remove the thin plastic cover over the drain
pump by pulling down on the ends to clear the
tabs.
5. Remove any foreign objects from the impeller
and impeller housing. Inspect the impeller for
any damage, and replace the pump assembly if
necessary.
Tab
To remove the drain pump:
Note: Water will remain in the hoses even when
the tub appears empty. Use care to avoid water
spills.
Disconnect power to the machine.1.
Remove the 4 Phillips-head screws (2 on each 2.
side) that hold the back cover in place. Remove
the back cover,
4. Remove the drain hoses from the pump:
Note: The drain hoses are diffi cult to remove due to
a sealing compound used at the factory.
a. Squeeze each clamp and slide it back.
b. Carefully break the hoses loose by
inserting a small fl at-blade screwdriver
under the hoses to break the seal.
c. Remove the hoses.
Clamp
Clamp
3. Remove the thin plastic cover over the drain
pump by pulling down on the ends to clear the
tabs.
Tab
2. Remove the 4 Phillips-head screws (2 on each
side) that hold the back cover in place. Remove
the back cover.
Drain Pump Cover
Drain Pump Cover
Motor
To Next Page
