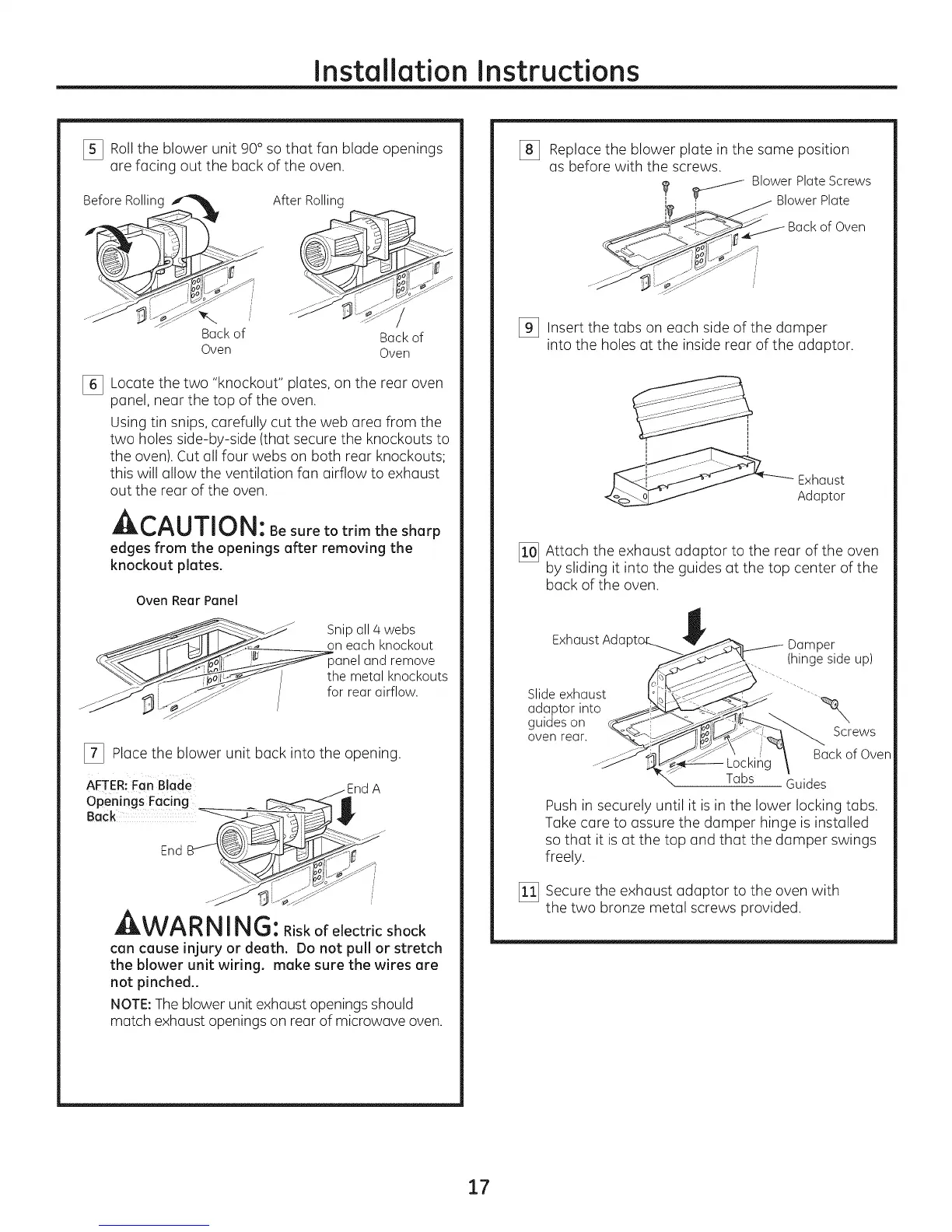

Installation Instructions
I_ Roll the blower unit 90° so that fan blade openings
are facing out the back of the oven.
BeforeRolling
Backof
Oven
After Rolling
Back of
Oven
%
Locate the two "knockout" plates, on the rear oven
panel, near the top of the oven.
Using tin snips, carefully cut the web area from the
two holes side-by-side (that secure the knockouts to
the oven). Cut all four webs on both rear knockouts;
this will allow the ventilation fan airflow to exhaust
out the rear of the oven.
A,'-^l a-v-m,_t,,
_._uu ul_: Besuretotrimthesharp
edges from the openings after removing the
knockout plates.
Oven Rear PaneJ
Snipall4 webs
on eachknockout
anel and remove
___ / _hemetal knockouts
_ ps.__z / for rear airflow.
[_ Place the blower unit back into the opening.
AFTER:Fan Blade
Openings Facing
Back
A
End
WA RNING:Riskofelectricshock
can cause injury or death. Do not pull or stretch
the blower unit wiring, make sure the wires are
not pinched..
NOTE:The blower unit exhaust openings should
match exhaust openings on rear of microwave oven.
%
Replace the blower plate in the same position
as before with the screws.
_ BlowerPlateScrews
BlowerPlate
_J _c!O__ Backof Oven
.... J ..... j.s>-
[_ Insert the tabs on each side of the damper
into the holes at the inside rear of the adaptor.
--- Exhaust
Adaptor
[_ Attach the exhaust adaptor to the rear of the oven
by sliding it into the guides at the top center of the
back of the oven.
ExhaustAda
Slide exhaust
adaptor into
guides on
oven rear.
Damper
(hingesideup)
Screws
Back of Oven
Locking
Tabs Guides
Push in securely until it is in the lower locking tabs.
Take care to assure the damper hinge is installed
so that it is at the top and that the damper swings
freely.
[_ Secure the exhaust adaptor to the oven with
the two bronze metal screws provided.
17
