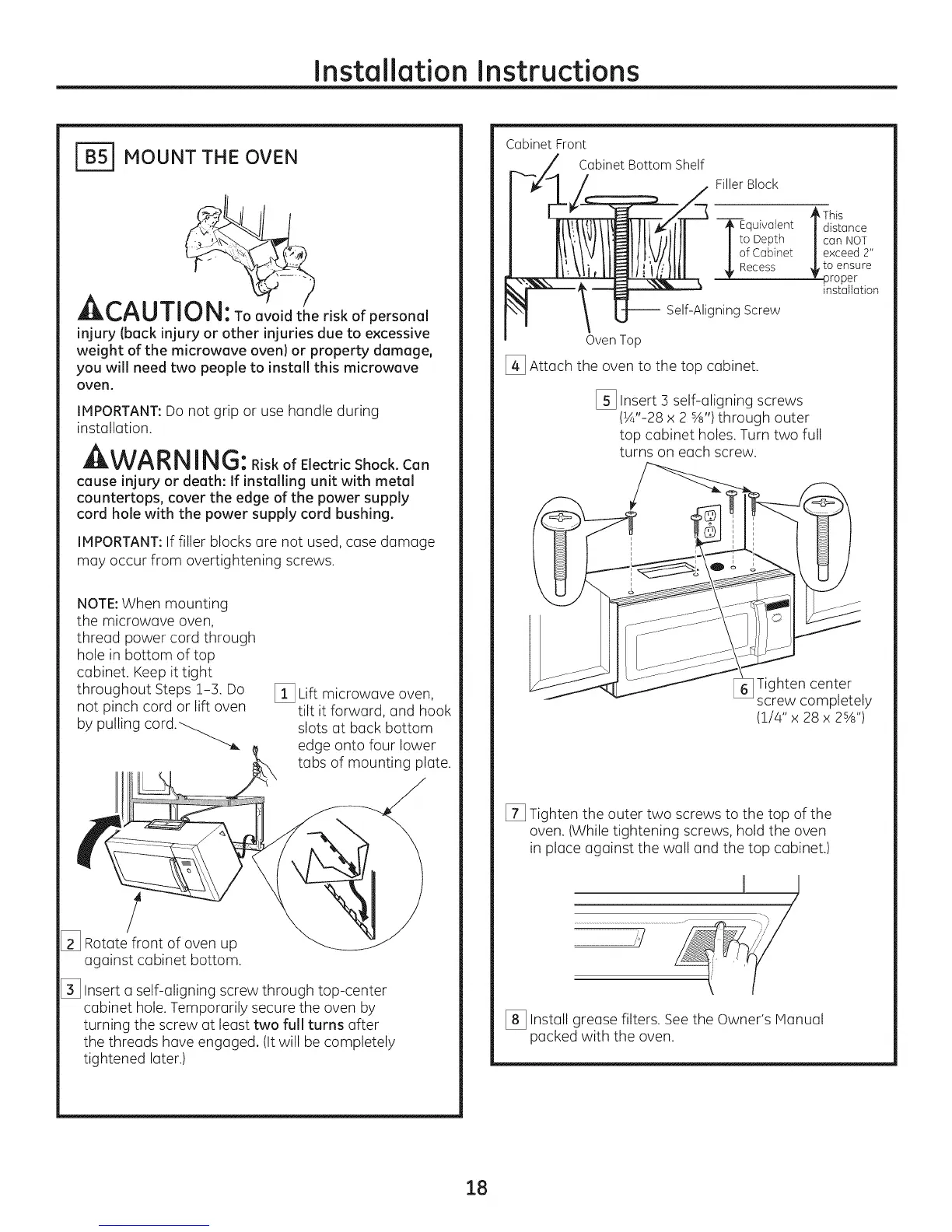

Installation Instructions
[_ MOUNT THE OVEN
,CAUTIO . To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave ovenl or property damage,
you will need two people to install this microwave
oven.
IMPORTANT: Do not grip or use handle during
installation.
Jl_t'_ f1,|_ | |_ !lJ: Riskof Electric Shock. Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT:If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE:When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling cord.-_.._
[_ Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
/
[_ Rotate front of oven up
against cabinet bottom.
[_ Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
Cabinet Front
Cabinet Bottom Shelf
Filler Block
___E° _Ths
quivaJent | distance
o Depth |can NOT
f Cabinet | exceed 2"
Recess _ to ensure
_proper
installation
-- Self-Aligning Screw
OvenTop
[_ Attach the oven to the top cabinet.
[_ Insert 3 self-aligning screws
(½"-28 x 2 %') through outer
top cabinet holes. Turn two full
turns on each screw.
Tighten center
screw completely
(!/4" x 28 x 2%')
[] Tighten the outer two screws to the top of the
oven. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
II I
/
[_ Install grease filters. Seethe Owner's Manual
packed with the oven.
18
