Chapter 2. Getting Started
12 QuickPanel+ User’s Manual–November 2013 GFK-2847
 A 24VDC power supply. For requirements, see the Input power specification on page
8.
A power terminal block is supplied.
 Power cord with 30 – 14 AWG (0.05 – 2.00 mm
2
) wires
 USB-compatible keyboard (optional)
 USB-compatible mouse (optional)
2.3.1 Connecting Input Power
1. Make sure that the power cable is not energized
and that the QuickPanel+ unit is not on.

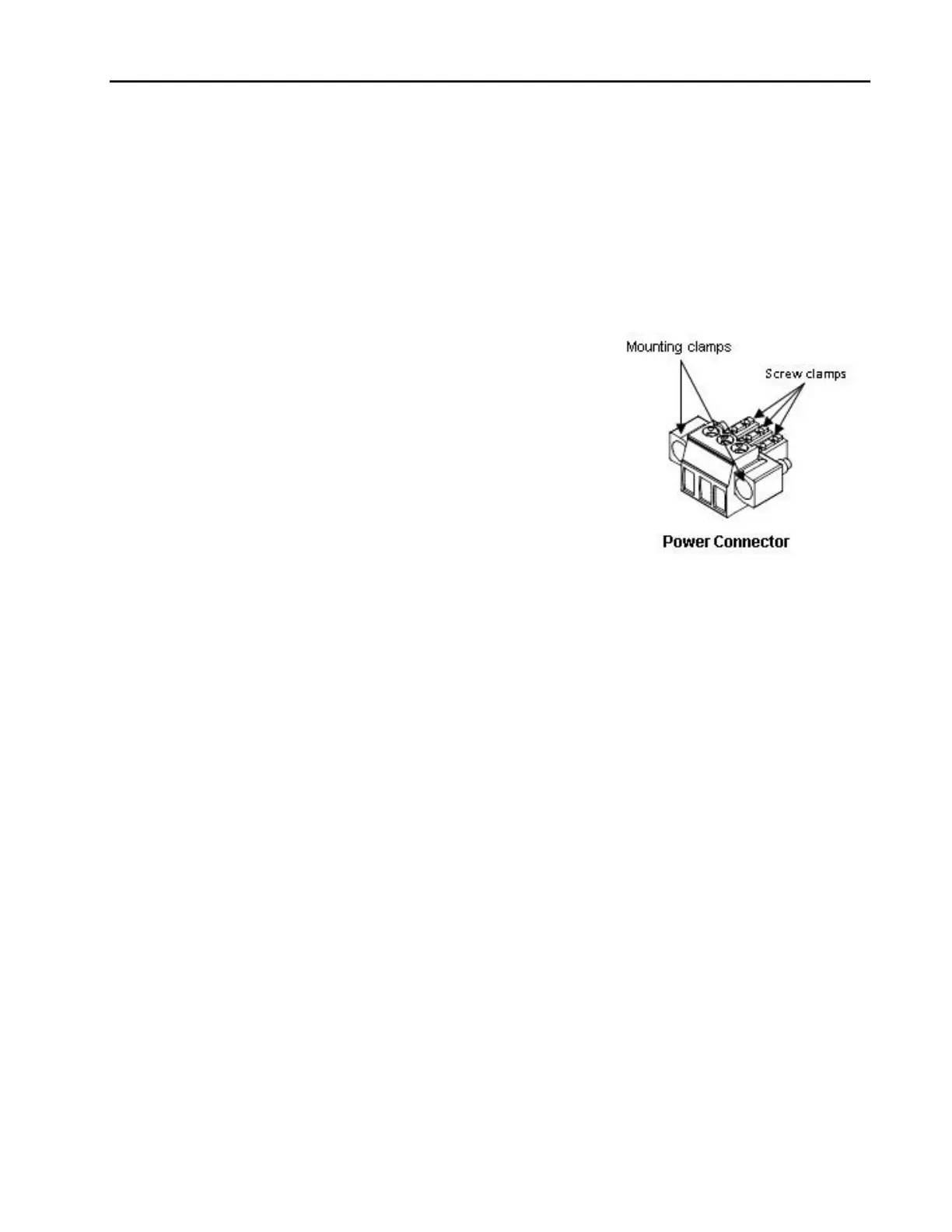

2. Loosen the screw clamps on the mating power
connector
3. Strip the insulation from the power cables.
4. Secure the power cable to the mating connector
while noting polarity and tighten the screw clamps.
The torque for the attaching screws is 0.31 Nm.
5. Apply DC power to the unit.
During normal power up and operation, the
QuickPanel Status LED display is:
 Solid amber while the QuickPanel+ unit is starting up
 Solid green during normal operation
6. Once power is applied, the QuickPanel+ begins initializing. The first thing to appear on the
display is the splash screen.
To skip running any programs included in the StartUp folder, tap Don’t run StartUp
programs.
7. The Microsoft Windows Embedded Compact 7 operating system starts automatically.
During powerup, you should see the normal operating system starting displays.
To activate the operating system online, you will need to first configure the Ethernet
settings for operation on your network, as described in “Initial Configuration.”
You can find the operating system product key on the Microsoft Certificate of Authenticity
label, which is on the back of the QuickPanel+.
