Chapter 4. Installation
GFK-2847 QuickPanel+ User’s Manual–November 2013 23
4.5 Installing/Replacing the Battery

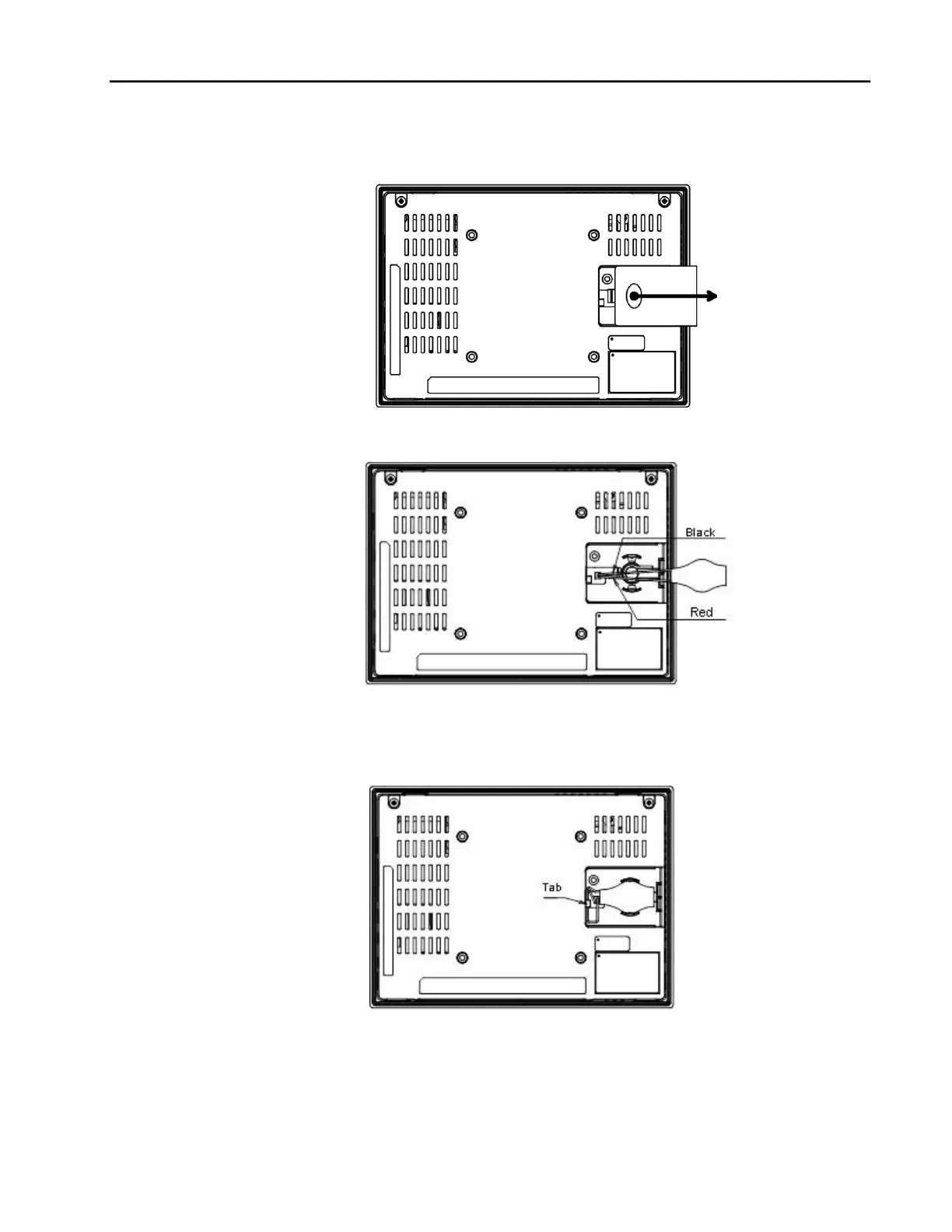

1. Remove the battery cover by pressing down while sliding outward.
2. Connect the harness connector of the battery to the header, noting keyed orientation.
3. Pull Make sure that positive (red) is down and negative (black) is up
4. Wrap harness connector around to match the picture below.
5. Do not let the harness connector go above the tab.
6. Slide the battery cover into place, taking care not to pinch the harness connector.
