Chapter 4. Installation
26 QuickPanel+ User’s Manual–November 2013 GFK-2847
DHCP (Dynamic Host Configuration Protocol). The network server assigns an IP
address while the QuickPanel+ is initializing. (You must be connected to the
network).There must be a DHCP server on the connected network for a valid IP
address to be assigned. Contact your network administrator to ensure correct DHCP
server configuration.
Manual method. You specify the numeric addresses obtained from your network
administrator for the QuickPanel+ IP Address, Subnet Mask and Default Gateway (if
applicable).
To save the settings, run the Backup utility.

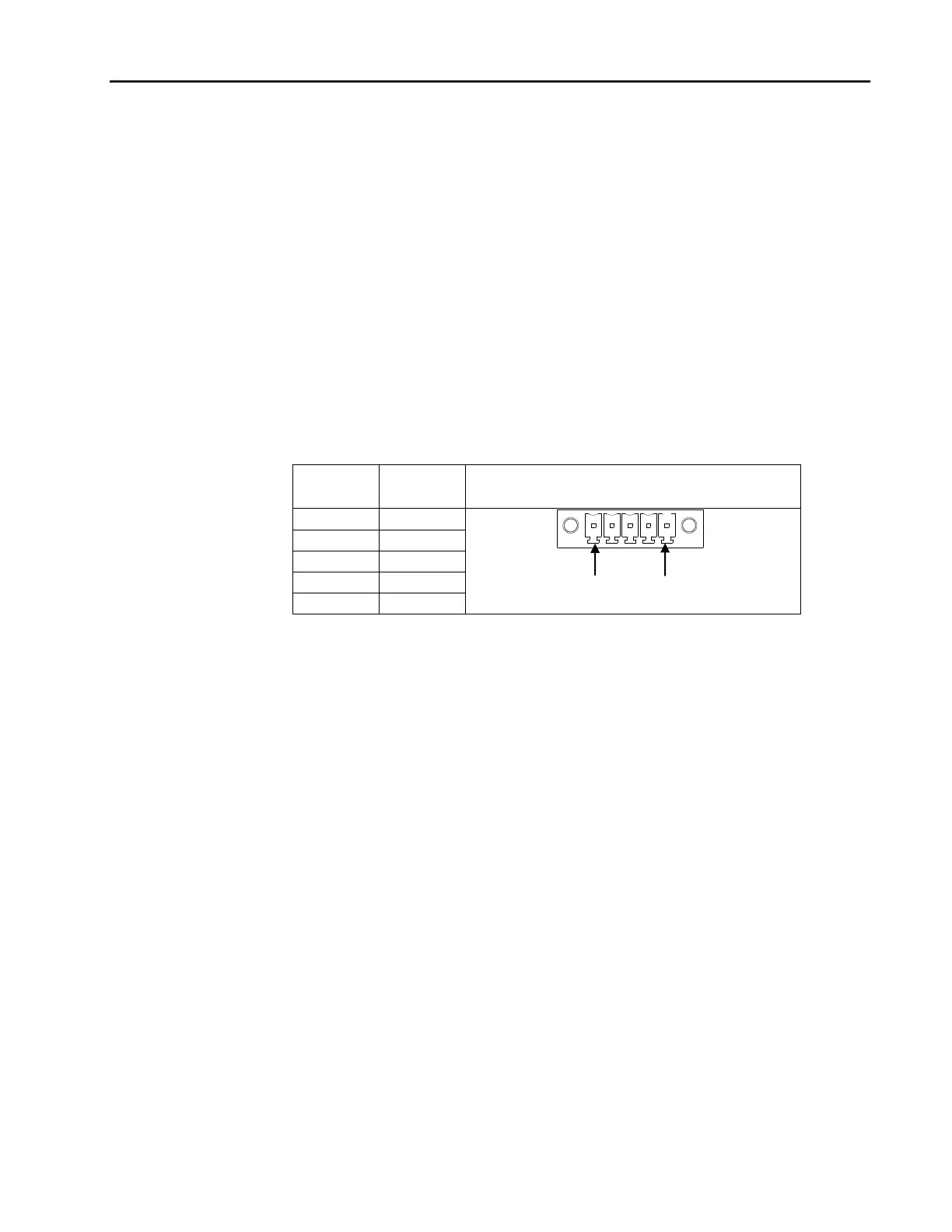

4.6.3 Serial Port
4.6.3.1 Serial Port Details
Interface: RS-232
Connectors: Euro Terminal (Tyco Electronics 284539-5 or Equivalent)
Mating Connector: (Tyco Electronics 284 510 or Equivalent)
4.6.4Universal Serial Bus (USB) Ports
4.6.4.1 USB Host Port Details
The QuickPanel+ has two full-speed USB 2.0 host ports. A variety of third-party USB
peripheral devices are available.
Each connected USB device requires a specific driver. The driver supplied with the
QuickPanel+ is for optional keyboard or mouse support; other devices require the installation
of custom driver software.
Interface: USB2.0
Number of Ports: Two
Connector: Type-A connector
