4.6.7 SD Card Slot
The QuickPanel+ is equipped with one standard SD Card port. SD/SDHC memory cards are
supported. The SD card slot is spring loaded for easy insertion and removal.
4.6.7.1 Storage Details
Connectors: SD card slot (push in - push out method)
Card support: SD / SDHC memory card
Maximum capacity: 32GB

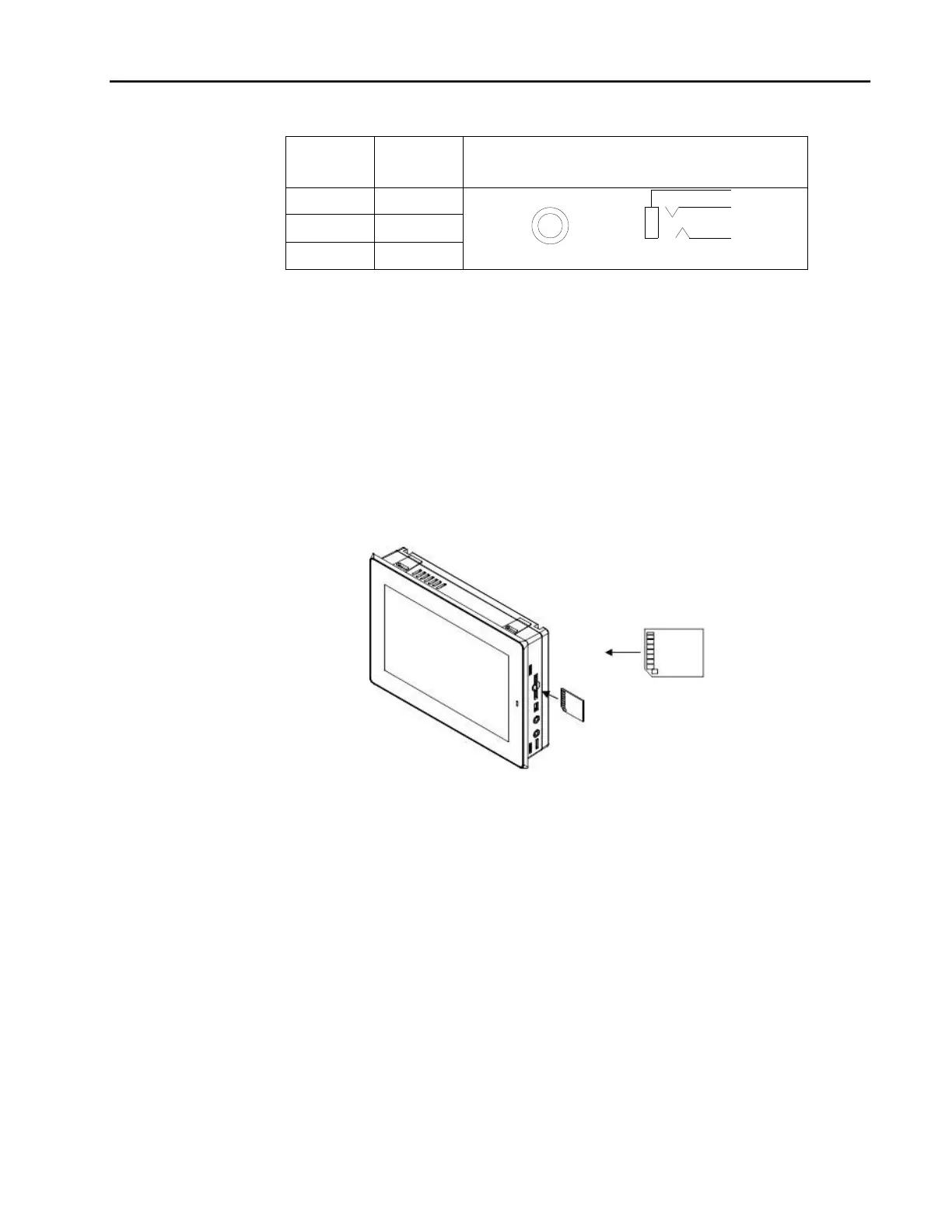

Note the orientation of the SD card in the diagram below when inserting.
