Chapter 1 Introduction
1.2 QuickPanel+ Hardware User Features
In addition to the primary touch screen interface, the QuickPanel+ supports a variety of

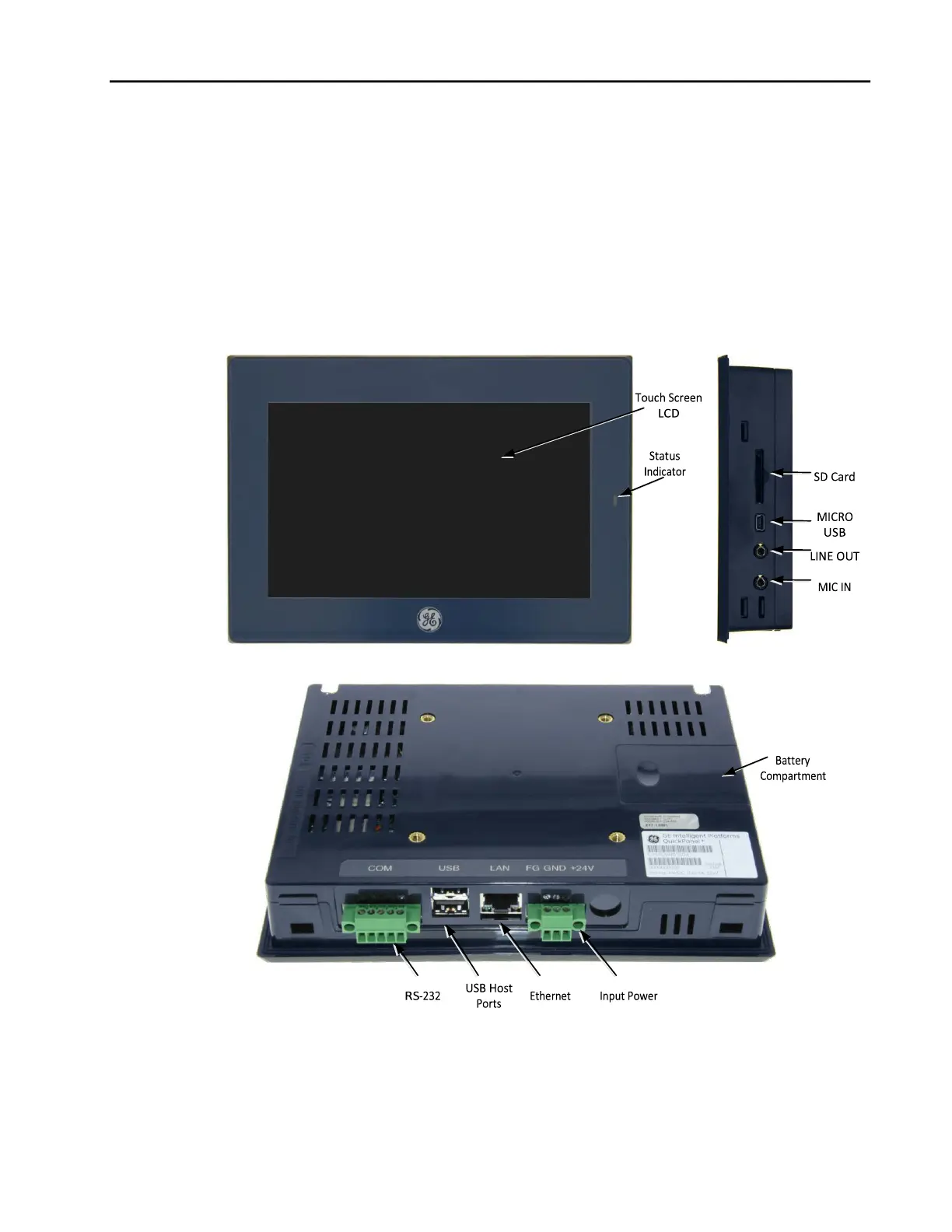

communication ports. The following diagrams show the physical layout of the QuickPanel+ including
locations of status LEDs, communications ports, and connectors.
1.2.1 Overview
Bottom
Figure 1. QuickPanel+ Hardware Features
Chapter 1. Introduction
Front
Right Side
