3-8-3 Select TCP/IP Screen
1.) Press Config (F2) and log on as adm, see 4-2-5 "Logging on to VIVID E9 / VIVID E7 as ‘ADM’" on
page 4-15.
2.) If not already selected, select Connectivity from the bottom row of “buttons” on the screen.
3.) Select the TCP/IP TAB (it is named Tcpip). The resulting screen gives you an overview of many of
the network settings for VIVID E9 / VIVID E7.
.

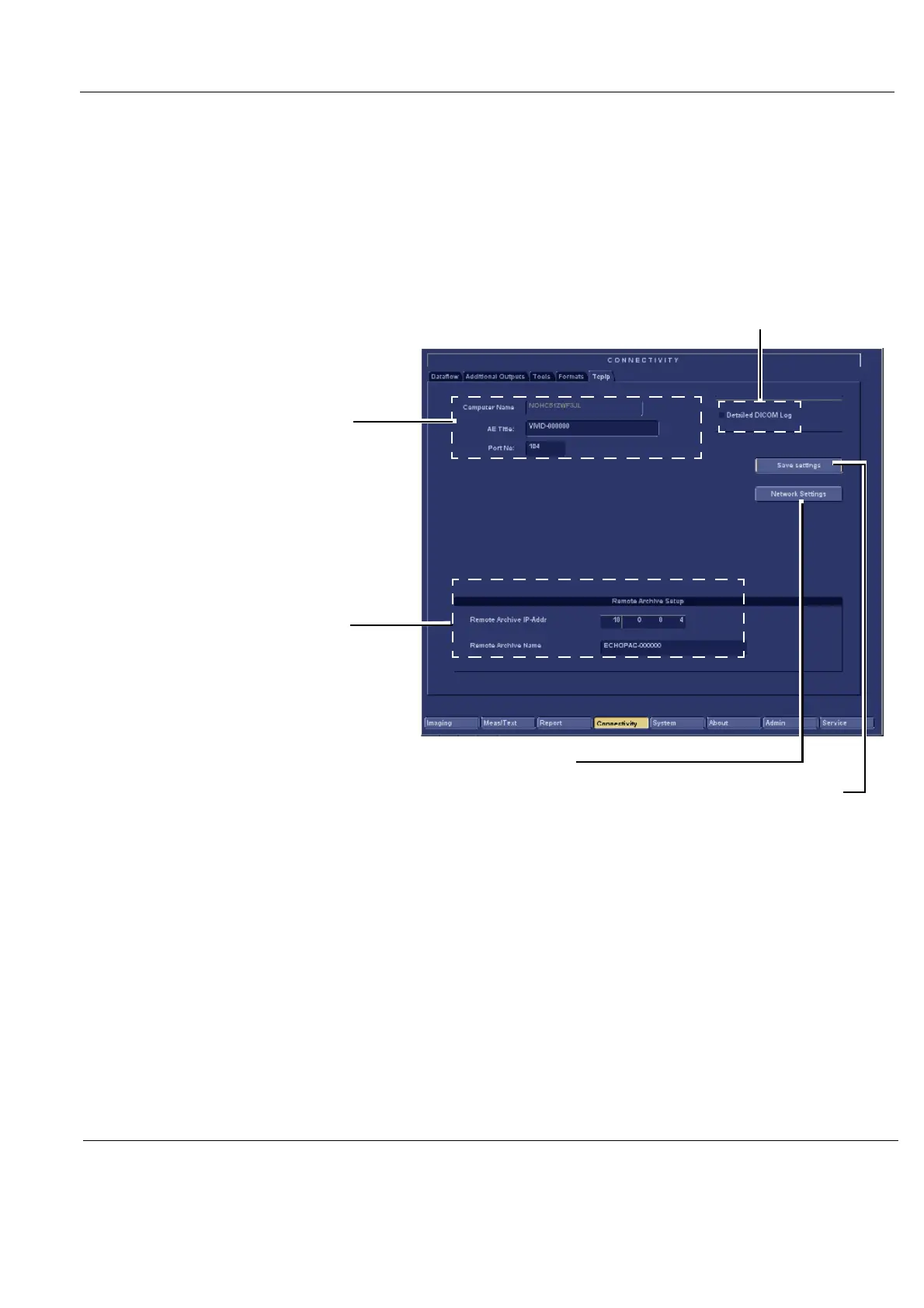

Figure 3-22 TCP/IP Overview screen for VIVID E9 / VIVID E7
COMPUTER NAME / AE TITLE:
FOR VIVID E9 / VIVID E7, THIS NAME IS ON
THE FORM: VIVIDX-00NNNN, WHERE
“00NNNN” IS A NUMBER (NNNN IS THE
SCANNER’S SERIAL NUMBER).
PORT NO:
DEFAULT PORT NUMBER: 104
REMOTE ARCHIVE SETUP AREA:
IP SETTINGS AREA FOR A REMOTE
ARCHIVE.
EXAMPLE: ECHOPAC PC (ECHOPAC7).
DEFAULT SETUP:
REMOTE ARCHIVE IP-ADDR: 10.0.0.4
REMOTE ARCHIVE NAME (THE NAME OF
THE PC OR SERVER WITH THE REMOTE
ARCHIVE): ECHOPAC7-000001
DETAILED DICOM LOG:
SELECT TO TURN DETAILED DICOM LOG ON.
(IT WILL BE TURNED OFF AFTER A RESTART)
NETWORK SETTINGS:
USE NETWORK SETTINGS IF YOU NEED
TO CHANGE VIVID E9 / VIVID E7’s IP
SETTINGS OR TURN DHCP ON OR OFF.
SAVE SETTINGS
SELECT SAVE SETTINGS TO
ARCHIVE ANY CHANGES YOU HAVE
DONE TO THE TCP/IP SETTINGS
