IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 9 - Renewal parts 9 - 45
Section 9-11
Front End Processor (FEP) Card Rack parts
9-11-1 Front End Processor Card Rack - BT’12 and XDclear (BT’13) with 2D
NOTE: For use in VIVID E9 with Part Number GB000075, GB000085, GB000090 and GB000095.
NOTE: For use in VIVID E7 with Part Number: GB000099 and GB000100.

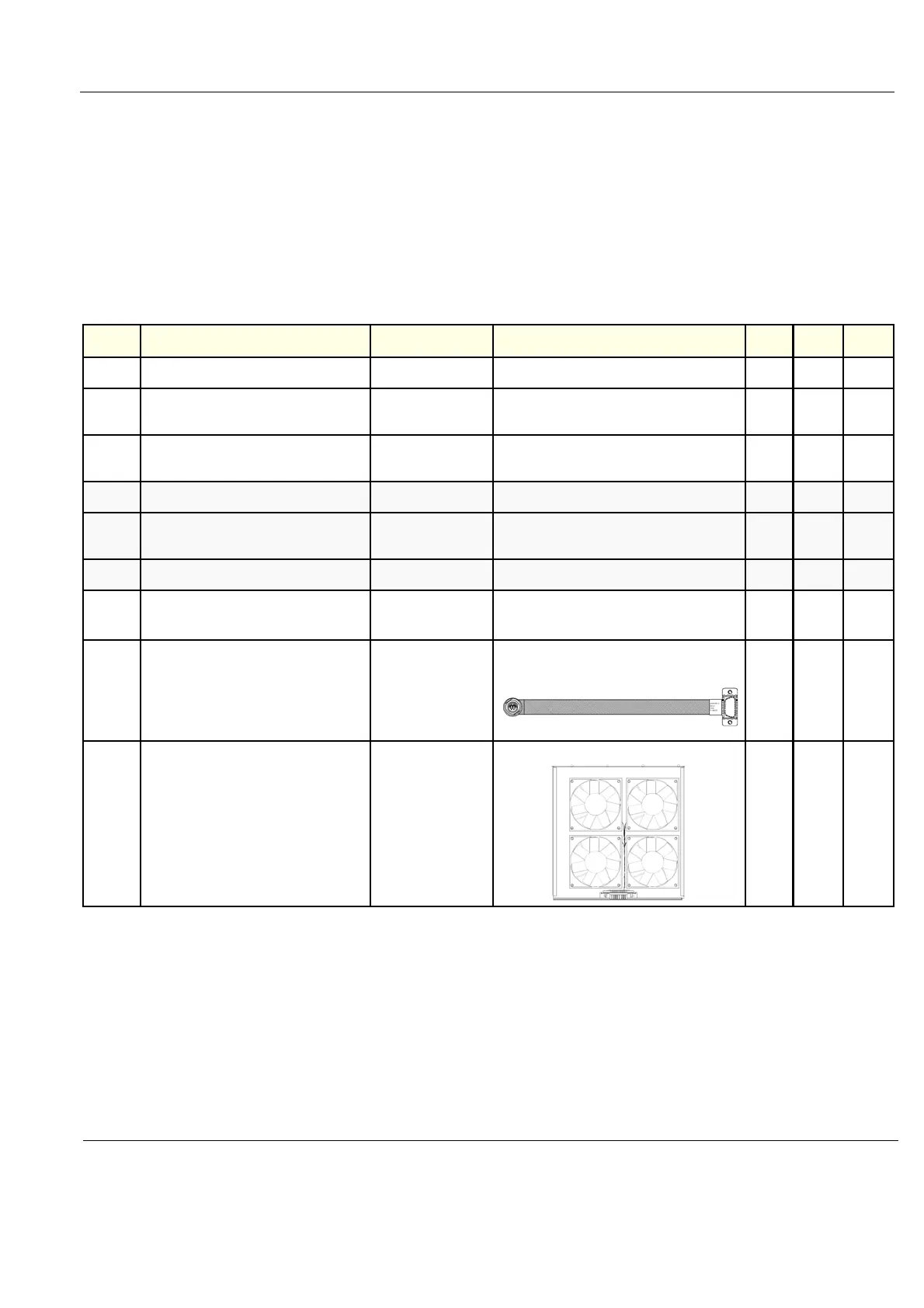

Table 9-21 Front End Processor Card Rack parts (2D)
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
1.
GRLY v2 GA200695
RELAY BOARD
1NY
2.
GRX64 GB200025
RECEIVER BOARD, 64 CHANNELS,
WITHOUT ANALOG DOPPLER
1NY
3.
GRX128 WITH CW GB200020
RECEIVER BOARD, 128 CHANNELS,
WITH ANALOG DOPPLER
1NY
4.
GTX-TLP192mkII GA200726-2
TRANSMITTER BOARD, 192 CHANNELS
1 N Y
5.
FRONT PLANE GA200760
USED IN BOTH UPPER AND LOWER
POSITION
2 N Y
6.
DRX6 MLA4 5301040-6
DIGITAL RECEIVER BOARD with 4 MLA
3 N Y
7.
GFI 2 5161631-3
RADIO FREQURENCY INTERFACE
1NY
8.
Cable Doppler MBD- Rot. ADPT. Box GA200536
Doppler Cable
1NY
9.
Fan Drawer Assy Complete GB200014 1NY
To Next Page
