IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
5 - 50 Section 5-9 - Back End Processor (BEP)
5-9-5 CPU/Back End Processor (BEP) - block diagram

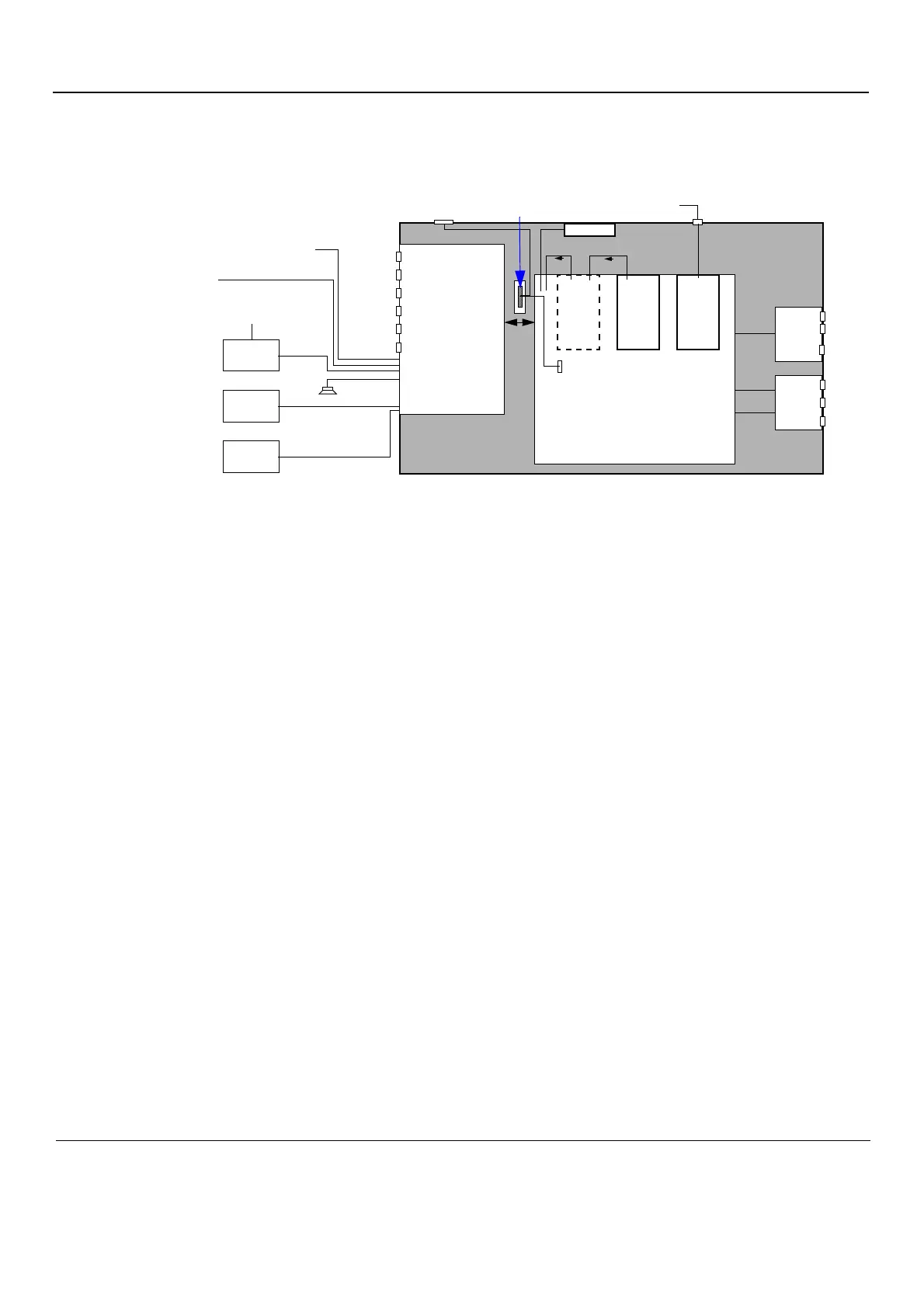

Figure 5-34 BEP6 block diagram
HDD
DVR
(OPTION)
GRAPHICS
ADAPTER
BEP6
POWER
BOARD
AUDIO L
AUDIO R
DVI-I
USB
USB
10/100/1000MbT
BW
PRINTER
DVD DRIVE
(DVR OPTION)
DVD DRIVE
WOOFER
USB
FROM MAIN
PWR SUPPLY
SATA
SATA
IO BOARD
MOTHERBOARD
LED
AUX
PHONO
ECG
BEP6
w
/4D and DVR
USB
POWER
PATIENT
IO
LED
LED
FRONT
PANEL
FROM
MAIN PWR SUPPLY
CONTROL SIGNAL TO
MAIN PWR SUPPLY
DVI Video, Audio, 2xUSB, 48V, Power ON/OFF switch, Safety GND,
Outer Boss Brake/Motor-Brake Commands
IPASS2
PCIE x1
TO GFI
FEP BACKPLANE CONNECTOR
