IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 5 - Components and functions (theory) 5 - 55
5-9-7-2 SATA distribution - BEP6
5-9-7-3 Use of Expansion Slots on BEP6 Motherboard
Use of Expansion Slots, listed from the rightmost slot:
• BEP 6.0 Power Board Assembly
• Graphics Adapter (Video Card)
• DVR Board (Optional)
• The I/O Board is plugged into a double slot on the left side of the notherboard.
5-9-8 Input DC Voltages
NOTE: The BEP is not connected to AC power.
The BEP gets it power supply via the BEP Power Supply.

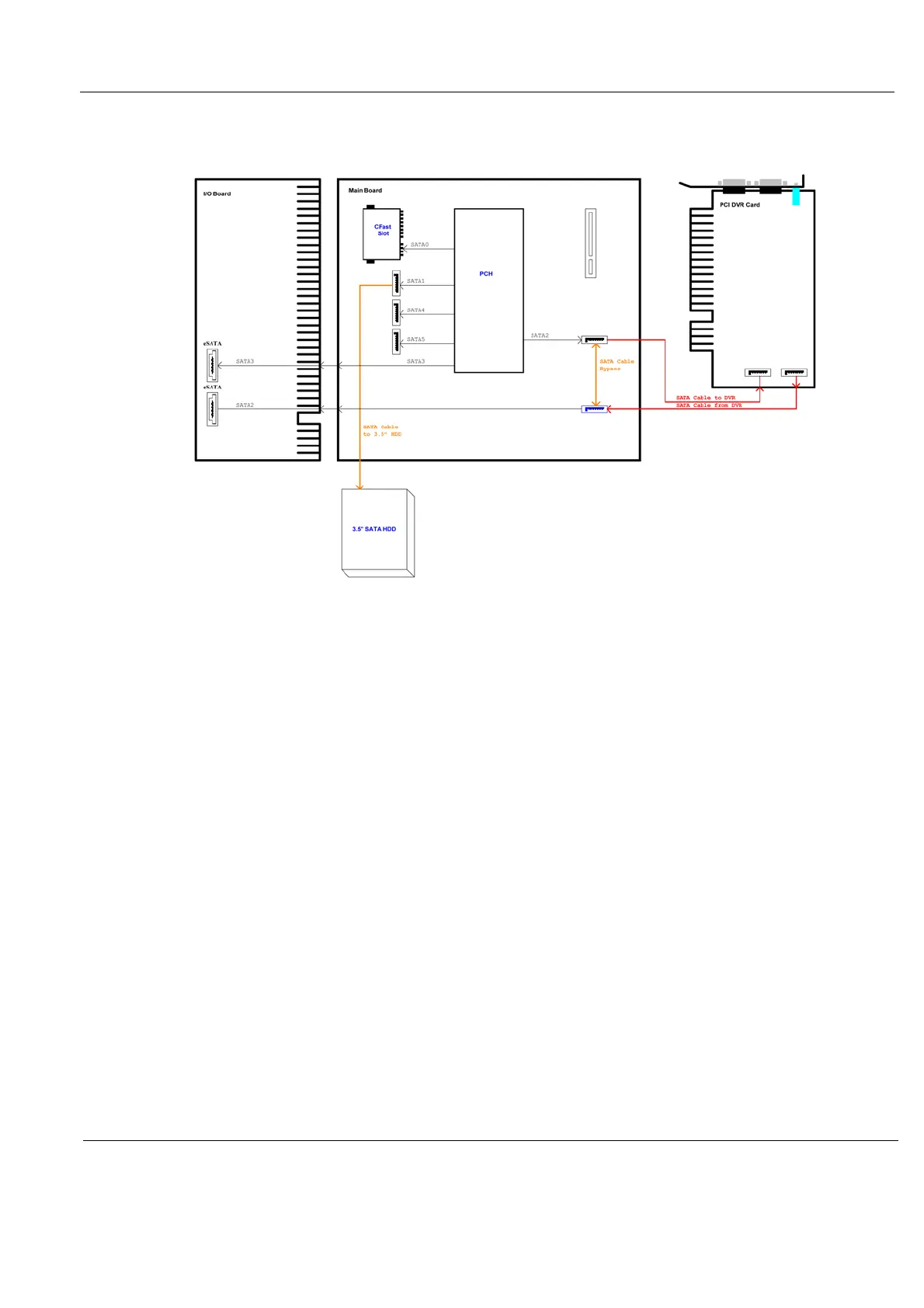

Figure 5-37 BEP6 - SATA distribution
