8 - 34 Section 8-5 - Replacing Covers and Bumpers
8-5-6-3 Front Cover installation
Follow these steps to install the Front Cover:
1.) Thread the Front Cover so it fits in between chassis and pedals.
2.) Align the Front Cover guide pins with holes in the frame.
3.) Fasten Front Cover with two (2 pc) screws and washers.
NOTE: Orientate the washers as illustrated in the detail in the figure below.
4.) Install the Foot Rest Bumper.
5.) Install the Top Cover.
6.) Install the Side Covers.

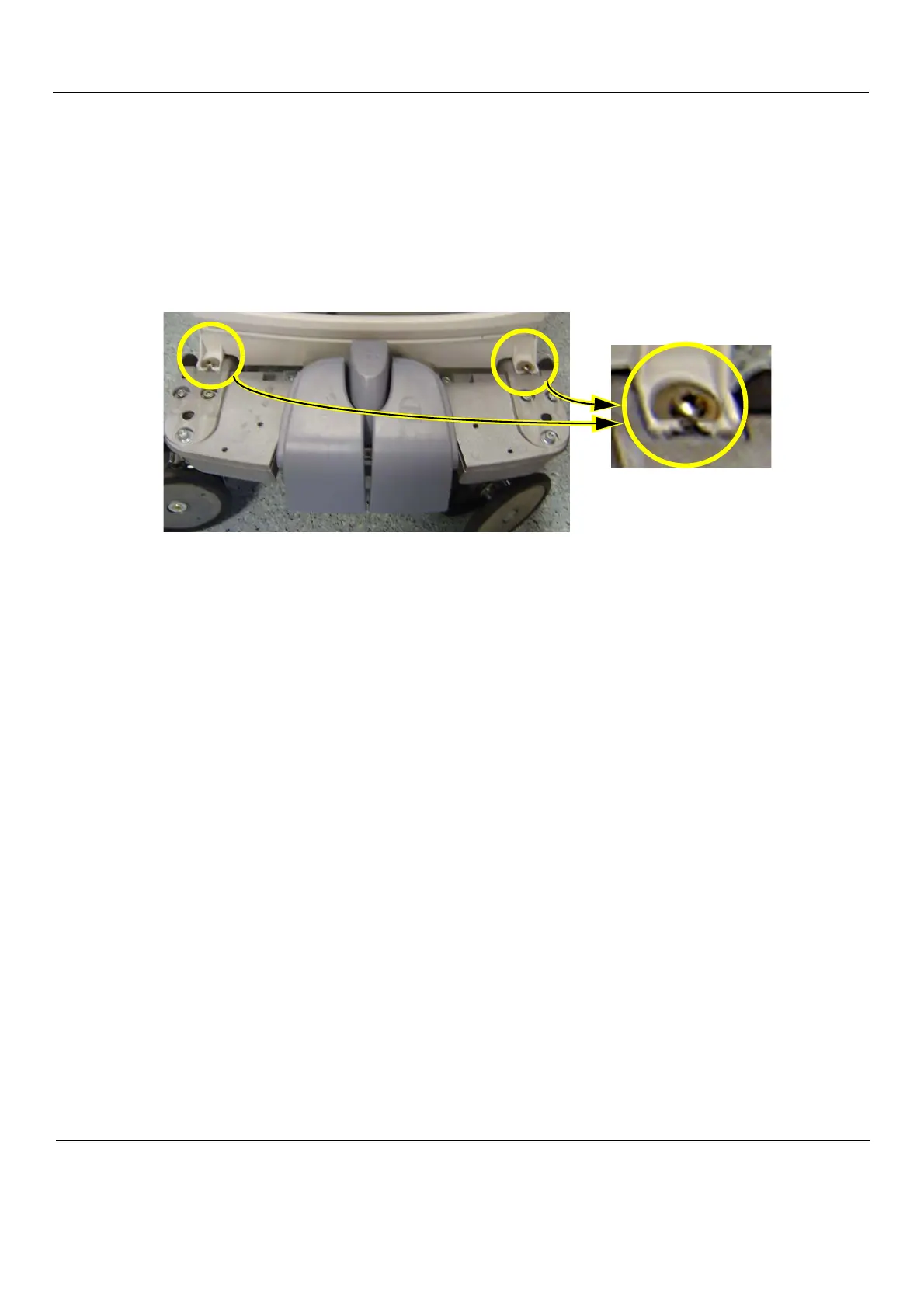

Figure 8-13 Fixing screws with washers
